003H6961

Part Number: 003H6961
003H6961
Manufacturer
Danfoss
Part number
003H6961
Category

Product Information

Extended Description

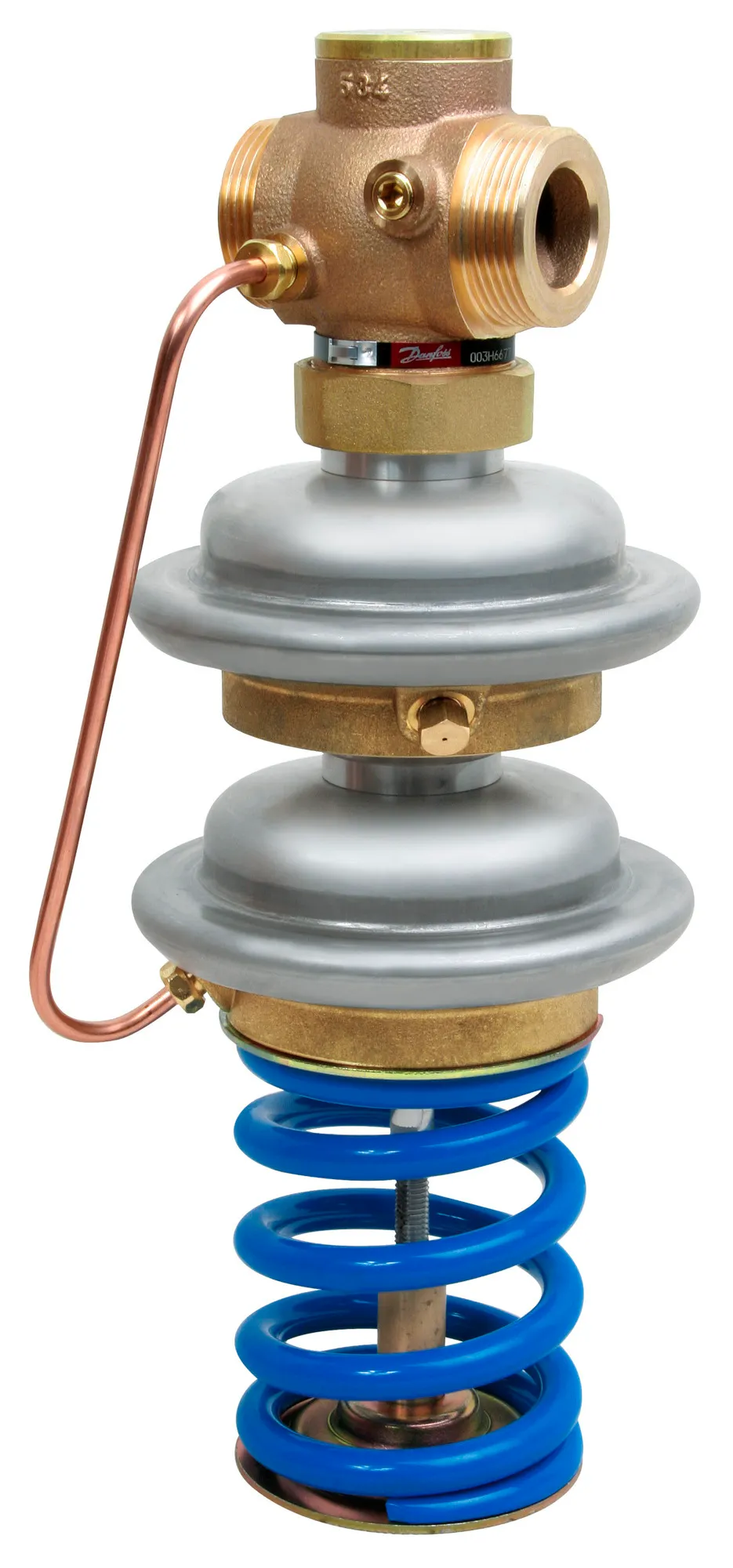

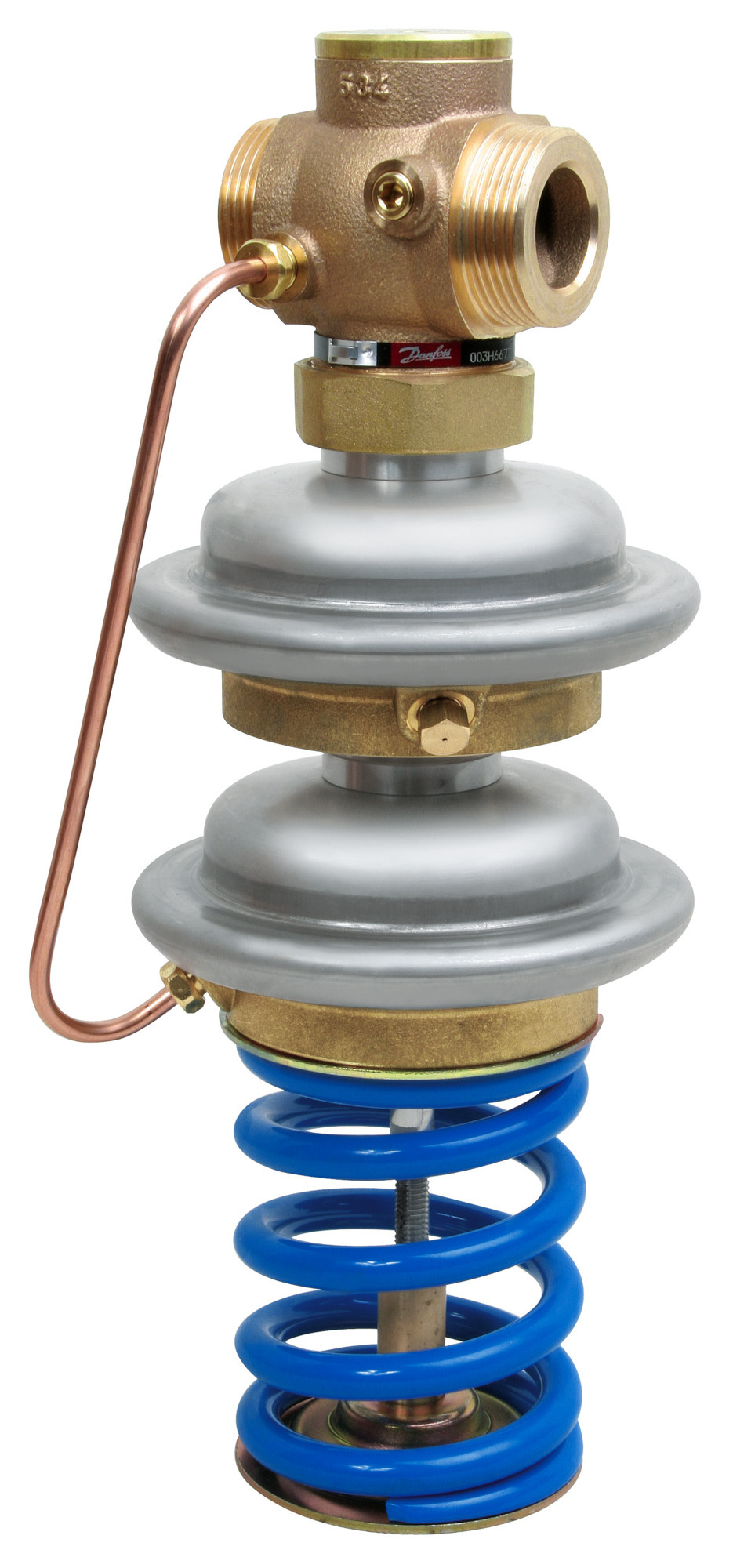

003H6961 Danfoss: SAVA PN25 20/6,3 2-7,5 thread bypass
Gross weight
6.739 Kilogram
Net weight
6.739 Kilogram
Volume
10.416 Liter
EAN
5710104031101
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.41
Cavitation factor 25%
0.69
Cavitation factor 50%
0.62
Cavitation factor 75%
0.6
China RoHS compliance
Out of scope
Connection size
G 1 A
Connection types
External Thread
Contain batteries
No
Description
SAVA PN25 20/6,3 2-7,5 thread bypass
Diameter [mm]
20 mm
Differential pressure range [bar] [Max]
20 bar
EU RoHS compliance
Yes with exemptions
Flow control
No
Flow limitation
No
Function
Safety press. relief controller (SĂśV)
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
6.3 mÂł/h
Leakage rate [% Kvs]
0.02
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Bypass
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
Yes
Pressure nominal [bar]
25 bar
Pressure setting range [bar] [Max]
7.5 bar
Pressure setting range [bar] [Min]
2 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally closed
Type
SAVA
UK RoHS compliance
Out of scope
Valve body material
Red bronze CuSn5ZnPb (Rg5)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 20
003H6846
Actuators and adjustment parts, For product type: SAVA, SAVD, 1.00 bar - 5.00 bar, 1.00 bar - 4.50 bar
003H6847
Actuators and adjustment parts, For product type: SAVA, SAVD, 3.00 bar - 11.00 bar, 3.00 bar - 11.00 bar
003H6903
Thread tailpieces, PN 25, DN 20, R 3/4; G 1, External Thread
003H6909
Weld-on tailpieces, PN 25, DN 20, G 1
003H6916
Flange tailpieces, PN 25, DN 20, G 1
