003H6974

Part Number: 003H6974
003H6974
Manufacturer
Danfoss
Part number
003H6974
Category

Product Information

Extended Description

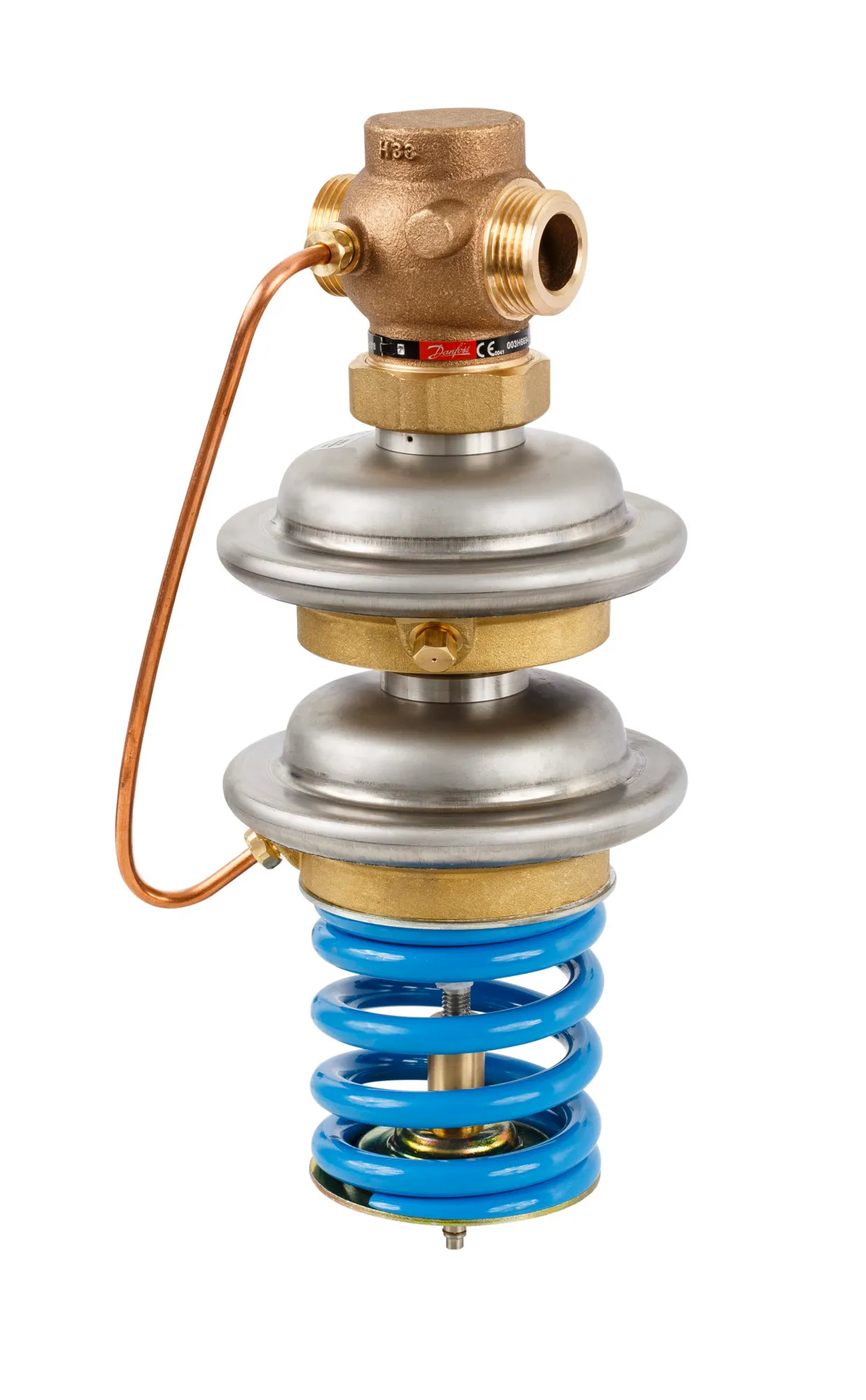

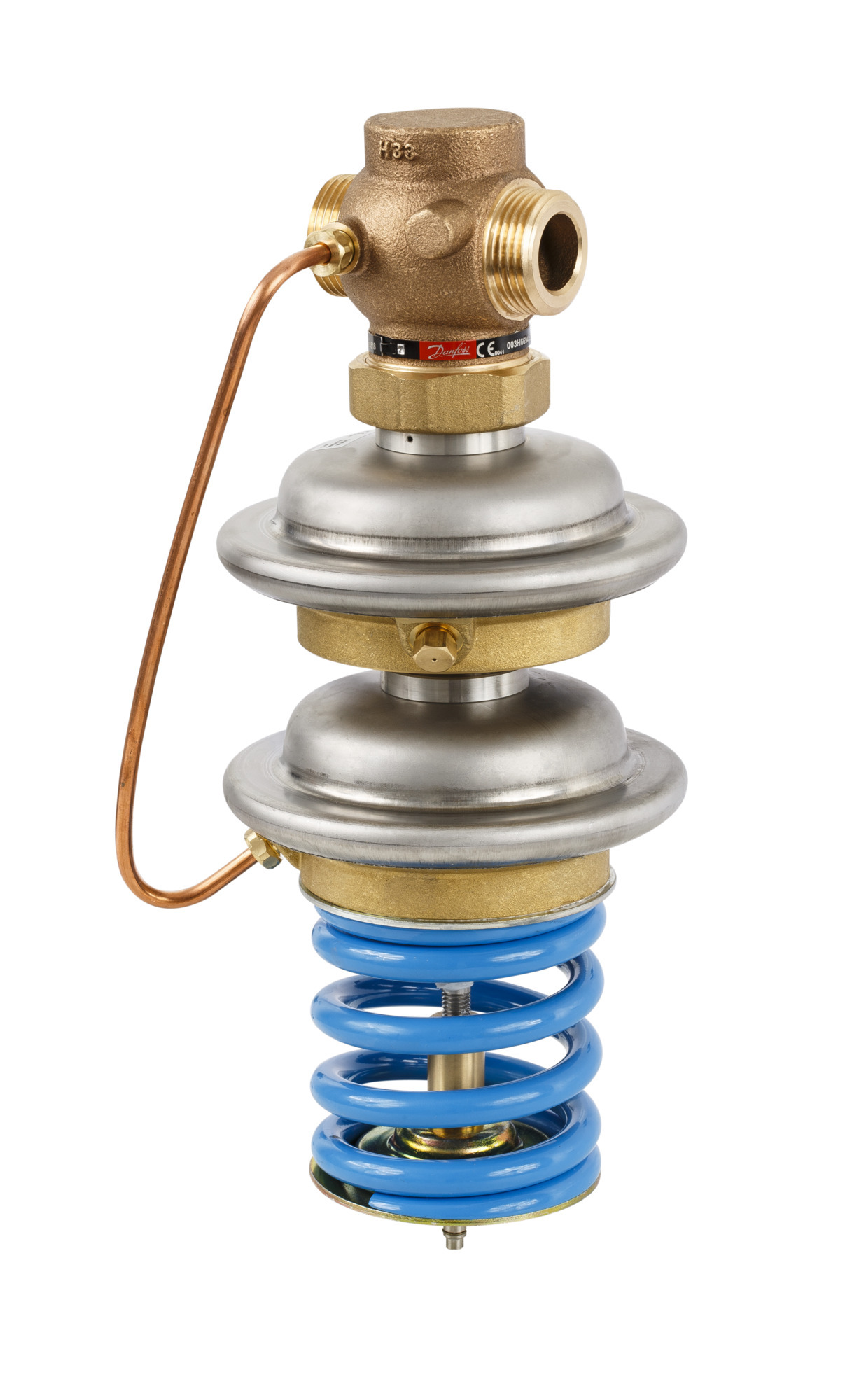

003H6974 Danfoss: SAVD PN25 50/20 2-8 thread flow/ret
Gross weight
10.545 Kilogram
Net weight
10.206 Kilogram
Volume
30.625 Liter
EAN
5710104031231
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
Cavitation factor 100%
0.34
Cavitation factor 25%
0.58
Cavitation factor 50%
0.52
Cavitation factor 75%
0.5
China RoHS compliance
Out of scope
Connection size
G 2 1/2 A
Connection types
External Thread
Contain batteries
No
Description
SAVD PN25 50/20 2-8 thread flow/ret
Diameter [mm]
50 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Yes with exemptions
Flow control
No
Flow limitation
No
Function
Safety press. reduction controller (SAV)
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
20 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
150 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
16
Pressure class
PN 25
Pressure controller
Yes
Pressure nominal [bar]
25 bar
Pressure setting range [bar] [Max]
8 bar
Pressure setting range [bar] [Min]
2 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing DP material
EPDM
Setting Type
Adjustable
Stem position
Normally open
Type
SAVD
UK RoHS compliance
Out of scope
Valve body material
Ductile iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone DP material
Dezincing free brass CuZn36Pb2As
Valve seat material
Stainless steel, mat. No. 1.4571
Valve size
DN 50
003H6846
Actuators and adjustment parts, For product type: SAVA, SAVD, 1.00 bar - 5.00 bar, 1.00 bar - 4.50 bar
003H6847
Actuators and adjustment parts, For product type: SAVA, SAVD, 3.00 bar - 11.00 bar, 3.00 bar - 11.00 bar
003H6876
Valve Inserts, For product type: VG, PN 25, DN 32
003H6913
Weld-on tailpieces, PN 25, DN 50, G 2 1/2
065B2005
Thread tailpieces, PN 25, DN 50, R 2, External Thread
