003H7080

Part Number: 003H7080
003H7080
Manufacturer
Danfoss
Part number
003H7080
Category

Product Information

Extended Description

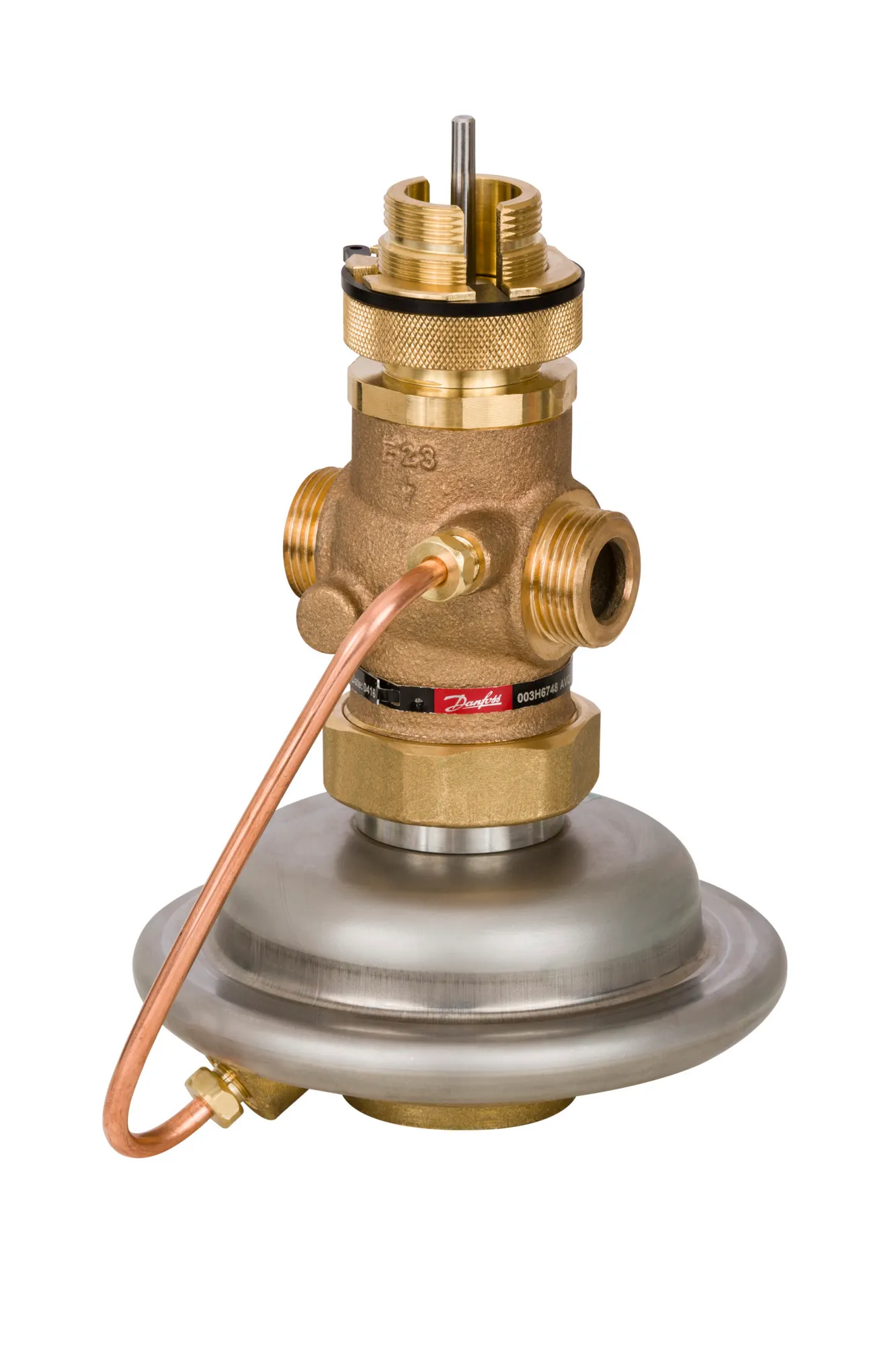

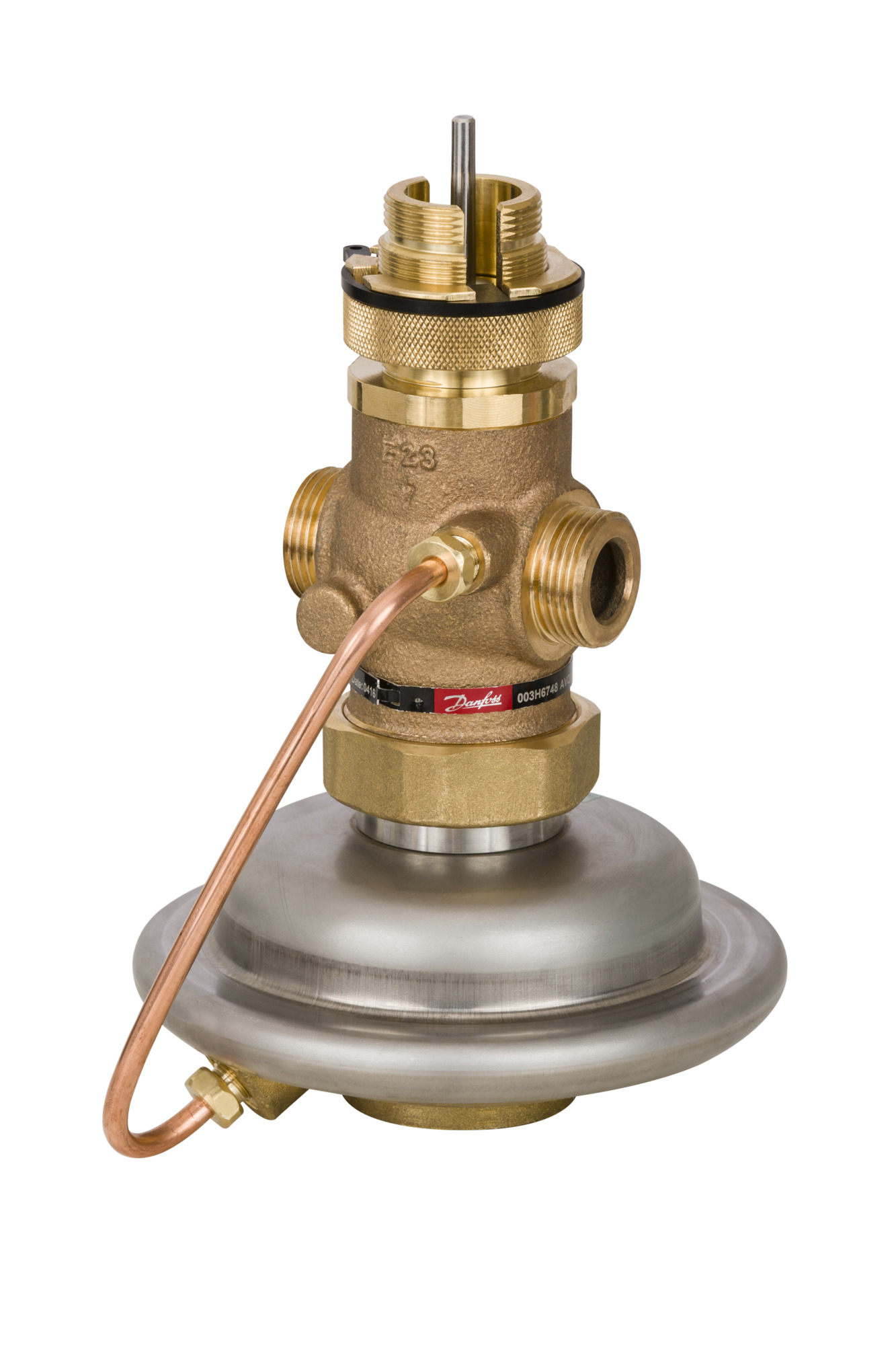

003H7080 Danfoss: Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
Gross weight
2.906 Kilogram
Net weight
2.906 Kilogram
Volume
9.59 Liter
EAN
5710104093918
Cavitation factor 100%
0.41
Cavitation factor 25%
0.69
Cavitation factor 50%
0.62
Cavitation factor 75%
0.6
China RoHS compliance
Out of scope
Contain batteries
No
EU RoHS compliance
Yes with exemptions
Flow rate [mÂł/h]
1.6 mÂł/h
Flow rate [mÂł/h] [Max]
1.6 mÂł/h
Flow rate [mÂł/h] [Min]
0.07 mÂł/h
Pressure class
PN 25
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Type
AVQM-W
UK RoHS compliance
Out of scope
Valve size
DN 15
003H6841
Actuators and adjustment parts, For product type: AVP-F, AVQ, AVQM, Mounting version: Return
003H6863
Valve Inserts, For product type: AV(P)QM (T), PN 25, DN 15
003H6988
Valve Inserts, For product type: AVQM, PN 25
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
003H6915
Flange tailpieces, PN 25, DN 15, G 3/4
065-0596
AVT, -10 °C - 40 °C, 170 mm, 5.0 m
065-0597
AVT, 20 °C - 70 °C, 170 mm, 5.0 m
065-0598
AVT, 40 °C - 90 °C, 170 mm, 5.0 m
065-0599
AVT, 60 °C - 110 °C, 170 mm, 5.0 m
065-0604
AVT (fast), 10 °C - 45 °C, 255 mm, 4.0 m
065-0605
AVT (fast), 35 °C - 70 °C, 255 mm, 4.0 m
065-0606
AVT (fast), 60 °C - 100 °C, 255 mm, 4.0 m
