003H7081
Part Number: 003H7081
Product Information
Extended Description

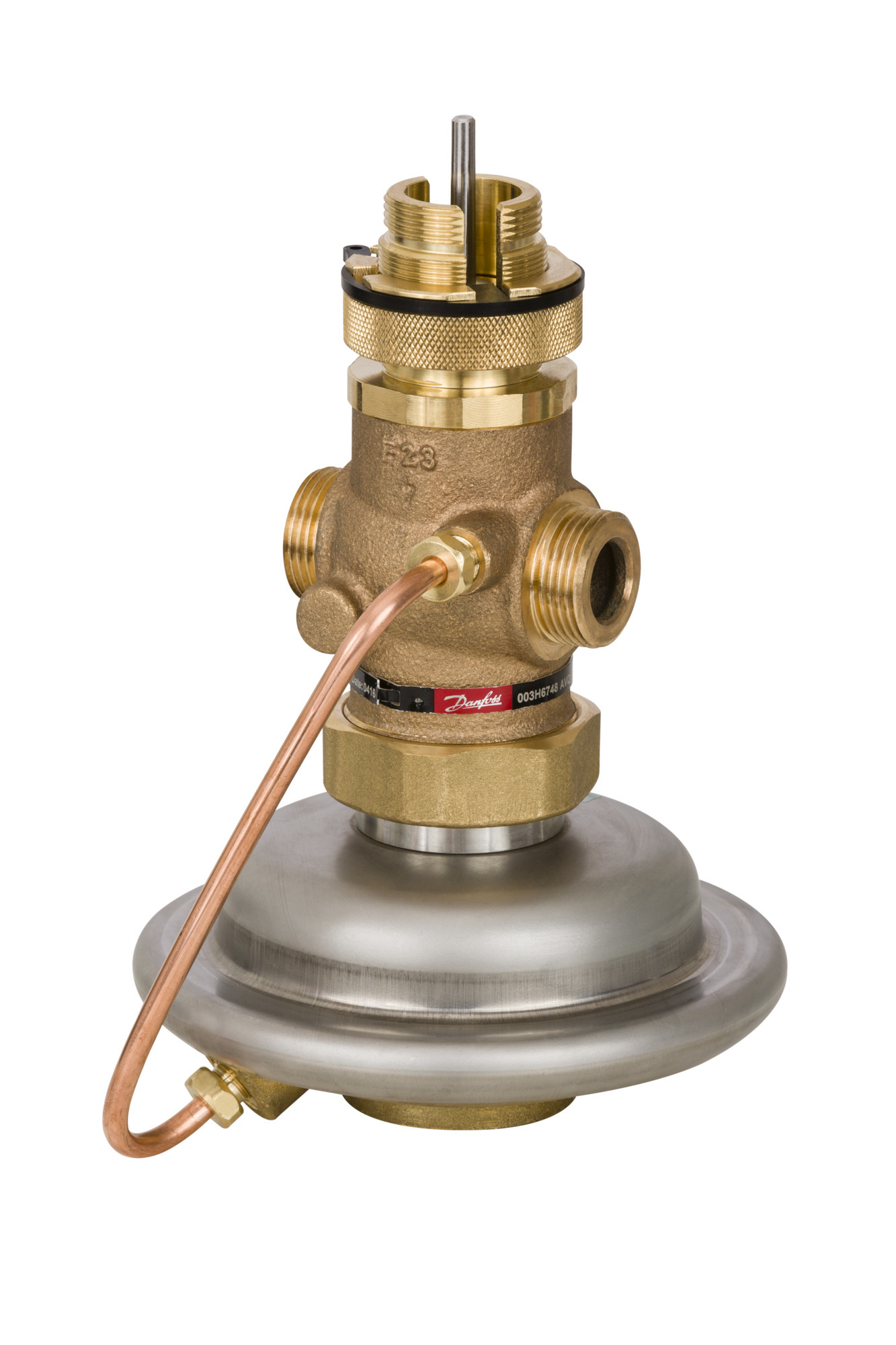

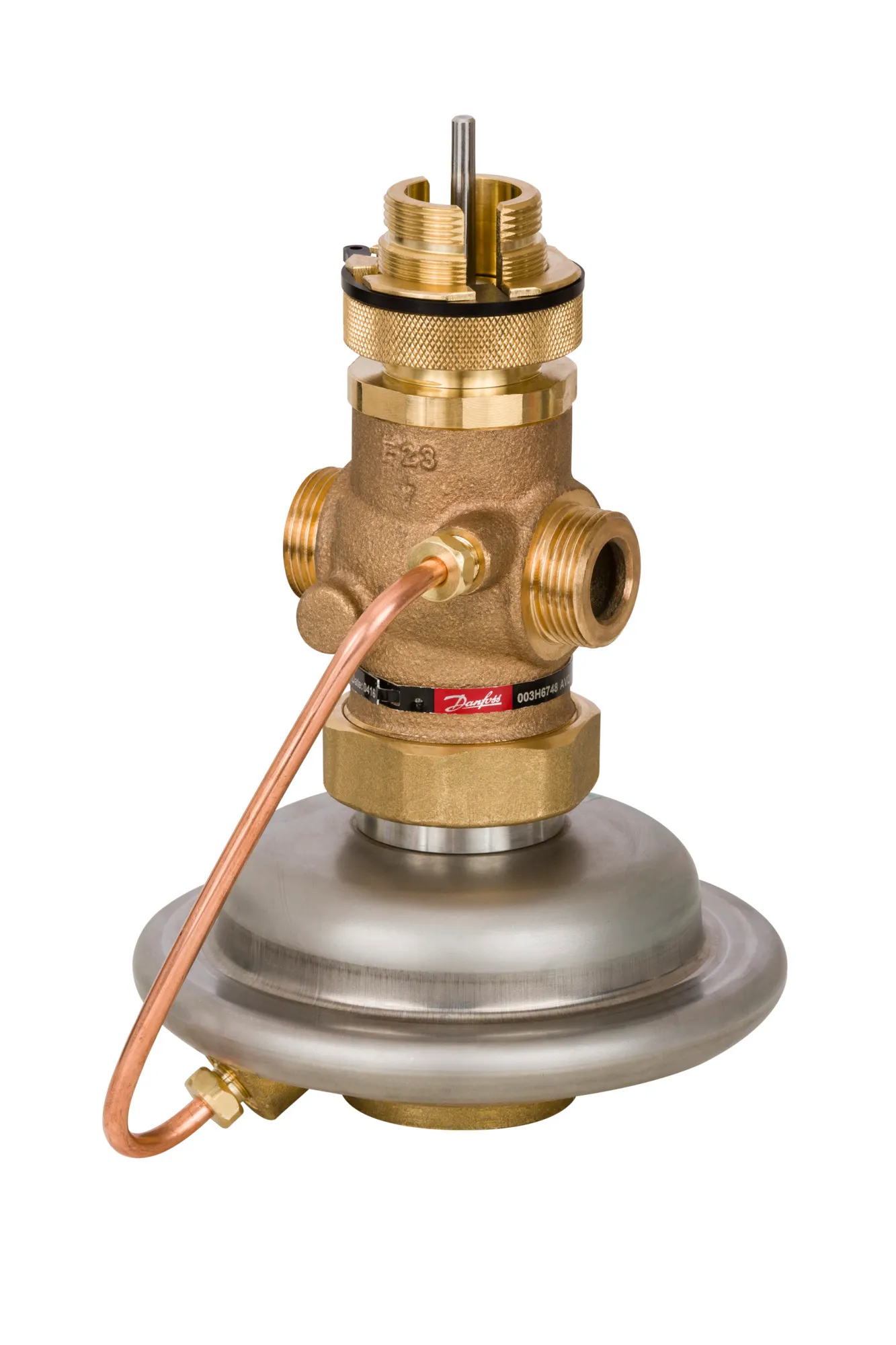

003H7081 Danfoss: Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
Gross weight
2.902 Kilogram
Net weight
2.902 Kilogram
Volume
9.296 Liter
EAN
5710104093925
Cavitation factor 100%
0.41
Cavitation factor 25%
0.69
Cavitation factor 50%
0.62
Cavitation factor 75%
0.6
China RoHS compliance
Out of scope
Contain batteries
No
EU RoHS compliance
Yes with exemptions
Flow rate [mÂł/h]
2.4 mÂł/h
Flow rate [mÂł/h] [Max]
2.4 mÂł/h
Flow rate [mÂł/h] [Min]
0.7 mÂł/h
Pressure class
PN 25
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Type
AVQM-W
UK RoHS compliance
Out of scope
Valve size
DN 15
003H6841
Actuators and adjustment parts, For product type: AVP-F, AVQ, AVQM, Mounting version: Return
003H6864
Valve Inserts, For product type: AV(P)QM (T), PN 25, DN 15
003H6989
Valve Inserts, For product type: AVQM, PN 25
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
003H6915
Flange tailpieces, PN 25, DN 15, G 3/4
065-0596
AVT, -10 °C - 40 °C, 170 mm, 5.0 m
065-0597
AVT, 20 °C - 70 °C, 170 mm, 5.0 m
065-0598
AVT, 40 °C - 90 °C, 170 mm, 5.0 m
065-0599
AVT, 60 °C - 110 °C, 170 mm, 5.0 m
065-0604
AVT (fast), 10 °C - 45 °C, 255 mm, 4.0 m
065-0605
AVT (fast), 35 °C - 70 °C, 255 mm, 4.0 m
065-0606
AVT (fast), 60 °C - 100 °C, 255 mm, 4.0 m
AVQM-WE, AVQMT-WE
How to avoid pressure oscillations in district heating systems
Hydraulic balance in a district cooling system
Hydraulic balance in a district heating system
Improved temperature control and hydronic balance for your benefit
Save energy with efficient and safe steam distribution
Track down and solve any hydronic imbalance with self acting controls
Hydraulic balancing reduces refrigerations costs significantly
AVQM-WE, AVQMT-WE (new neck)
Danfoss EU 230530EN0858104.05
Actuators pressure flow and temperature
Danfoss UK 230612EN0856102.02
Self-acting flow controller with integrated control valve (AVQM PN25 thread)
