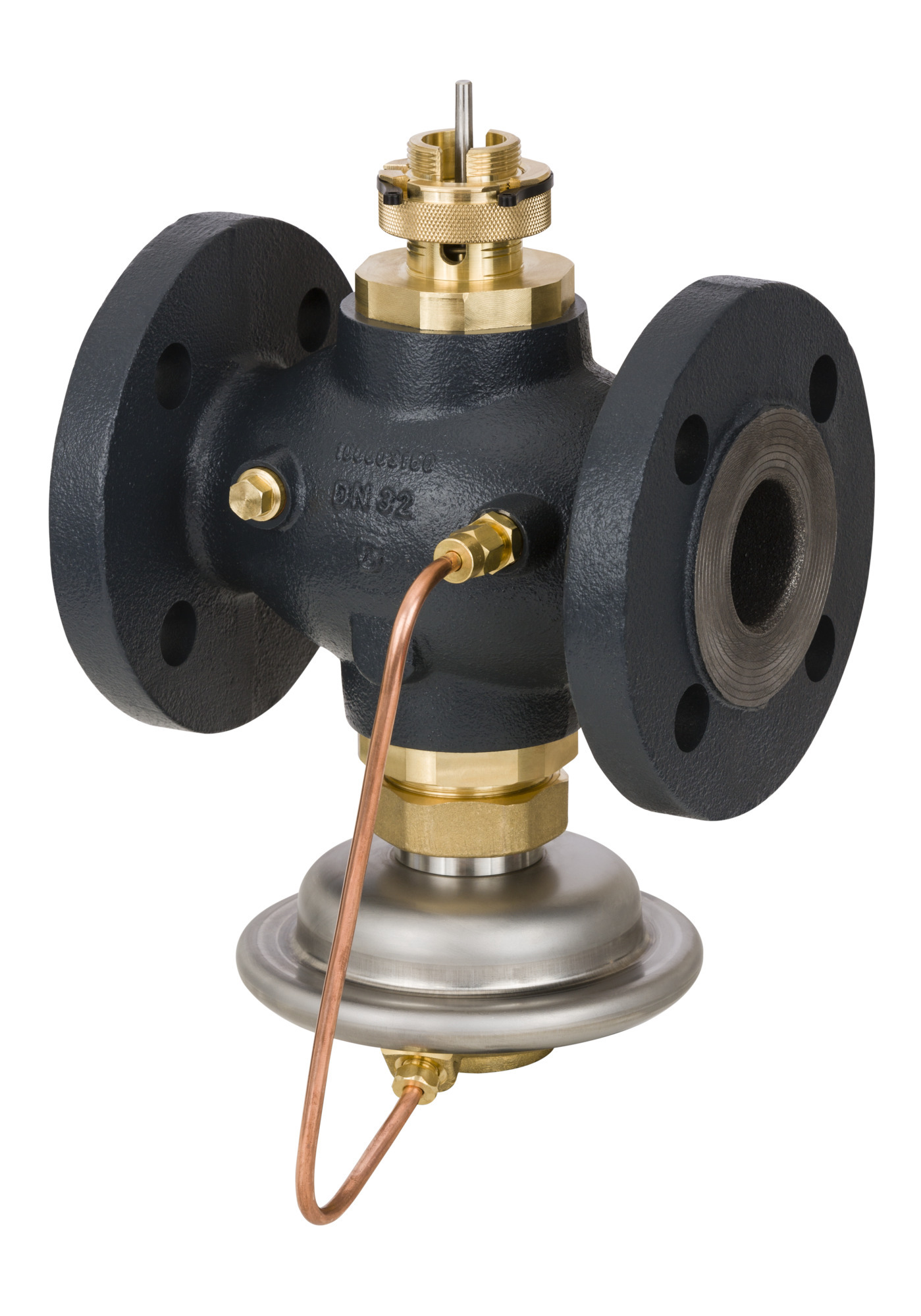

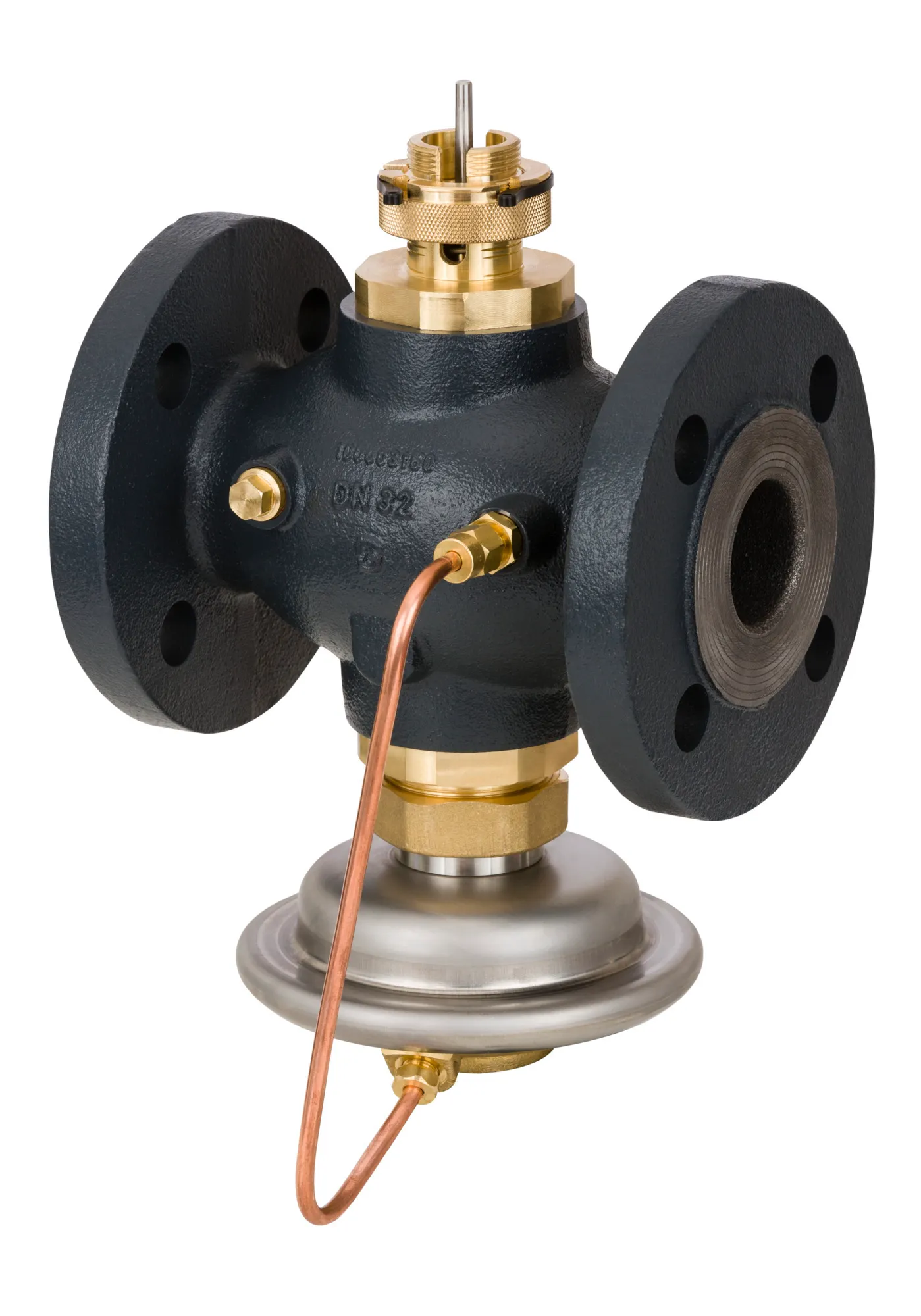

003H7089

Part Number: 003H7089
003H7089
Manufacturer
Danfoss
Part number
003H7089
Category

Product Information

Extended Description

003H7089 Danfoss: AVT, -10 °C - 40 °C, 170 mm, 5.0 m
Gross weight
11.8 Kilogram
Net weight
11.8 Kilogram
Volume
14.573 Liter
EAN
5710104094007
Cavitation factor 100%
0.34
Cavitation factor 25%
0.58
Cavitation factor 50%
0.52
Cavitation factor 75%
0.5
China RoHS compliance
Out of scope
Connection types
Flange
Contain batteries
No
EU RoHS compliance
Yes with exemptions
Flow rate [mÂł/h]
10.5 mÂł/h
Flow rate [mÂł/h] [Max]
10.5 mÂł/h
Flow rate [mÂł/h] [Min]
0.8 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Kvs values [mÂł/h]
20 mÂł/h
Pressure class
PN 25
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Type
AVQM-W
UK RoHS compliance
Out of scope
Valve size
DN 40
003H6841
Actuators and adjustment parts, For product type: AVP-F, AVQ, AVQM, Mounting version: Return
003H6868
Valve Inserts, For product type: AV(P)QM (T), PN 25, DN 32
003H6992
Valve Inserts, For product type: AVQM, PN 25
065-0596
AVT, -10 °C - 40 °C, 170 mm, 5.0 m
065-0597
AVT, 20 °C - 70 °C, 170 mm, 5.0 m
065-0598
AVT, 40 °C - 90 °C, 170 mm, 5.0 m
065-0599
AVT, 60 °C - 110 °C, 170 mm, 5.0 m
065-0604
AVT (fast), 10 °C - 45 °C, 255 mm, 4.0 m
065-0605
AVT (fast), 35 °C - 70 °C, 255 mm, 4.0 m
065-0606
AVT (fast), 60 °C - 100 °C, 255 mm, 4.0 m
065-0607
AVT (fast), 85 °C - 125 °C, 255 mm, 4.0 m
065-0608
STM, 30 °C - 110 °C, 210 mm, 5.0 m
065-0609
STM, 20 °C - 75 °C, 210 mm, 5.0 m
