003L0354
Part Number: 003L0354
Product Information
Extended Description

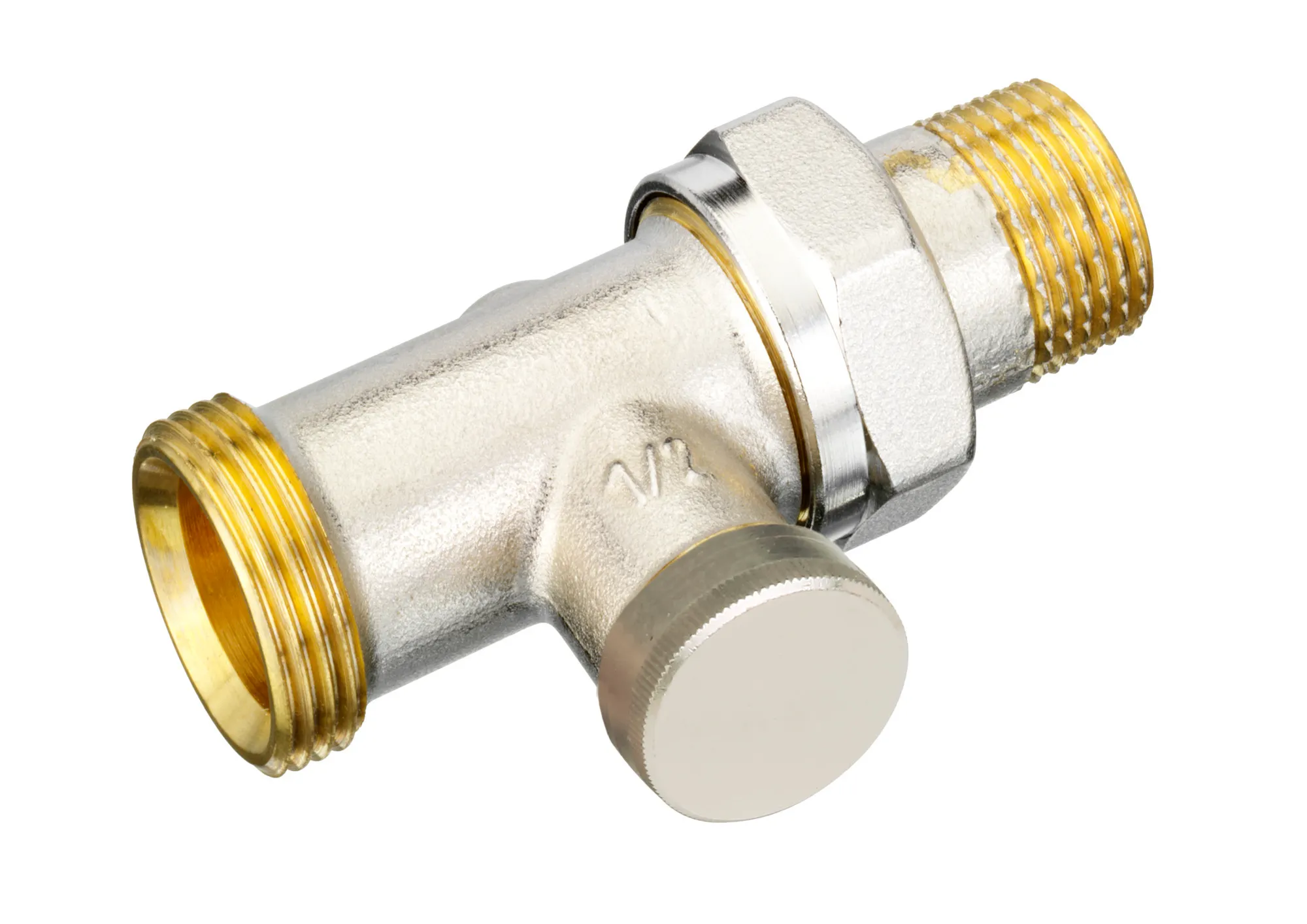

003L0354 Danfoss: Lockshield with external thread valve body
Gross weight
0.2 Kilogram
Net weight
0.2 Kilogram
Volume
0.261 Liter
EAN
5702420048338
China RoHS compliance
Out of scope
Connection to radiator
G 3/4 A
Connection to system
Rp 1/2
Connection types
External Thread
Contain batteries
No
Description
Lockshield with external thread valve body
Design
Straight
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Finish
Nickel plated
Flow temperature [=C2=B0C] [Max]
120 =C2=B0C
Kvs values [m=C2=B3/h]
2.2 m=C2=B3/h
Label product
Yes
Product group
Lockshield Valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
ccf6768c-3bf8-44da-946b-1ea15d43011e
SCIP dossier product name
RLV-S Lock shield 2
Surface
Nickel plated
Tailpiece type
Standard
Test pressure [bar]
16 bar
Type
RLV-S
UK RoHS compliance
Out of scope
Valve size
DN 15
Working pressure [bar] [Max]
10 bar
Mounting Danfoss Radiator Valves
Lockshield valve type RLV-D & RLV-S
Lockshield valve type RLV-S
RLV-S lockshield valves (metric thread)
Instructions for RLV-S
RLV-B installation guide
RLV-S self seal
Cancellation of Wave 4
New RLV-S valves with metrical thread and noise reduction tailpiece
Warranty certificate_10 years warranty
RLV-S
Danfoss MD VJLXA102.05
RLV-S DN15 Straight Standard
RLV-S DN15 Straight Standard
RLV-S_Straight_DN15_Ext_003L0354_STEP
RLV-S_Straight_DN15_Ext_003L0354_
RLV-S_Straight_DN15_Ext_003L0354_2D
RLV-S_Straight_DN15_External_RFA
