003L1835
Part Number: 003L1835
Product Information
Extended Description

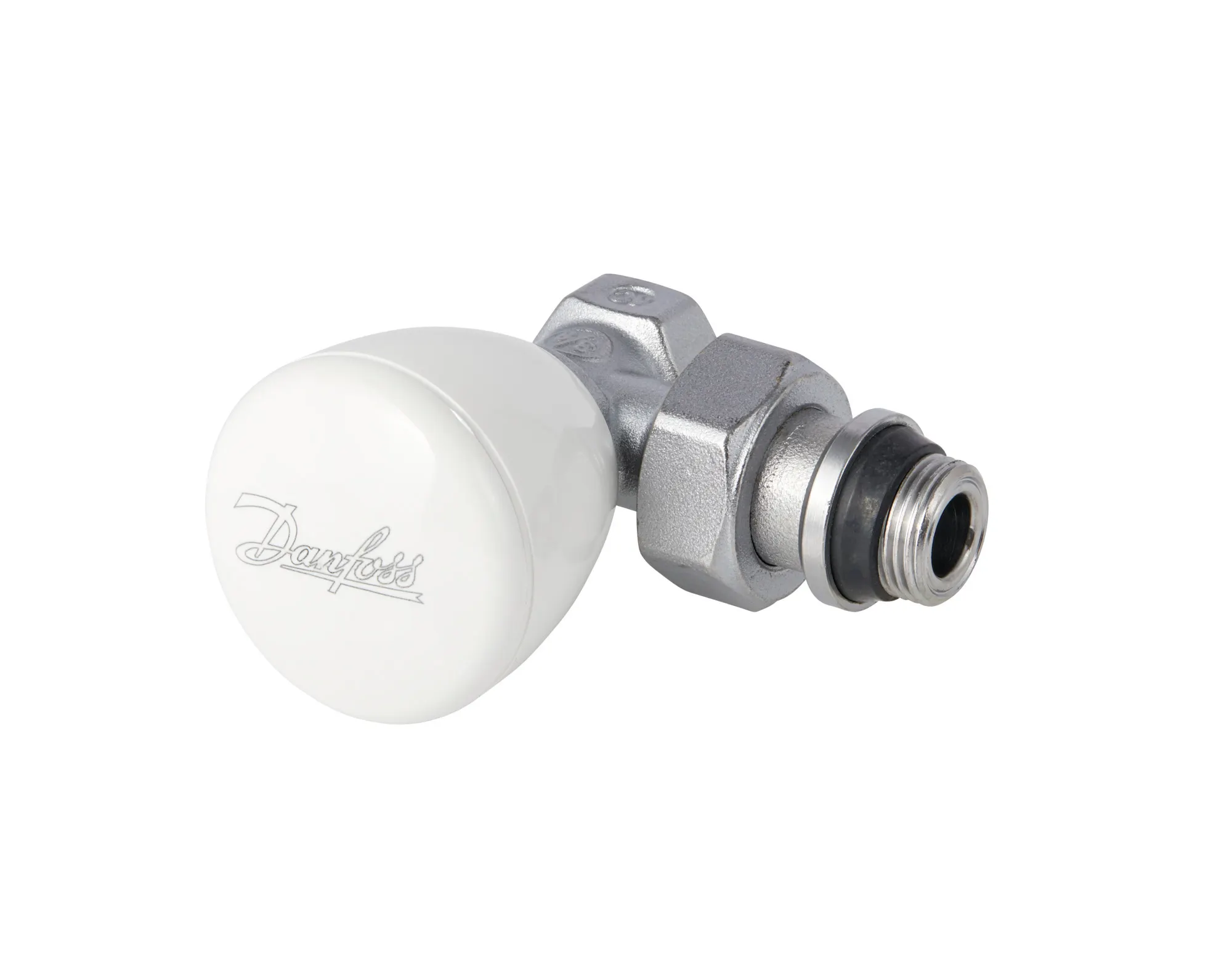

003L1835 Danfoss: Manual radiator valve, with no room temperature regulation
Gross weight
0.199 Kilogram
Net weight
0.199 Kilogram
Volume
0.194 Liter
EAN
5702425125188
Application
2-pipe system
Connection size in
G 3/8
Connection size out
R 3/8
Connection types
Internal thread
Contain batteries
No
Description
Manual radiator valve, with no room temperature regulation
Design
Angle
Differential pressure range [bar] [Max]
0.6 bar
Finish
Nickel plated
Flow temperature [°C] [Max]
110 °C
Kvs values [m³/h]
2.46 m³/h
Label product
Yes
Presetting
no
Product group
Radiator Valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Tailpiece type
Standard
Test pressure [bar]
16 bar
Type
MAV
Valve size
DN 10
Valve type
Manual
Working pressure [bar] [Max]
10 bar
