003L1836
Part Number: 003L1836
Product Information
Extended Description

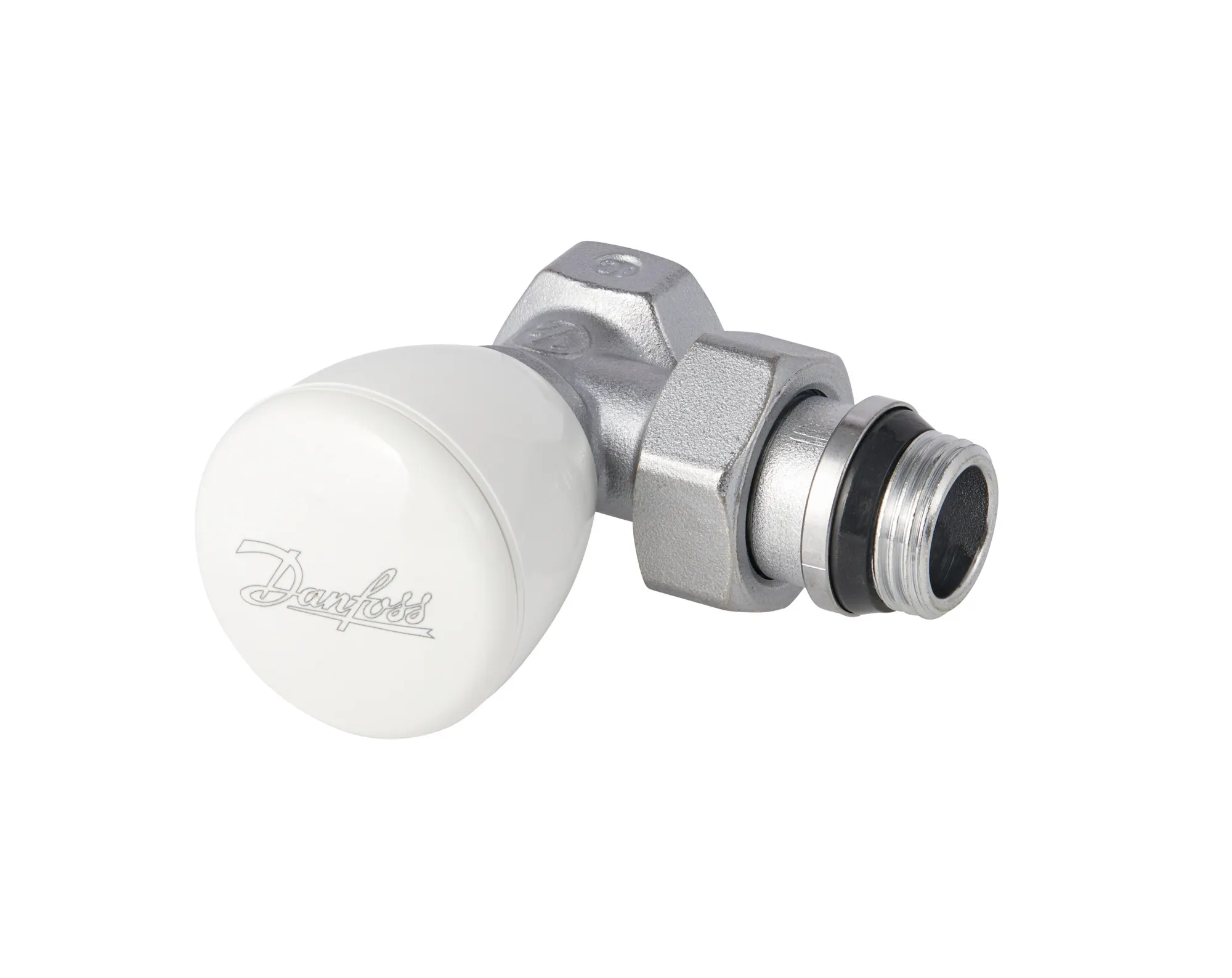

003L1836 Danfoss: Manual radiator valve, with no room temperature regulation
Gross weight
0.236 Kilogram
Net weight
0.236 Kilogram
Volume
0.218 Liter
EAN
5702425125218
Application
2-pipe system
Connection size in
G 1/2
Connection size out
R 1/2
Connection types
Internal thread
Contain batteries
No
Description
Manual radiator valve, with no room temperature regulation
Design
Angle
Differential pressure range [bar] [Max]
0.6 bar
Finish
Nickel plated
Flow temperature [°C] [Max]
110 °C
Kvs values [mÂł/h]
2.88 mÂł/h
Label product
Yes
Presetting
no
Product group
Radiator Valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Tailpiece type
Standard
Test pressure [bar]
16 bar
Type
MAV
Valve size
DN 15
Valve type
Manual
Working pressure [bar] [Max]
10 bar
Dynamic Valve - Building owner brochure
Dynamic Valve - Designer and installer brochure
Product Overview - Radiator thermostats
Case story Dynamic Valve™ Sonderborg State school
Engineering Tomorrow lowers apartments’ heating cost to less than $50 annually
Cancellation of old RA-G valve and Various RTD products
MAV
MAV 003L1836 Radiator Valves_L
MAV 003L1836 Radiator Valves_F
MAV 003L1836 Radiator Valves_R
MAV_Angle_DN15_003L1836_3D
MAV_Angle_DN15_003L1836_2D
MAV_Angle_DN15_003L1836_STEP
