003L3520
Part Number: 003L3520
Product Information
Extended Description

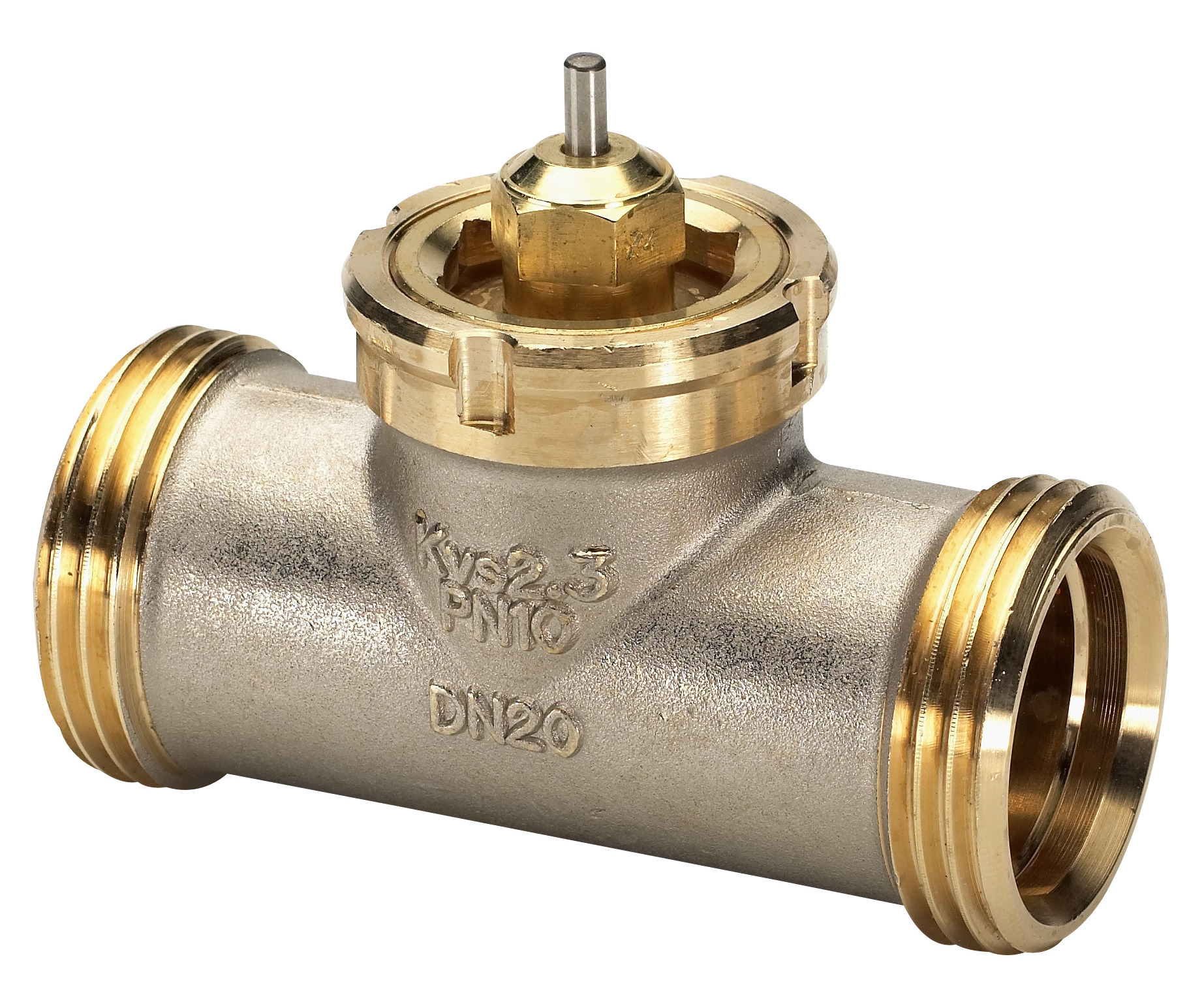

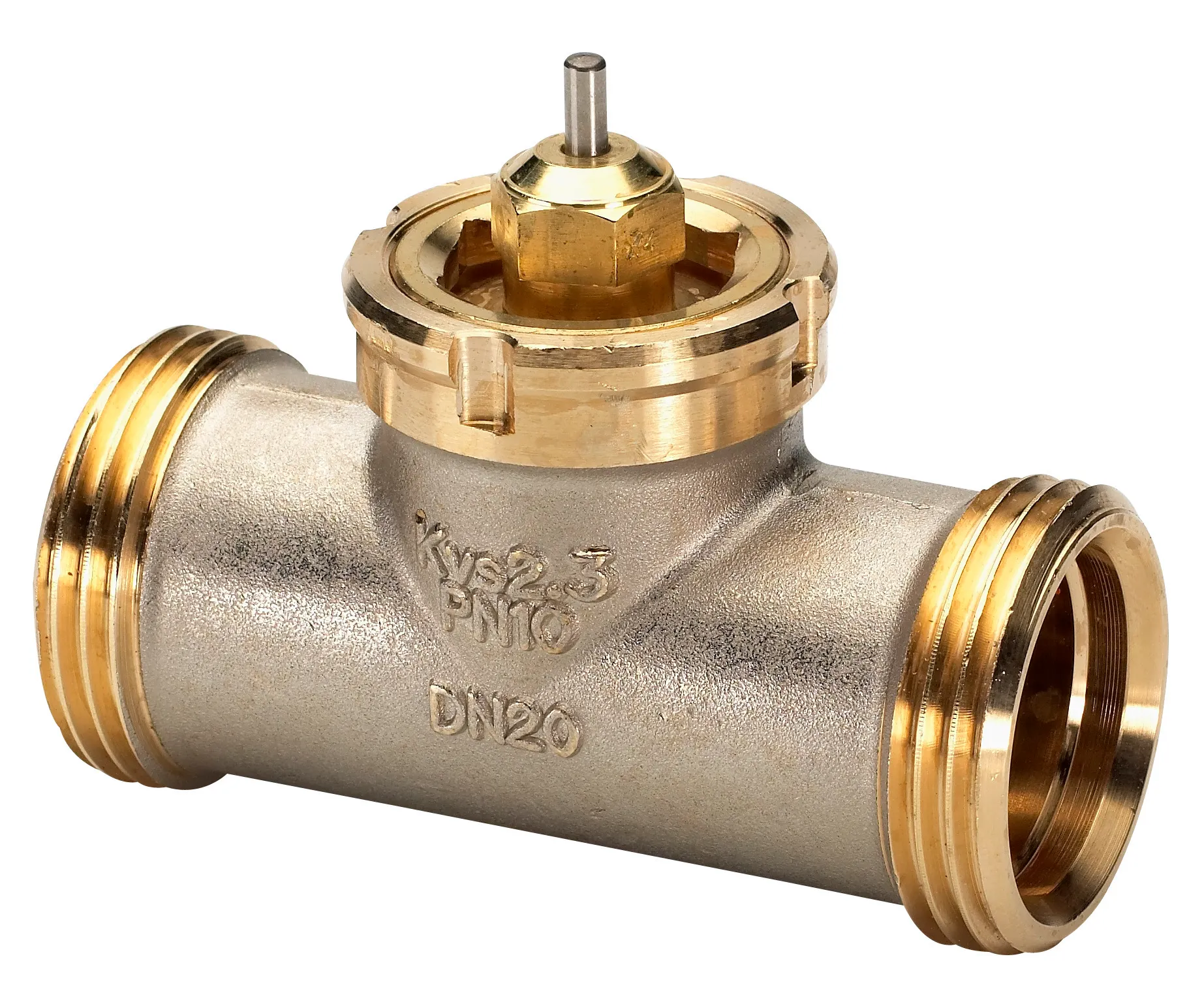

003L3520 Danfoss: VMT PN10 15/2,8 2-way/2 ext.thr Str.Flat
Gross weight
0.368 Kilogram
Net weight
0.368 Kilogram
Volume
0.392 Liter
EAN
5702425080715
Application
Heating and cooling
Cavitation factor
0.5
Connection size
G 3/4 A
Connection standard
ISO 228/1
Connection types
External Thread
Contain batteries
No
Description
VMT PN10 15/2,8 2-way/2 ext.thr Str.Flat
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
0.8 bar
EU RoHS compliance
Yes with exemptions
Flow characteristic
Linear
Function
Control valve
Kvs values [mÂł/h]
2.8 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 10
Pressure nominal [bar]
10 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle position
Normally open
Type
VMT
Valve body material
Brass W. No 2.0402
Valve cone material
NBR rubber
Valve size
DN 15
