003L3534
Part Number: 003L3534
Product Information
Extended Description

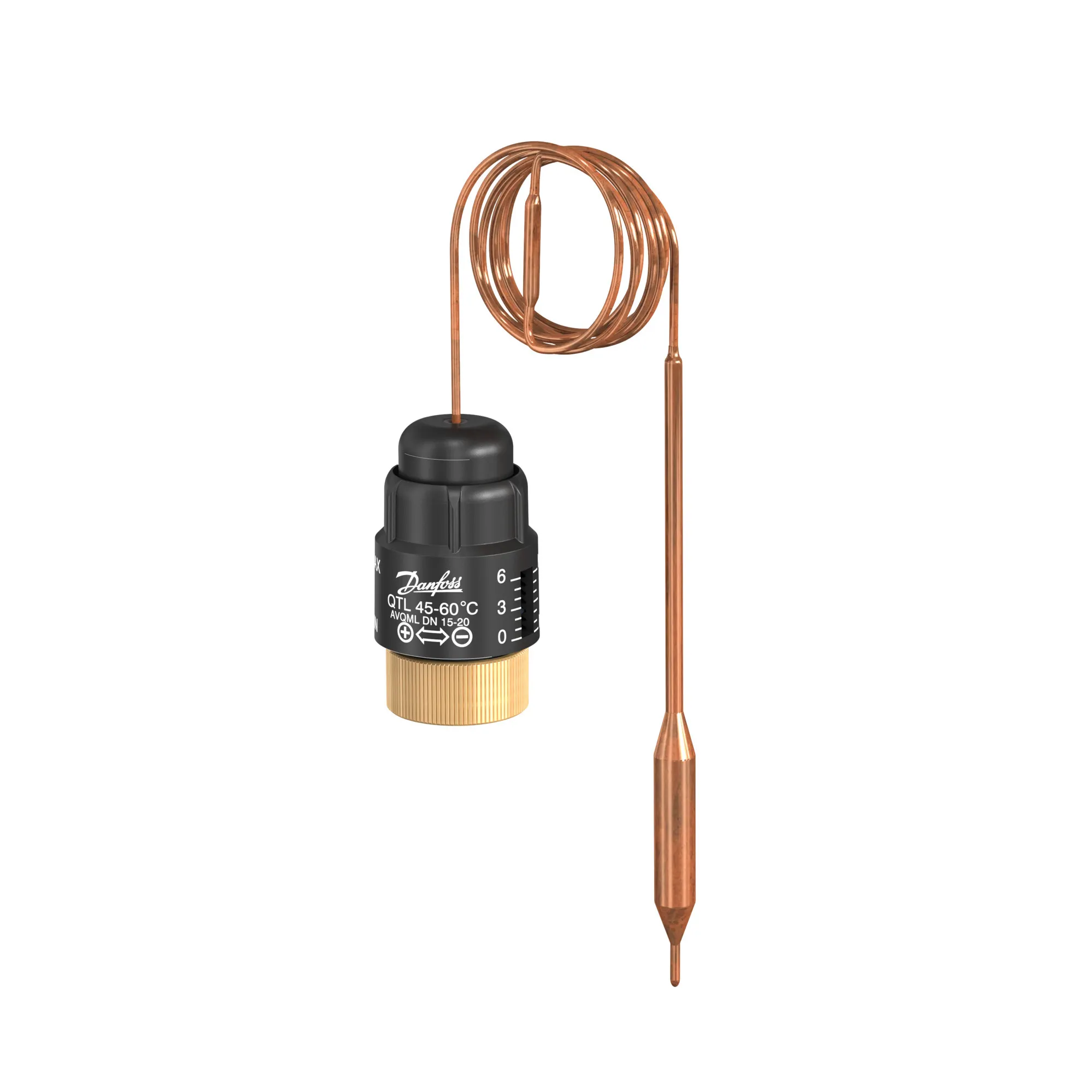

003L3534 Danfoss: QTL Thermostat 45-60 2m capillary tube
Gross weight
0.252 Kilogram
Net weight
0.23 Kilogram
Volume
1.365 Liter
EAN
5710104093819
Capillary tube length [m]
2.2 m
Capillary tube material
Copper
Contain batteries
No
Description
QTL Thermostat 45-60 2m capillary tube
EU RoHS compliance
Yes with exemptions
Label product
No
Media temperature at sensor [°C] [Max]
90 °C
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
69 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
60 °C
Temperature setting range [°C] [Min]
45 °C
Type
QTL
