003L3536
Part Number: 003L3536
Product Information
Extended Description

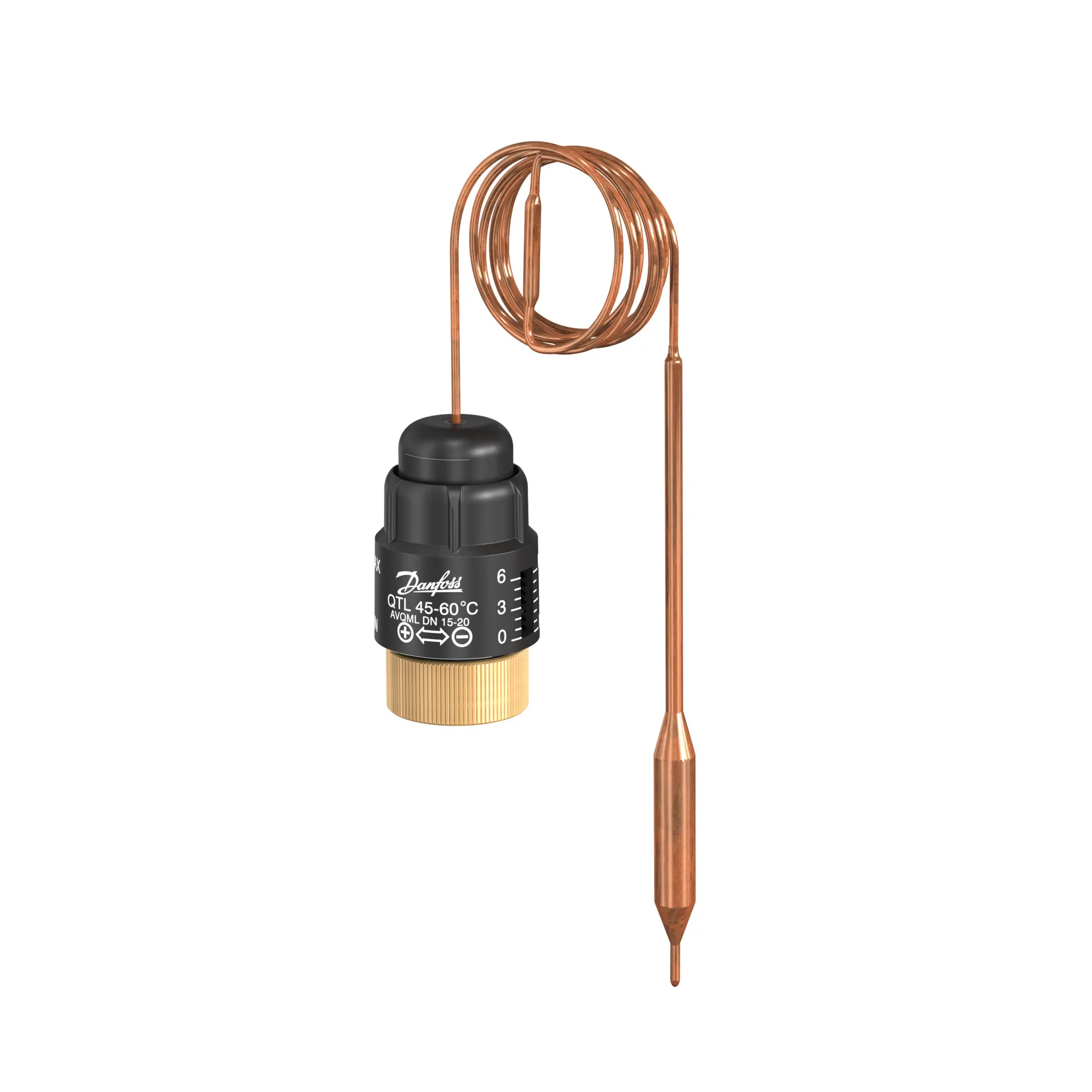

003L3536 Danfoss: QTL Thermostat 45-60 2m capillary tube
Gross weight
0.252 Kilogram
Net weight
0.252 Kilogram
Volume
1.365 Liter
EAN
5715162943854
Capillary tube length [m]
2.2 m
Capillary tube material
Copper
Description
QTL Thermostat 45-60 2m capillary tube
Label product
No
Media temperature at sensor [°C] [Max]
90 °C
Product group
Actuators - Temperature
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
69 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
60 °C
Temperature setting range [°C] [Min]
45 °C
Type
QTL
003Z0226
Tailpiece for welding DN 15 (1 pc.)
003Z0232
Tailpiece with External thread DN 15
003Z0391
Pocket for submersible sensor
013U0292
AVTB Sen.st.box R1/2 M14x1 Gasket fi12.6/2.5 x 6
013U8102
AVTB RAVI/K Adapt. R1/2 M14x1 Gasket fi12.6/4 x 6
