003L3594
Part Number: 003L3594
Product Information
Extended Description

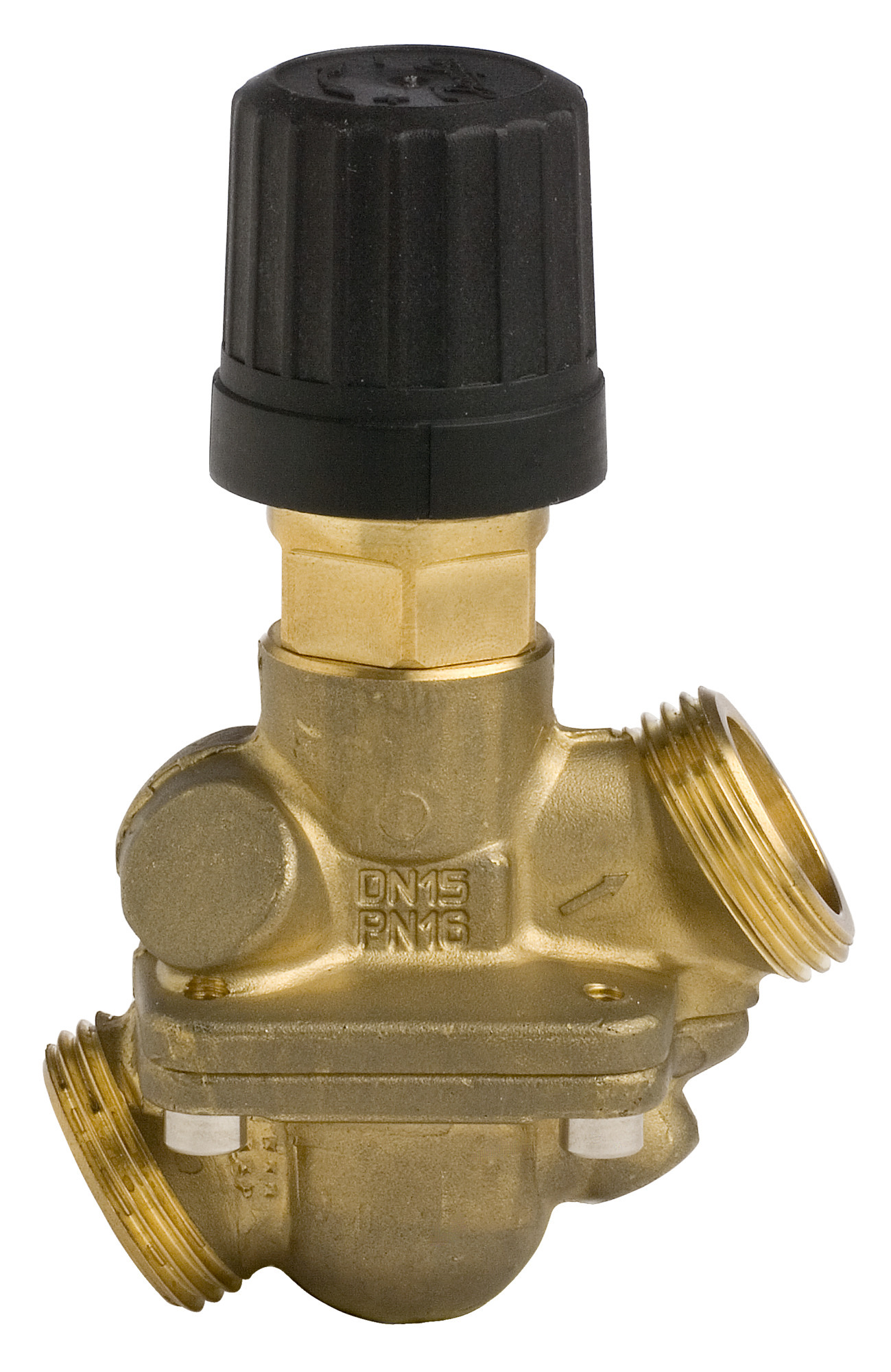

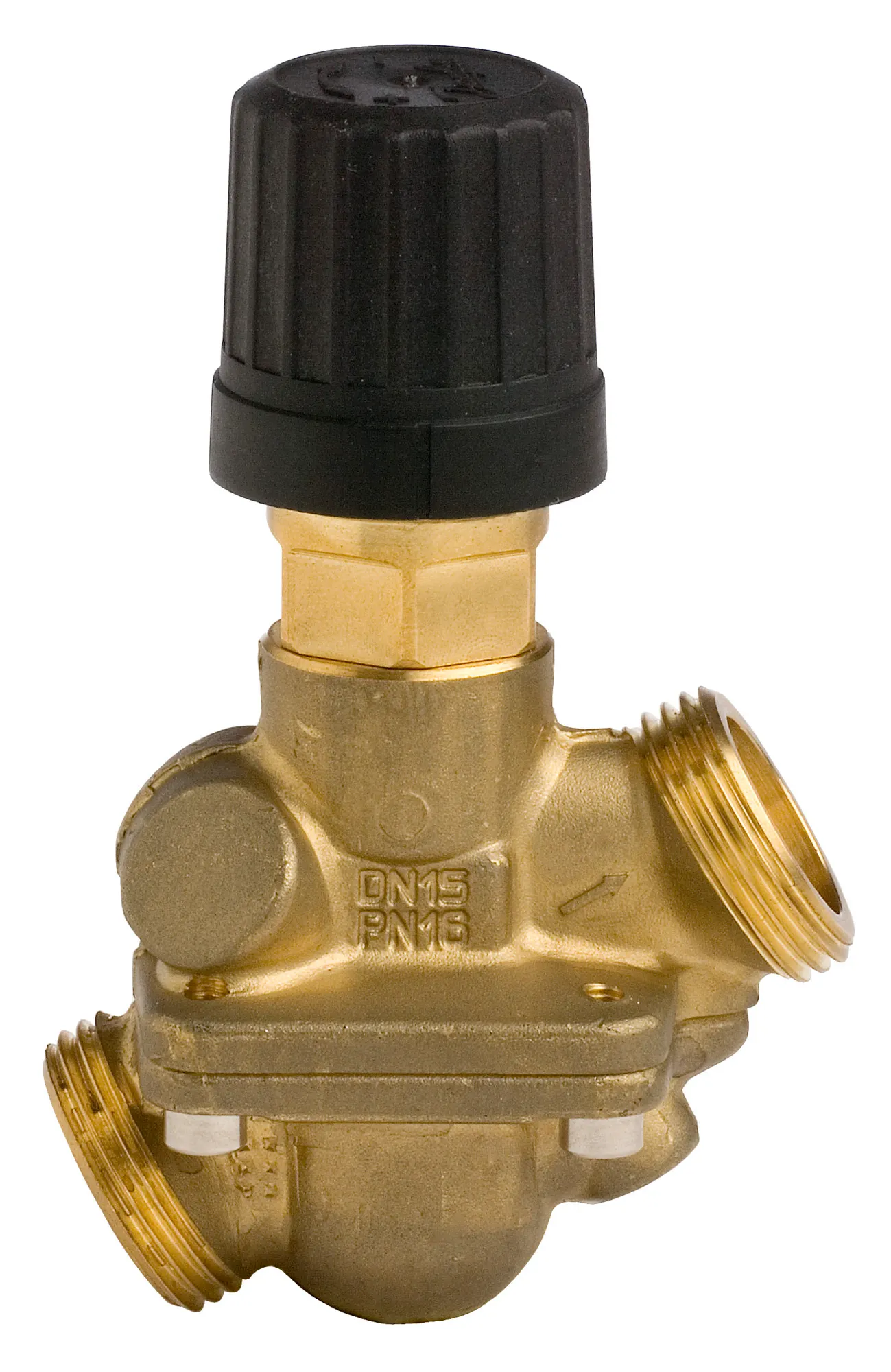

003L3594 Danfoss: AHQM PN16 15/1,6/0,12 ext.thr flow/ret
Gross weight
0.472 Kilogram
Net weight
0.472 Kilogram
Volume
0.922 Liter
EAN
5702421560679
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
China RoHS compliance
Out of scope
Connection size
G 3/4 A
Connection types
External Thread
Contain batteries
No
Description
AHQM PN16 15/1,6/0,12 ext.thr flow/ret
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
4 bar
EU RoHS compliance
Yes with exemptions
Flow control
Yes
Flow limitation
Yes
Flow rate [mÂł/h]
1 mÂł/h
Flow rate [mÂł/h] [Max]
1 mÂł/h
Flow rate [mÂł/h] [Min]
0.2 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.12 bar
Function
Flow controller with int. control valve
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
1.6 mÂł/h
Leakage rate [% Kvs]
0.02
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure controller
No
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing CV material
EPDM
Sealing DP material
EPDM
Setting Type
None
Stem position
Normally open
Stroke [mm]
5.5 mm
Type
AHQM
UK RoHS compliance
Out of scope
Valve body material
DZR brass CuZn36Pb2AS (CW 602N)
Valve cone CV material
DZR CW602N (CuZn36Pb2As)
Valve cone DP material
DZR CW602N (CuZn36Pb2As)
Valve seat material
DZR CW602N (CuZn36Pb2As)
Valve size
DN 15
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
003H6915
Flange tailpieces, PN 25, DN 15, G 3/4
