Part Number: 003L3601
003L3601
Manufacturer
Danfoss
Part number
003L3601
Category

Product Information

Extended Description

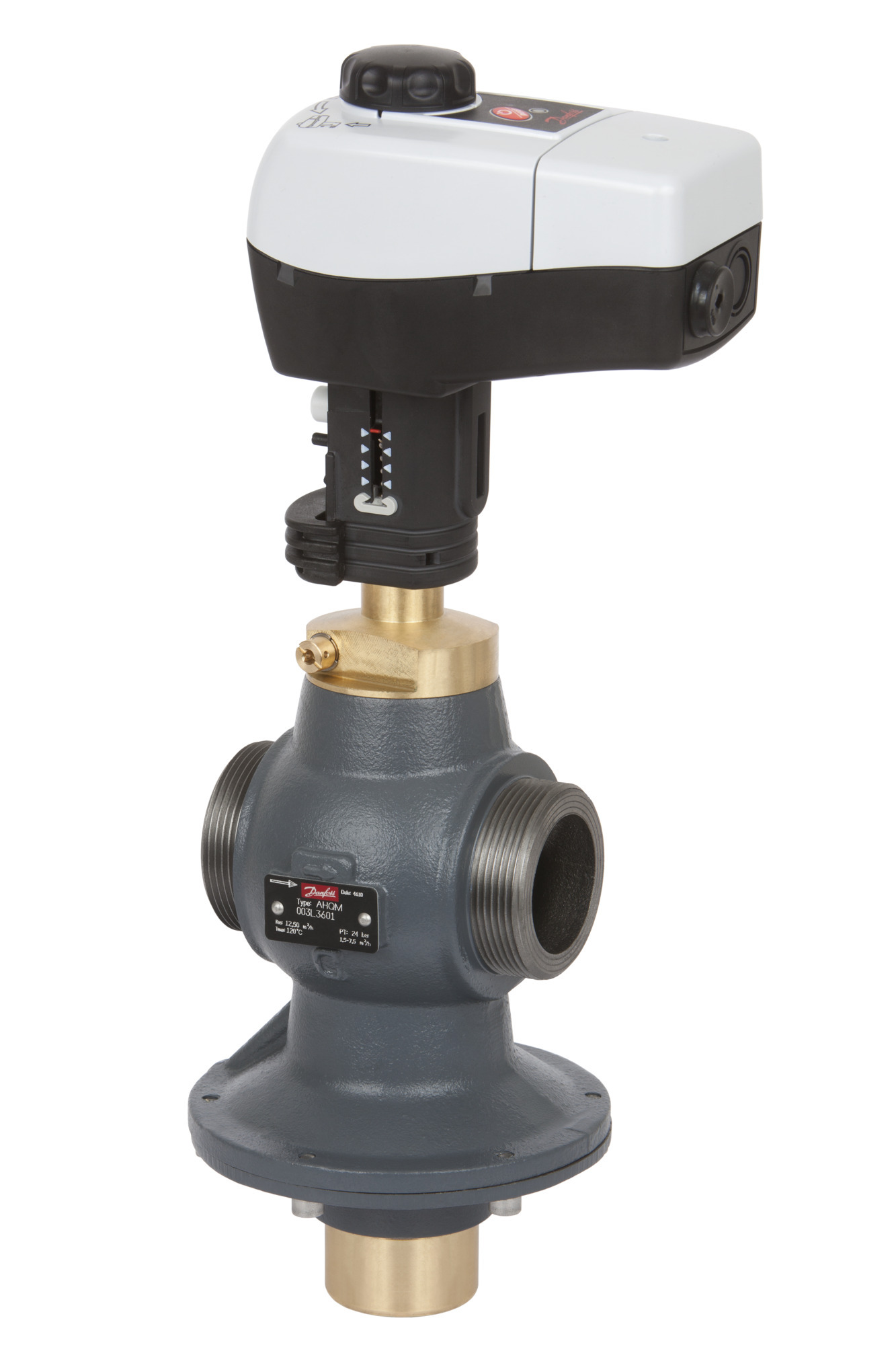

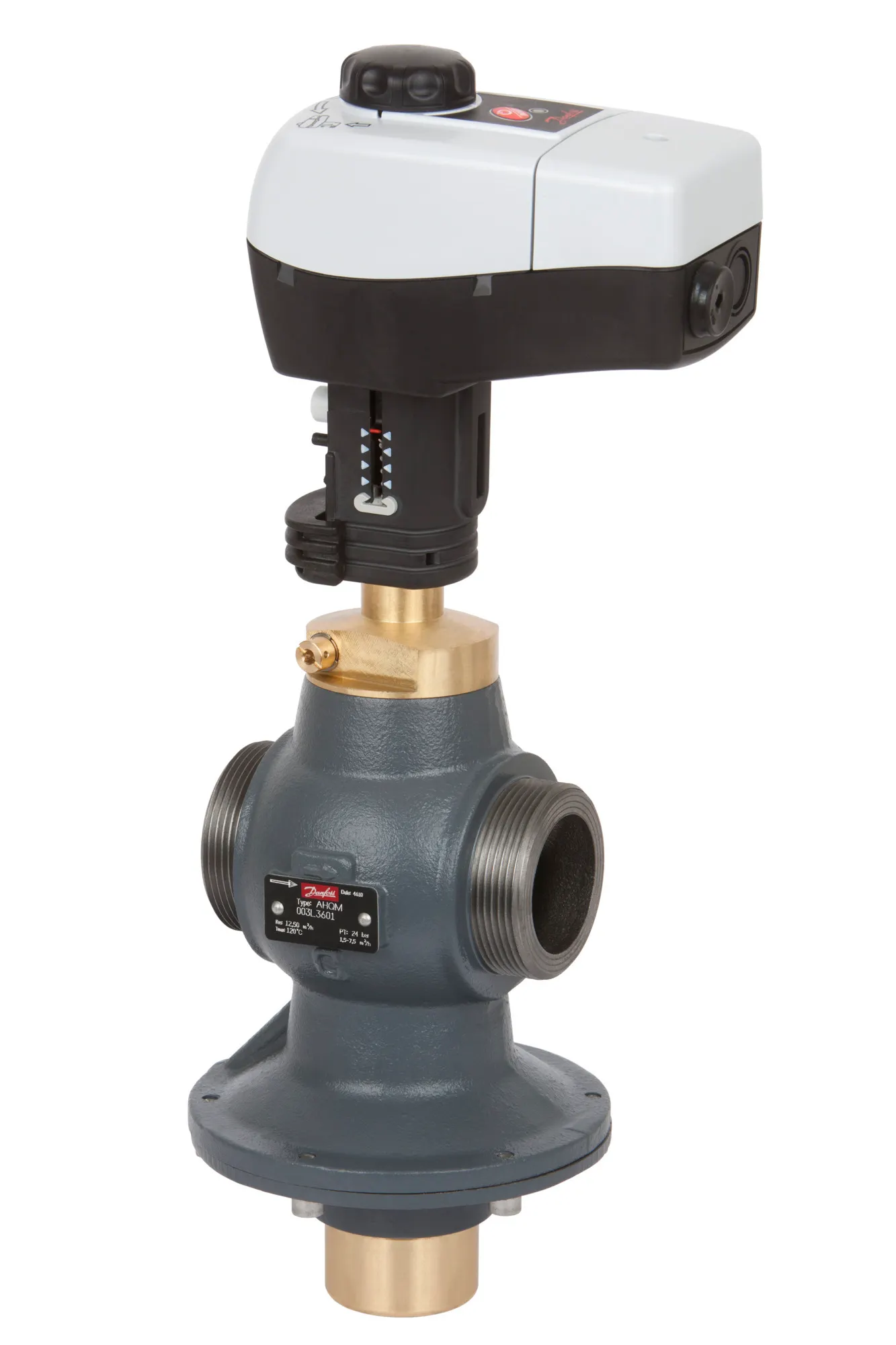

003L3601 Danfoss: AHQM PN16 40/12,5/0,2 ext.thr flow/ret
Gross weight
6.33 Kilogram
Net weight
6.33 Kilogram
Volume
18.135 Liter
EAN
5710104028736
Actuator diaphragm material
EPDM
Application
District Heating
Cavitation factor
0.6
China RoHS compliance
Out of scope
Connection size
G 2 A
Connection types
External Thread
Contain batteries
No
Description
AHQM PN16 40/12,5/0,2 ext.thr flow/ret
Diameter [mm]
40 mm
Differential pressure range [bar] [Max]
4 bar
EU RoHS compliance
Yes with exemptions
Flow control
Yes
Flow limitation
Yes
Flow rate [mÂł/h]
7.5 mÂł/h
Flow rate [mÂł/h] [Max]
7.5 mÂł/h
Flow rate [mÂł/h] [Min]
1.5 mÂł/h
Flow restrictor diff.pressure - dpb [bar]
0.2 bar
Function
Flow controller with int. control valve
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
12.5 mÂł/h
Leakage rate [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure controller
No
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sealing CV material
Metal
Sealing DP material
EPDM
Setting Type
None
Stem position
Normally open
Stroke [mm]
10 mm
Type
AHQM
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone CV material
DZR CW602N (CuZn36Pb2As)
Valve cone DP material
Stainless steel, mat. No. 1.4404
Valve seat material
Stainless steel, mat. No. 1.4404
Valve size
DN 40
003H6912
Weld-on tailpieces, PN 25, DN 40, G 2
