003L3640

Part Number: 003L3640
003L3640
Manufacturer
Danfoss
Part number
003L3640
Category

Product Information

Extended Description

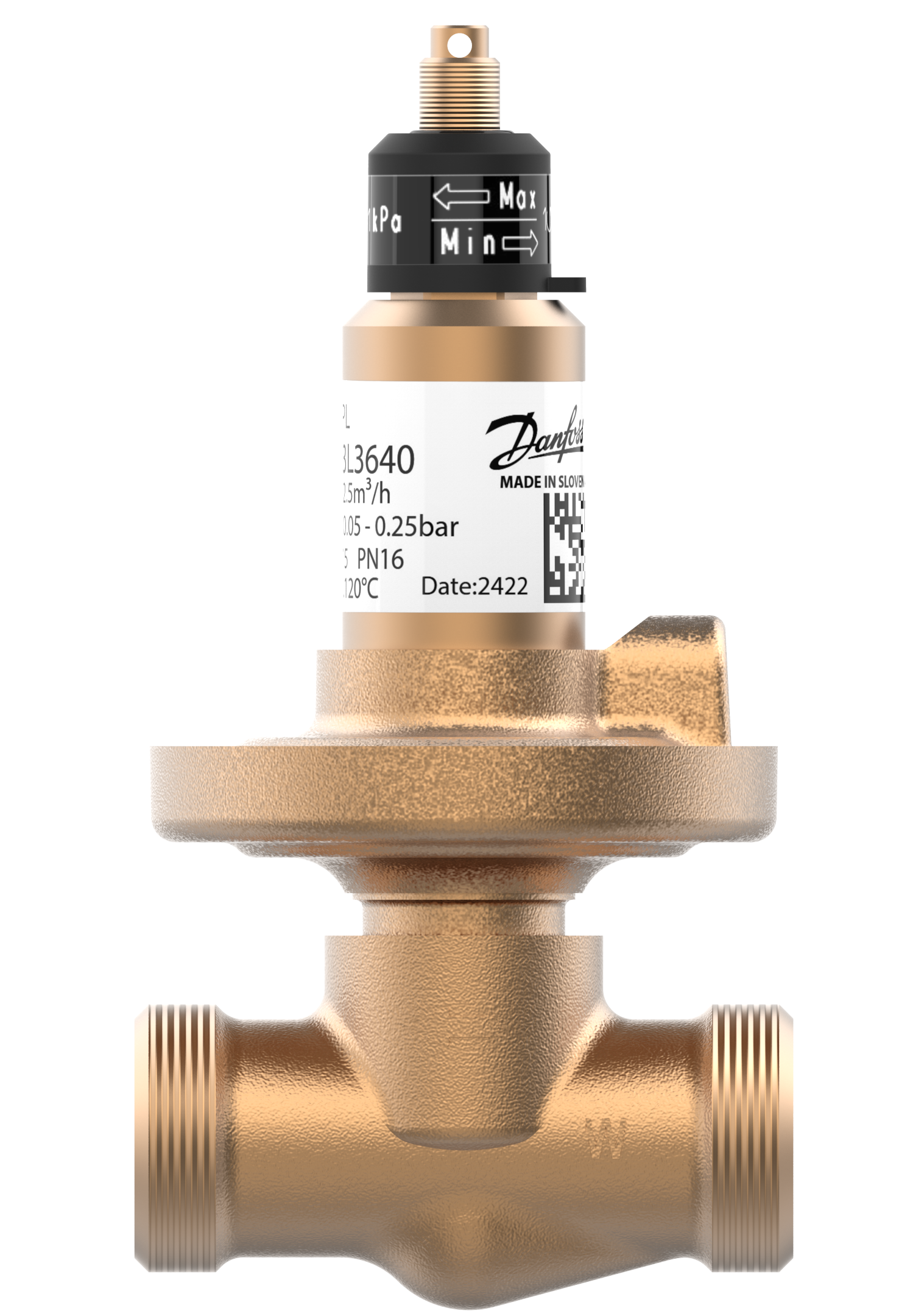

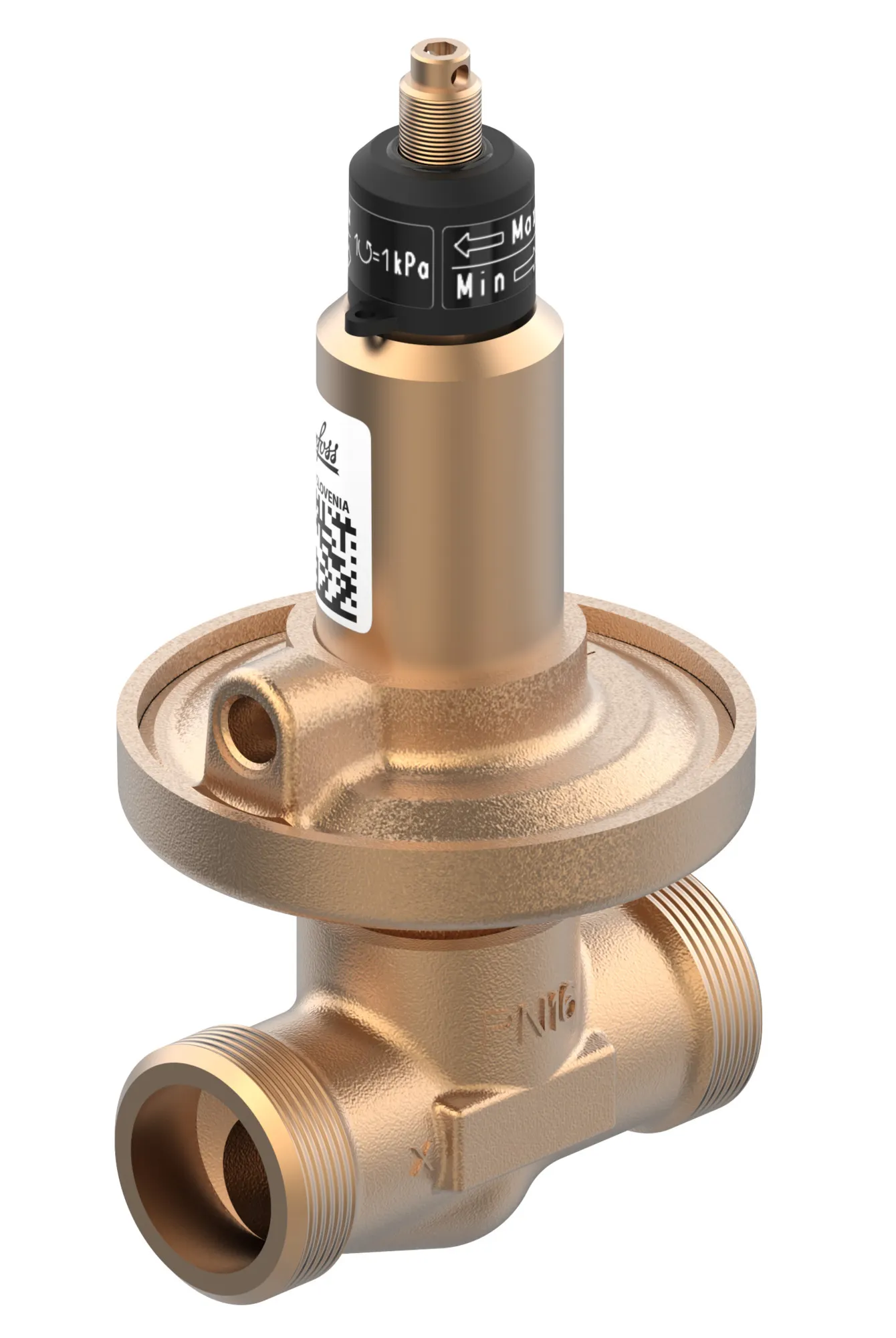

003L3640 Danfoss: AVPL PN16 15/2,5 0,05-0,25 ext. thr ret
Gross weight
0.673 Kilogram
Net weight
0.621 Kilogram
Volume
1.194 Liter
EAN
5714279007152
Actuator diaphragm material
EPDM
Application
Heating and cooling
Cavitation factor
0.5
Connection size
G 3/4 A
Connection types
External Thread
Contain batteries
No
Description
AVPL PN16 15/2,5 0,05-0,25 ext. thr ret
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
4.5 bar
Differential pressure setting [bar] [Max]
0.25 bar
Differential pressure setting [bar] [Min]
0.05 bar
EU RoHS compliance
Yes with exemptions
Flow control
No
Flow limitation
No
Function
Diff. press. controller
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Return
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure controller
Differential pressure controller
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Setting Type
Adjustable
Stem position
Normally open
Type
AVPL
Valve body material
DZR brass CuZn36Pb2AS (CW 602N)
Valve cone DP material
Stainless steel
Valve seat material
Stainless steel
Valve size
DN 15
