003L3962
Part Number: 003L3962
Product Information
Extended Description

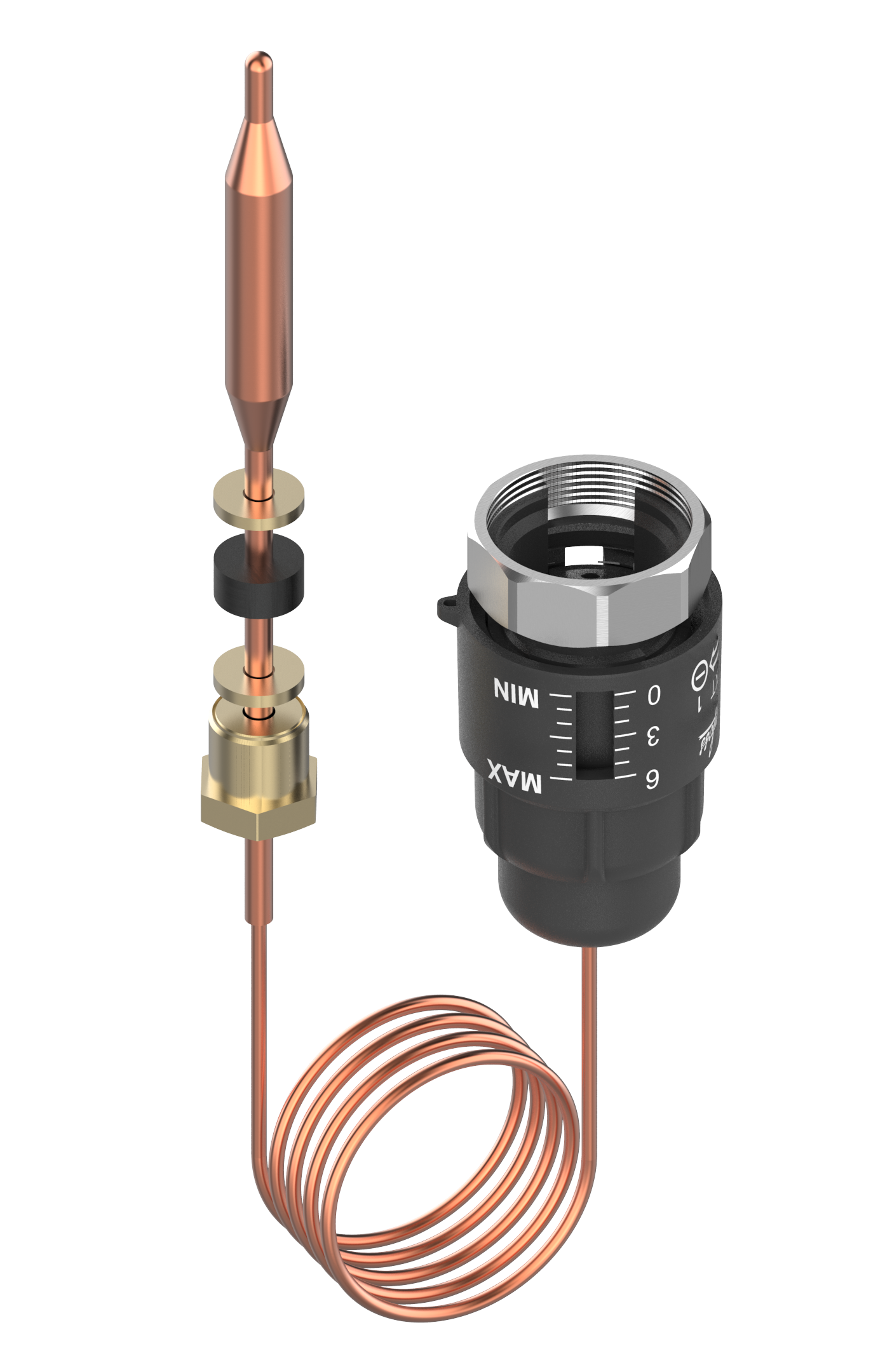

003L3962 Danfoss: Thermostat TPC 40 - 60 °C
Gross weight
0.182 Kilogram
Net weight
0.178 Kilogram
Volume
1.721 Liter
EAN
5702425091544
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Capillary tube length [m]
0.6 m
Contain batteries
No
Description
Thermostat TPC 40 - 60 °C
Function
Flow compensated temp. controller
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
70 °C
Product group
Accessories - SAC
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor connection
M14x1
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
64 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
60 °C
Temperature setting range [°C] [Min]
40 °C
Time constant [sec]
3 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
Termostatic elements
