003L5031

Part Number: 003L5031
003L5031
Manufacturer
Danfoss
Part number
003L5031
Category

Product Information

Extended Description

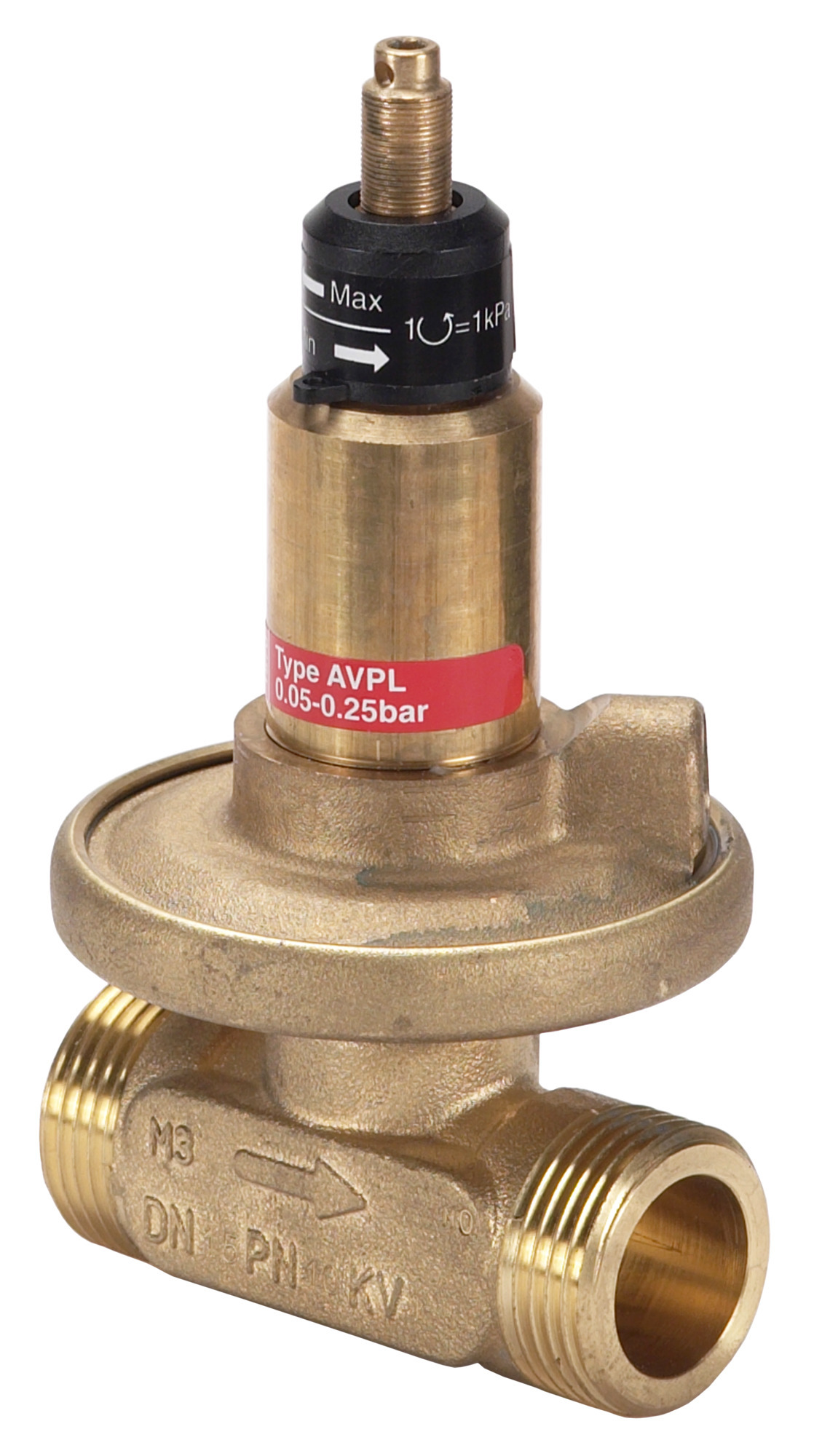

003L5031 Danfoss: AVPL PN16 15/1,6 0,05-0,25 ext. thr ret
Gross weight
0.702 Kilogram
Net weight
0.702 Kilogram
Volume
1.262 Liter
EAN
5702421521595
Actuator diaphragm material
EPDM
Application
Heating and cooling
Cavitation factor
0.5
Cavitation factor 100%
0.41
Cavitation factor 25%
0.69
Cavitation factor 50%
0.62
Cavitation factor 75%
0.6
Connection size
G 3/4 A
Connection types
External Thread
Contain batteries
No
Description
AVPL PN16 15/1,6 0,05-0,25 ext. thr ret
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
4.5 bar
Differential pressure setting [bar] [Max]
0.25 bar
Differential pressure setting [bar] [Min]
0.05 bar
EU RoHS compliance
Yes with exemptions
Flow control
No
Flow limitation
No
Function
Diff. press. controller
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
1.6 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Return
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure controller
Differential pressure controller
Pressure nominal [bar]
16 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Setting Type
Adjustable
Stem position
Normally open
Type
AVPL
Valve body material
DZR brass CuZn36Pb2AS (CW 602N)
Valve cone DP material
Stainless steel
Valve seat material
Stainless steel
Valve size
DN 15
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
003L3561
Impulse tubes, 3 mm, G 1/16, 1500 mm, COPPER||COPPER, For product type: AVPL
003L3562
Impulse tubes, 3 mm, G 1/16, 5000 mm, COPPER||COPPER, For product type: AVPL
003L5042
Nipple, G1/16-R3/8
003L5043
Impulse tubes, 3 mm, G 1/16, 2500 mm, COPPER||COPPER, For product type: AVPL
003L8151
Plug for connecting impulse tube, G1/16-R1/4
003L8175
O-ring for impulse tube (10 pcs.)
003L8170
EPP insulation cap ASV / USV DN 15
