003L5043
Part Number: 003L5043
Product Information
Extended Description

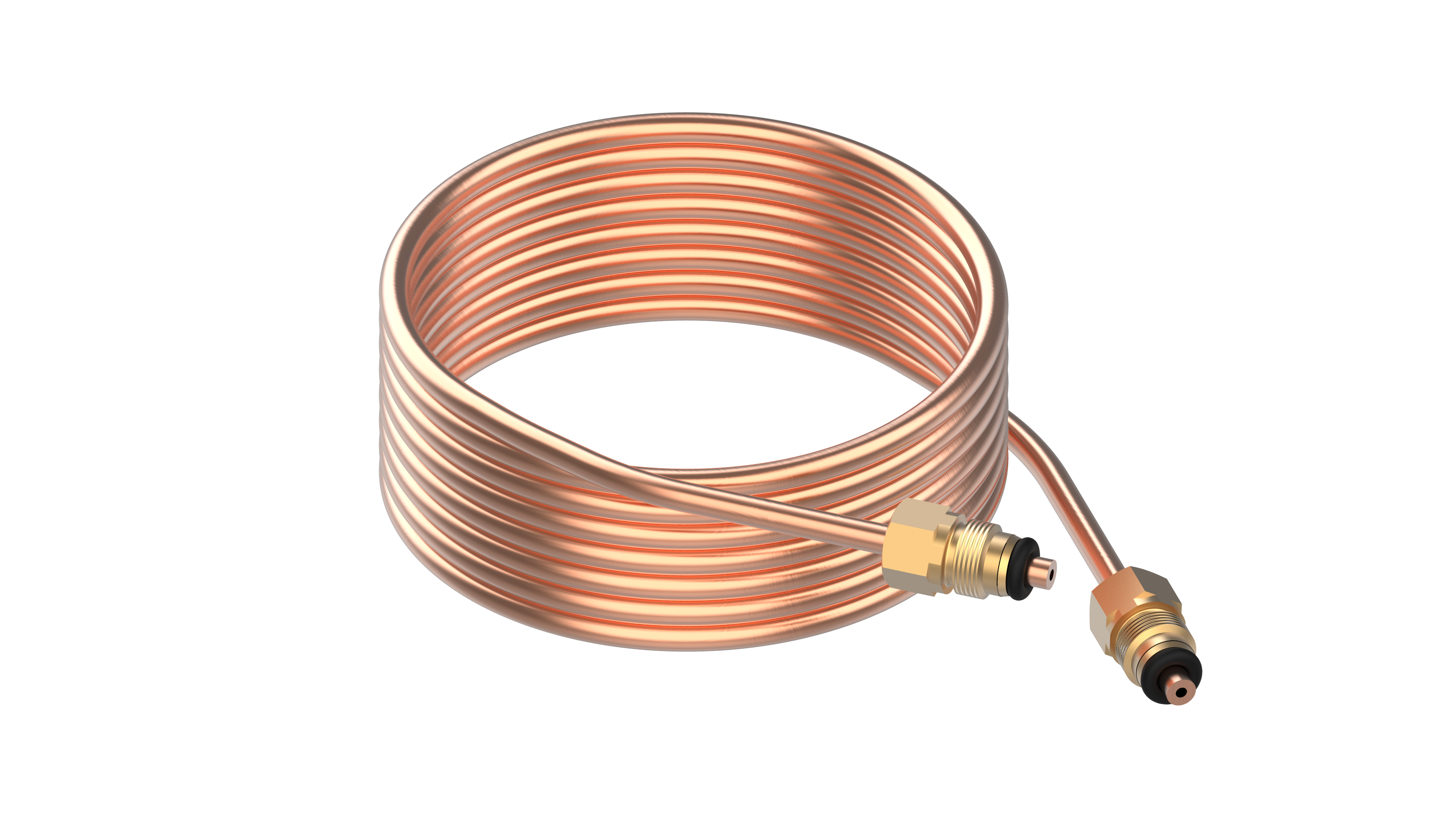

003L5043 Danfoss: Impulse tube set 1,6 G1/16, fi3x2,5m
Gross weight
0.144 Kilogram
Net weight
0.144 Kilogram
Volume
0.496 Liter
EAN
5710104028149
Connection size
G 1/16
Contain batteries
No
Description
Impulse tube set 1,6 G1/16, fi3x2,5m
Diameter [mm]
3 mm
For product type
AVPL
Length [mm]
2500 mm
Material
COPPER
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
16 bar
Product group
Accessories - SAC
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Suitable for valve of diameter [mm] [Max]
15 mm
Suitable for valve of diameter [mm] [Min]
15 mm
Suitable for valve of pressure [bar] [Max]
16 bar
Suitable for valve of pressure [bar] [Min]
16 bar
Type
Impulse tubes
