003L6012
Part Number: 003L6012
Product Information
Extended Description

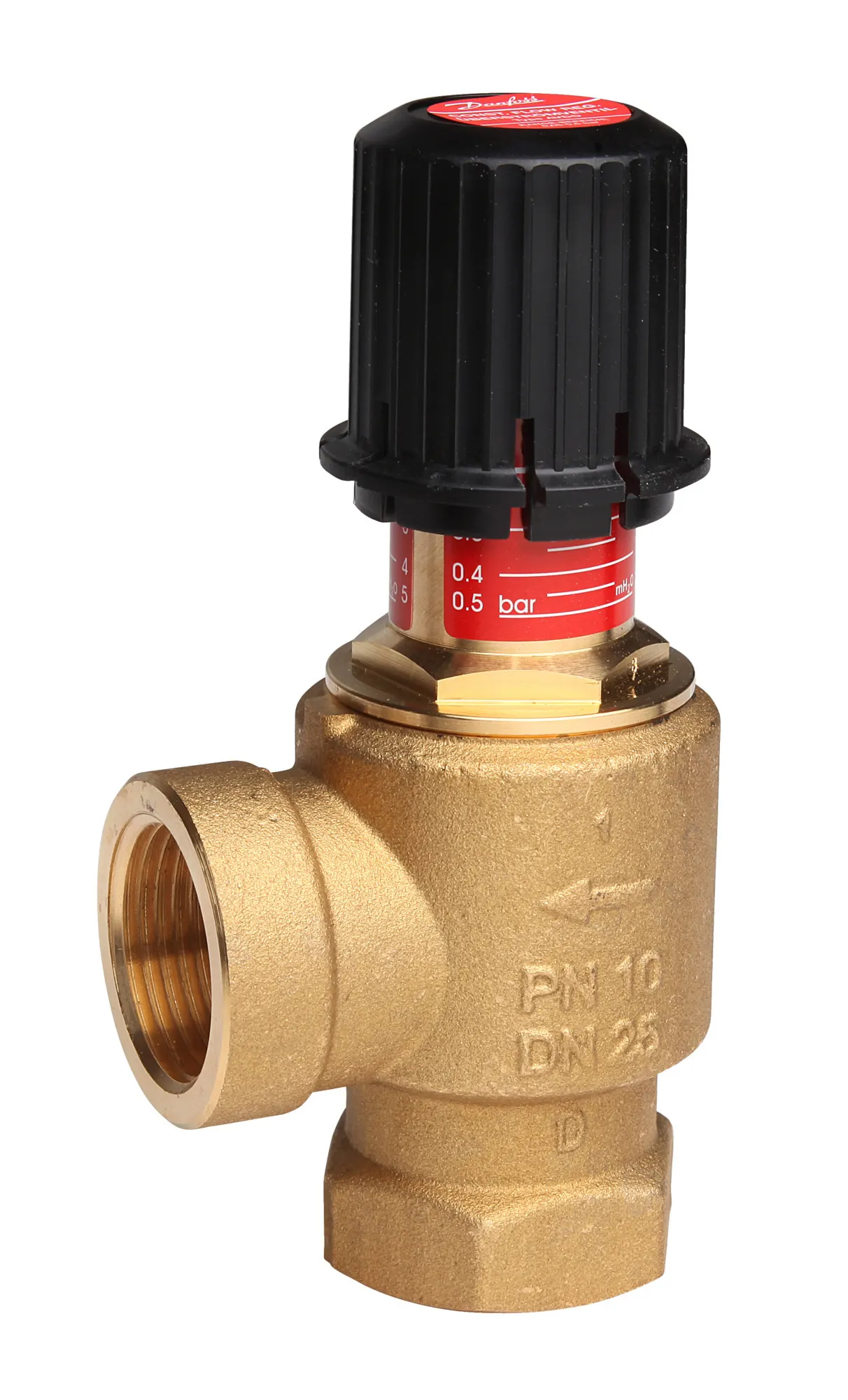

003L6012 Danfoss: Self-acting constant flow valve
Gross weight
0.874 Kilogram
Net weight
0.839 Kilogram
Volume
1.124 Liter
EAN
5702420017105
Connection size in
Rp 1
Connection size out
Rp 1
Connection types
Threaded
Connections
1"
Contain batteries
No
Description
Self-acting constant flow valve
Design
Angle
Differential pressure range [bar] [Max]
0.5 bar
Flow temperature [°C] [Max]
120 °C
Inlet connection type
Internal thread
Outlet connection type
Internal thread
Product group
Automatic Bypass Control
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
7b37c0d6-8f7d-4b5c-b1b0-5f93cc0ad594
SCIP dossier product name
AVDO COMMERCIAL 25
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 25
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO
AVDO - Installation and Commissioning Guide
Instructions for AVDO
Automatic By-pass Valve AVDO
AVDO Automatic Bypass Control Instructions
AVDO / AVDO accessories / AVDO bypass control
Danfoss MD VJLXA102.05
003L6012
AVDO_Angle_DN25_003L6012_STEP
AVDO_Angle_DN25_003L6012_3D
AVDO_Angle_DN25_003L6012_2D
