003L6020

Part Number: 003L6020
003L6020
Manufacturer
Danfoss
Part number
003L6020
Category

Product Information

Extended Description

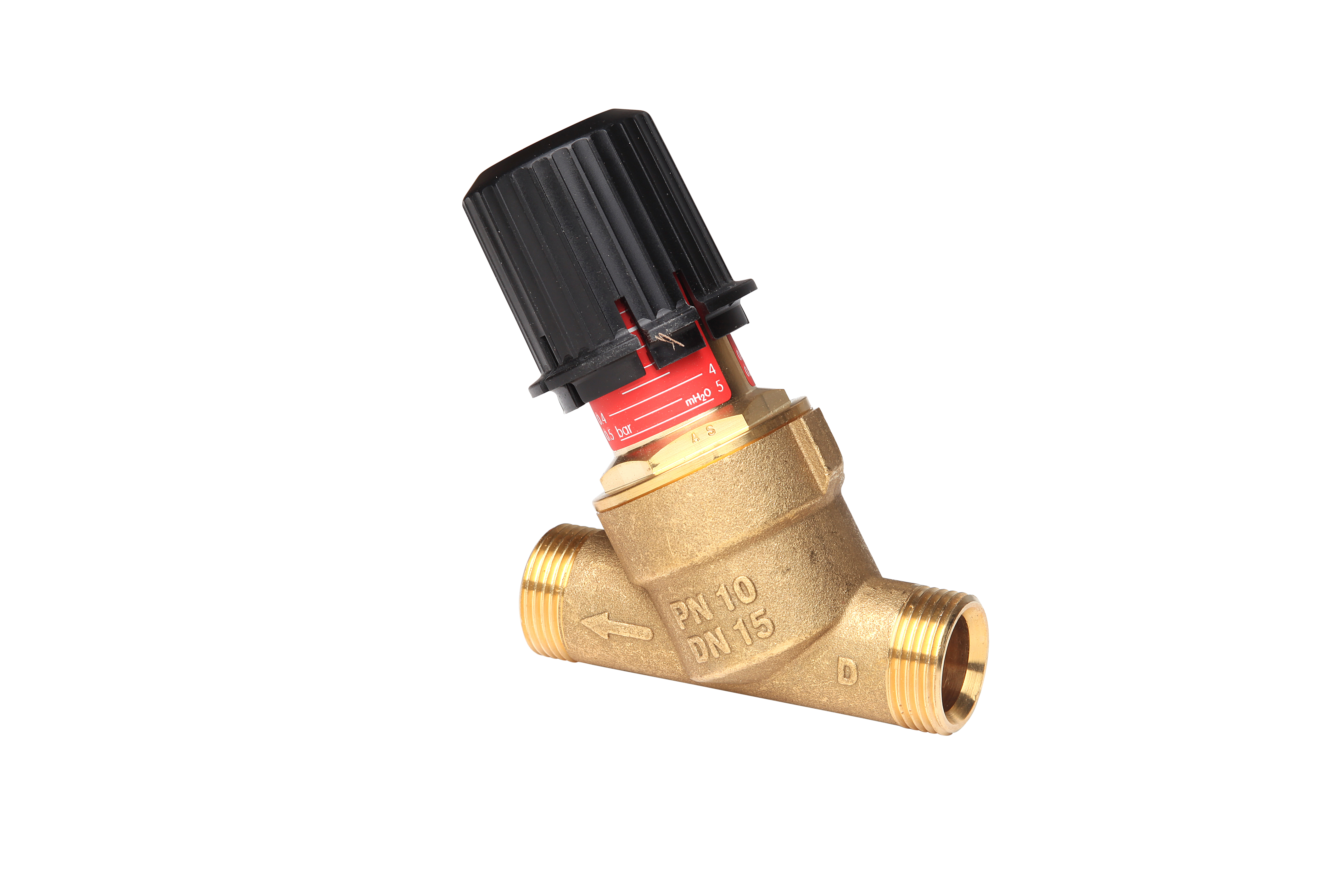

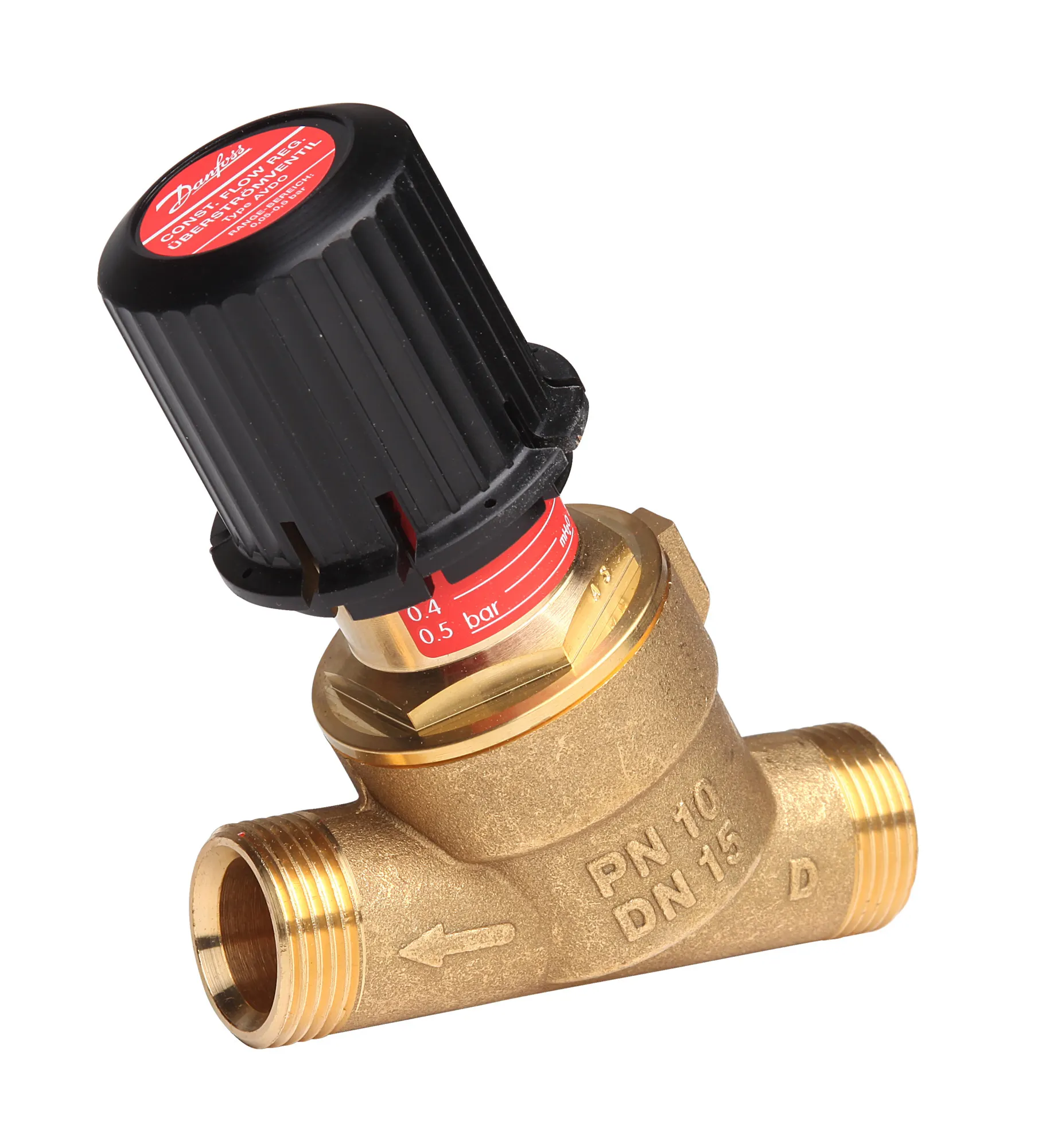

003L6020 Danfoss: Self-acting constant flow valve
Gross weight
0.644 Kilogram
Net weight
0.644 Kilogram
Volume
1.083 Liter
EAN
5702420018027
Connection size in
G 3/4 A
Connection size out
G 3/4 A
Connection types
Threaded
Connections
1/2"
Contain batteries
No
Description
Self-acting constant flow valve
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
Flow temperature [°C] [Max]
120 °C
Inlet connection type
External thread
Outlet connection type
External thread
Product group
Automatic Bypass Control
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5d85a5b4-12ae-4974-b468-8f08d6136f16
SCIP dossier product name
AVDO COMMERCIAL 15
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 15
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO AVDO - Installation and Commissioning Guide Instructions for AVDO Automatic By-pass Valve AVDO AVDO Automatic Bypass Control Instructions AVDO / AVDO accessories / AVDO bypass control Danfoss MD VJLXA102.05 003L6020_L Automatic Bypass Control 003L6020 AVDO 15 Automatic Bypass Control 003L6020 AVDO 15 AVDO_DN15-25_Straight_External_RFA AVDO_DN15_Straight_External_003L6020_IFC AVDO_Straight_DN15_003L6020_STEP AVDO_Straight_DN15_003L6020_3D AVDO_Straight_DN15_003L6020_2D
