003L6023
Part Number: 003L6023
Product Information
Extended Description

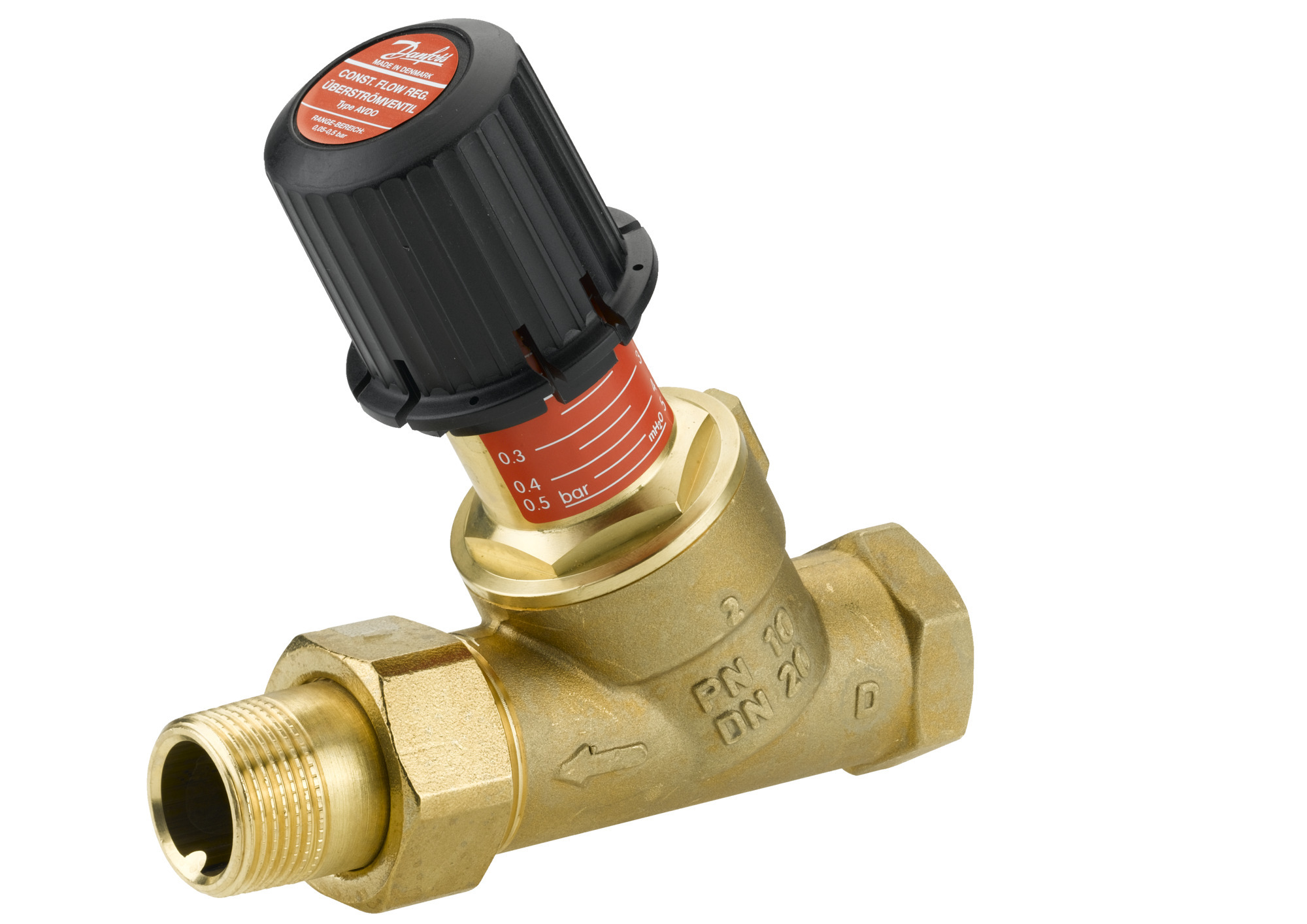

003L6023 Danfoss: Self-acting constant flow valve
Gross weight
0.83 Kilogram
Net weight
0.805 Kilogram
Volume
1.092 Liter
EAN
5702420018003
Connection size in
Rp 3/4
Connection size out
R 3/4
Connection types
Threaded
Connections
3/4"
Contain batteries
No
Description
Self-acting constant flow valve
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
EU RoHS compliance
Yes with exemptions
Flow temperature [°C] [Max]
120 °C
Inlet connection type
Internal thread
Outlet connection type
External thread
Product group
Automatic Bypass Control
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
8d736b0d-4ef5-4b75-a470-3b3ad31b8da6
SCIP dossier product name
AVDO COMMERCIAL 20
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 20
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO
AVDO - Installation and Commissioning Guide
Instructions for AVDO
Automatic By-pass Valve AVDO
AVDO Automatic Bypass Control Instructions
AVDO / AVDO accessories / AVDO bypass control
Danfoss MD VJLXA102.05
AVDO 003L6023
AVDO 003L6023
AVDO 003L6023
AVDO_Straight_DN20_Tailpiece_003L6023_STEP
AVDO_Straight_DN20_Tailpiece_003L6023_2D
AVDO_Straight_DN20_Tailpiece_003L6023_3D
