003L6025

Part Number: 003L6025
003L6025
Manufacturer
Danfoss
Part number
003L6025
Category

Product Information

Extended Description

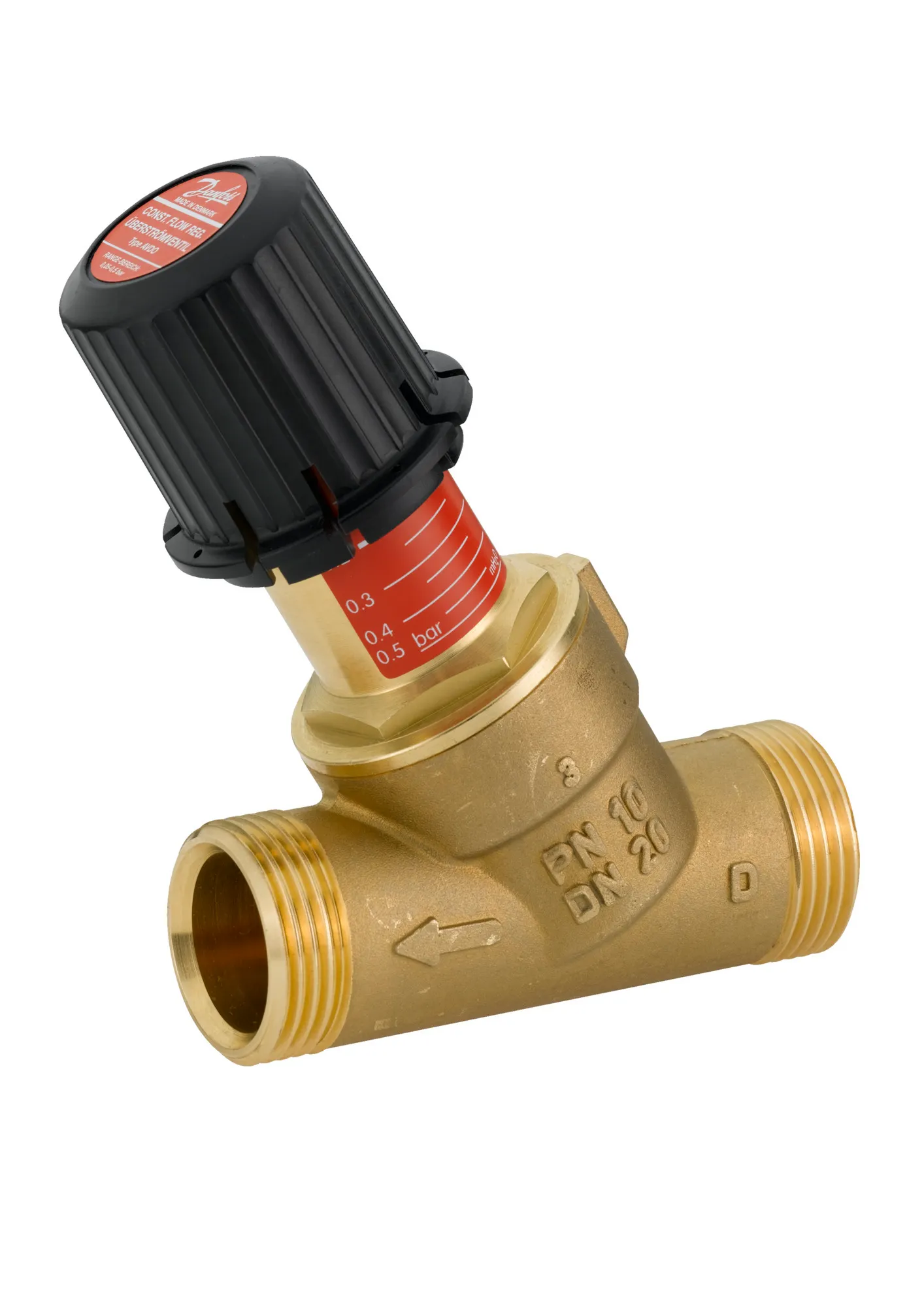

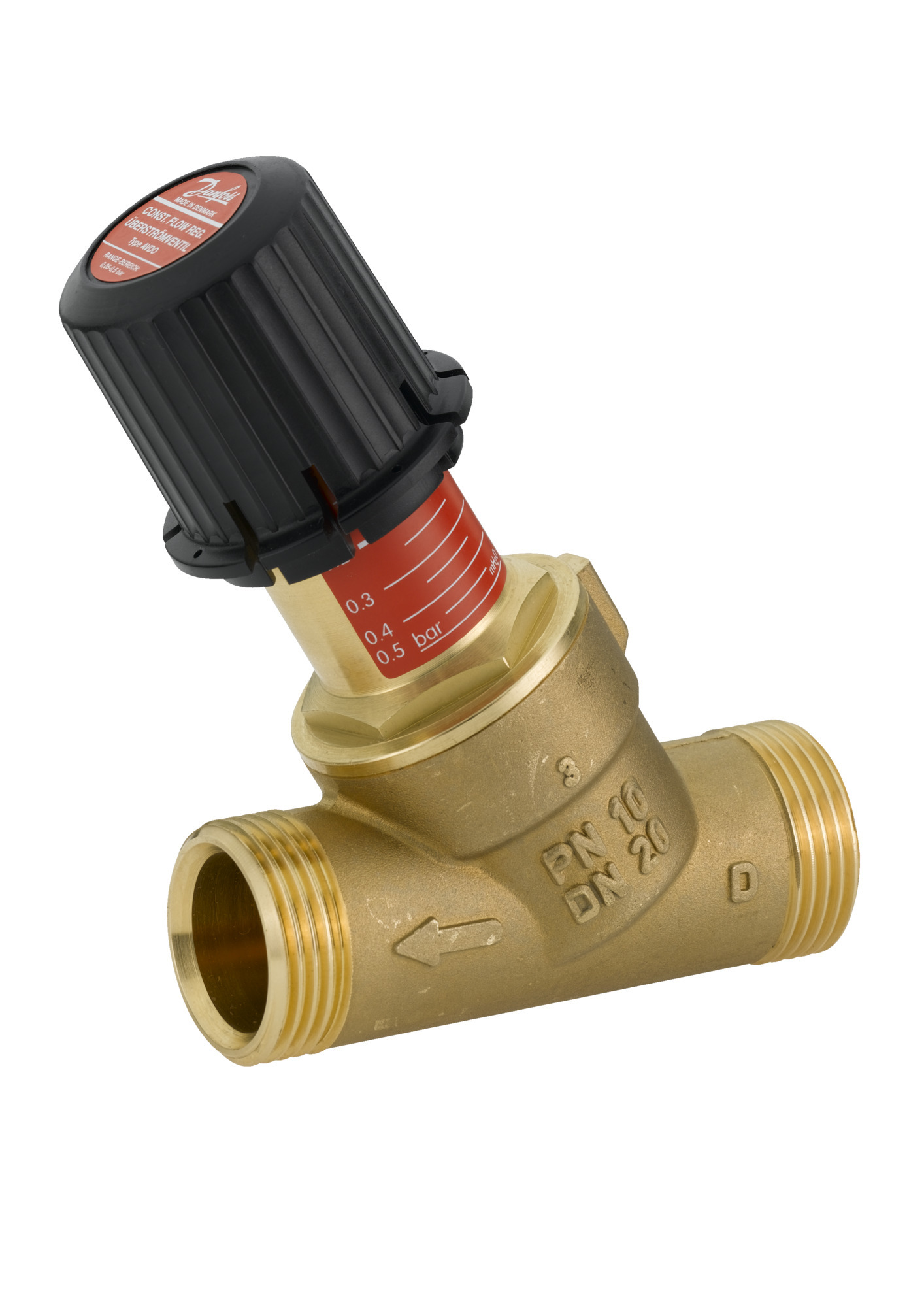

003L6025 Danfoss: Self-acting constant flow valve
Gross weight
0.712 Kilogram
Net weight
0.684 Kilogram
Volume
1.11 Liter
EAN
5702420017990
Connection size in
G 1 A
Connection size out
G 1 A
Connection types
Threaded
Connections
3/4"
Contain batteries
No
Description
Self-acting constant flow valve
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
Flow temperature [°C] [Max]
120 °C
Inlet connection type
External thread
Outlet connection type
External thread
Product group
Automatic Bypass Control
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
8d736b0d-4ef5-4b75-a470-3b3ad31b8da6
SCIP dossier product name
AVDO COMMERCIAL 20
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 20
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO AVDO - Installation and Commissioning Guide Instructions for AVDO Automatic By-pass Valve AVDO AVDO Automatic Bypass Control Instructions AVDO / AVDO accessories / AVDO bypass control Danfoss MD VJLXA102.05 AVDO 003L6025 AVDO 003L6025 AVDO 003L6025 AVDO_DN15-25_Straight_External_RFA AVDO_DN20_Straight_External_003L6025_IFC AVDO_Straight_DN20_003L6025_STEP AVDO_Straight_DN20_003L6025_3D AVDO_Straight_DN20_003L6025_2D
