003L602501
Part Number: 003L602501
Product Information
Extended Description

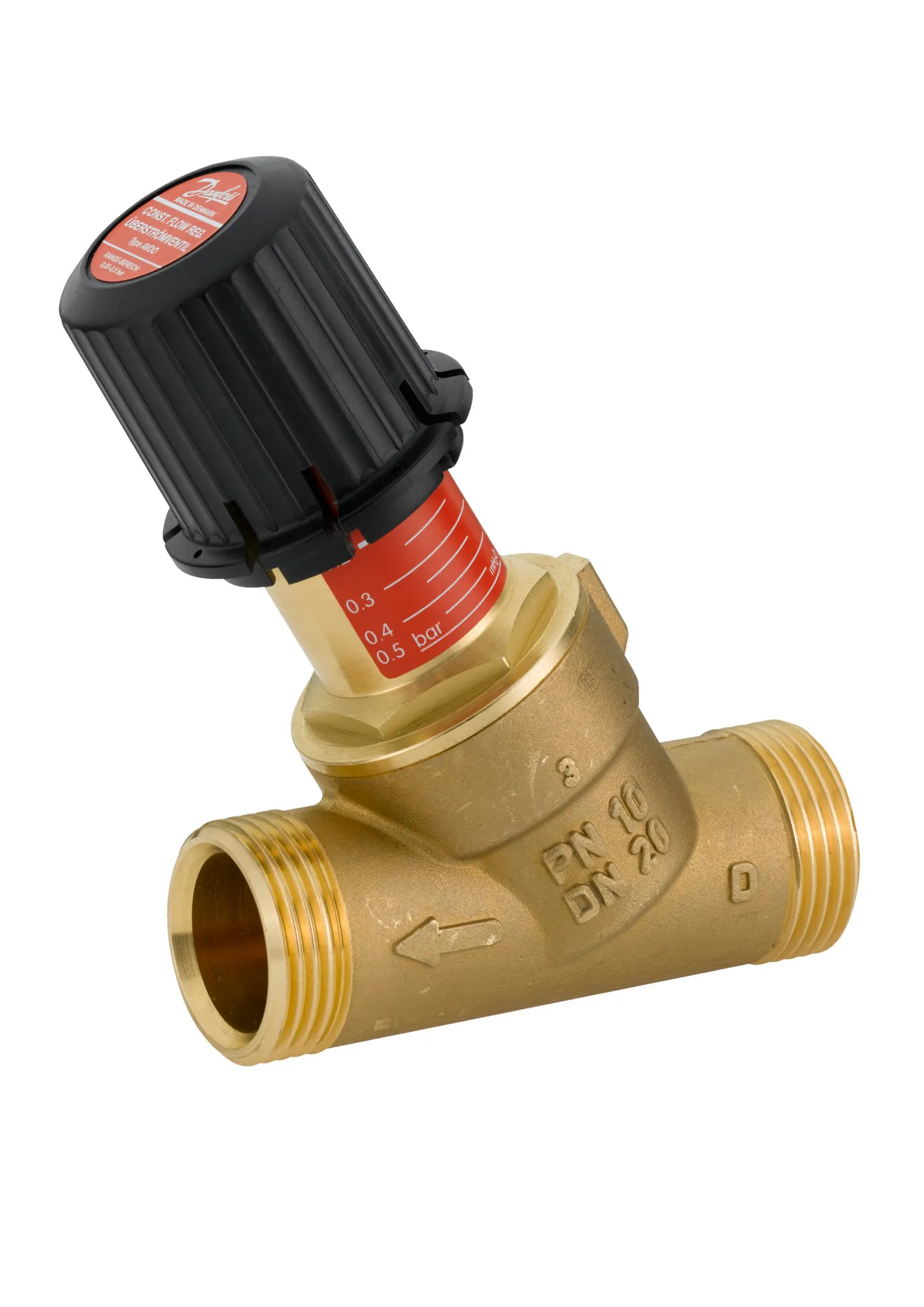

003L602501 Danfoss: AVDO 3/4" brass pressure regulator
Gross weight
0.971 Kilogram
Net weight
0.971 Kilogram
Connection size in
3/4
Connection size out
3/4"
Connection types
Union solder
Connections
3/4"
Contain batteries
No
Description
AVDO 3/4" brass pressure regulator
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
Flow temperature [°C] [Max]
120 °C
Inlet Connection
Soldered
Inlet connection type
Soldered
Outlet connection type
Soldered
Product group
Automatic Bypass Control
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO Bypass Control
Valve size
Âľ"
Working pressure [bar] [Max]
10 bar
