003L6028

Part Number: 003L6028
003L6028
Manufacturer
Danfoss
Part number
003L6028
Category

Product Information

Extended Description

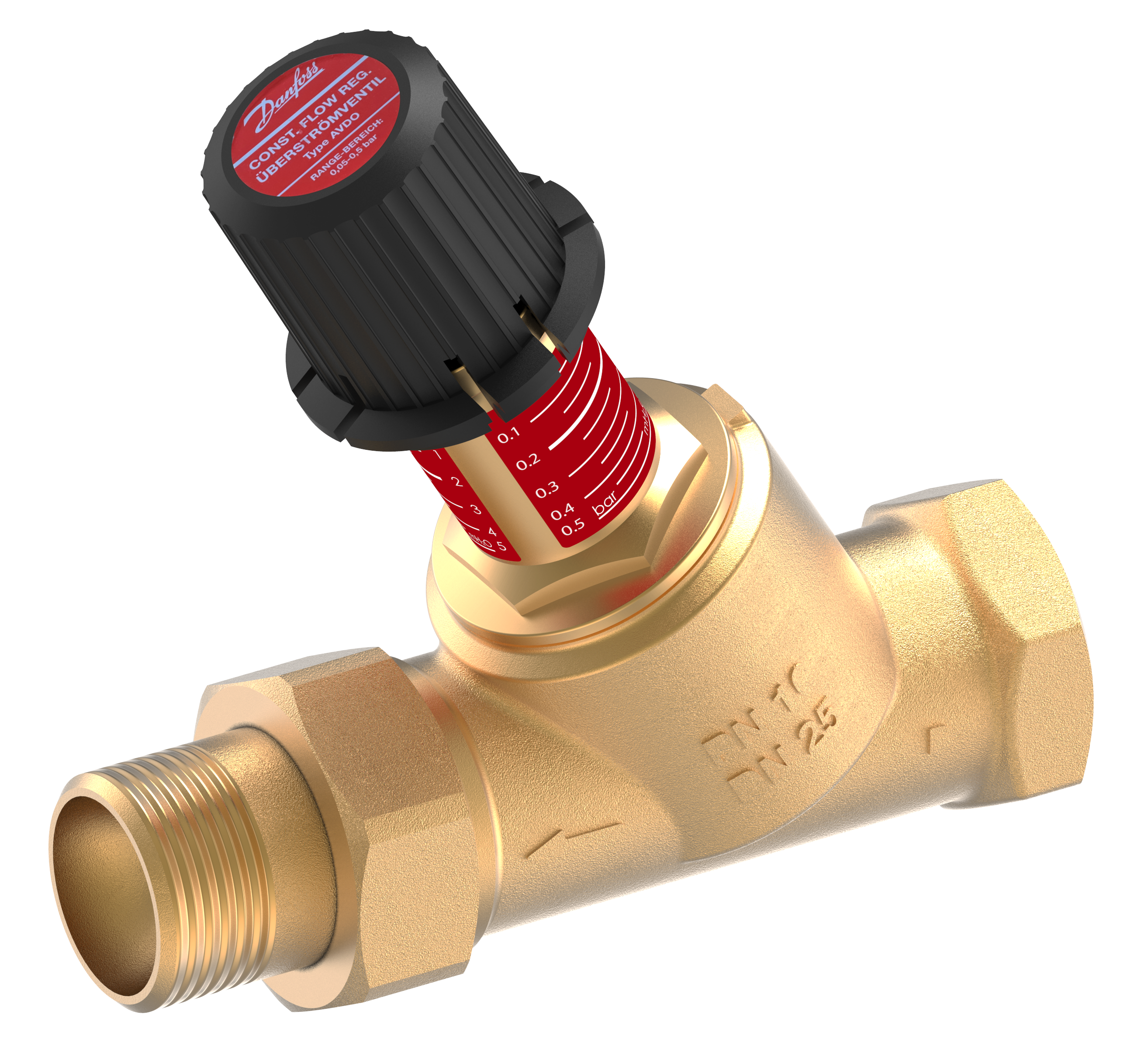

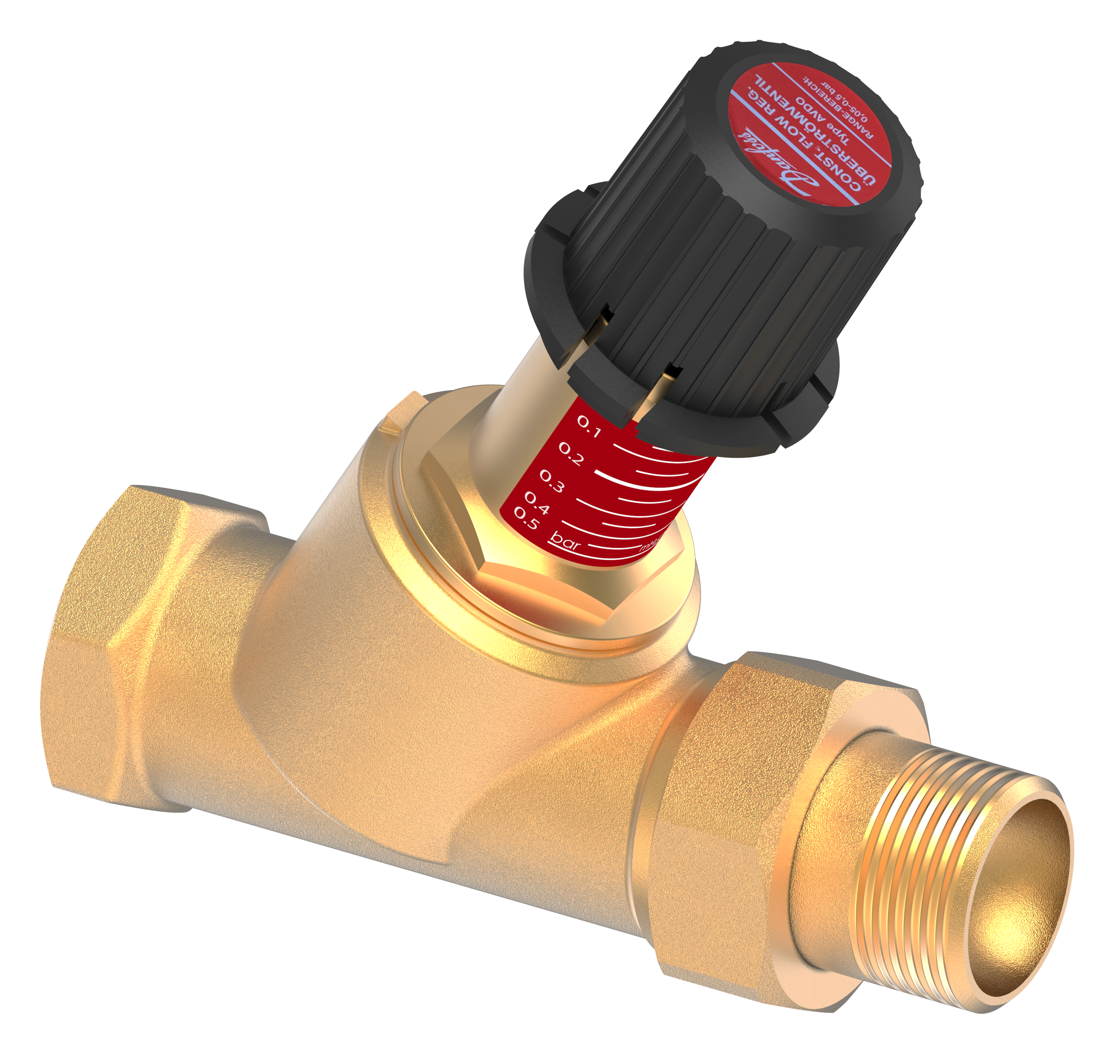

003L6028 Danfoss: Self-acting constant flow valve
Gross weight
1.208 Kilogram
Net weight
1.16 Kilogram
Volume
1.092 Liter
EAN
5702420018065
Connection size in
Rp 1
Connection size out
R 1
Connection types
Threaded
Connections
1"
Contain batteries
No
Description
Self-acting constant flow valve
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
EU RoHS compliance
Yes with exemptions
Flow temperature [°C] [Max]
120 °C
Inlet connection type
Internal thread
Outlet connection type
External thread
Product group
Automatic Bypass Control
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
7b37c0d6-8f7d-4b5c-b1b0-5f93cc0ad594
SCIP dossier product name
AVDO COMMERCIAL 25
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 25
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO AVDO - Installation and Commissioning Guide Instructions for AVDO Automatic By-pass Valve AVDO AVDO Automatic Bypass Control Instructions AVDO / AVDO accessories / AVDO bypass control Danfoss MD VJLXA102.05 Automatic Bypass Control, AVDO, DN 25, Straight, Internal thread, External thread 003L6028 AVDO_Straight_DN25_Tailpiece_003L6028_STEP AVDO_Straight_DN25_Tailpiece_003L6028_2D AVDO_Straight_DN25_Tailpiece_003L6028_3D Automatic Bypass Control, AVDO, DN 25, Straight, Internal thread, External thread 003L6028 Automatic Bypass Control, AVDO, DN 25, Straight, Internal thread, External thread 003L6028
