003L6030

Part Number: 003L6030
003L6030
Manufacturer
Danfoss
Part number
003L6030
Category

Product Information

Extended Description

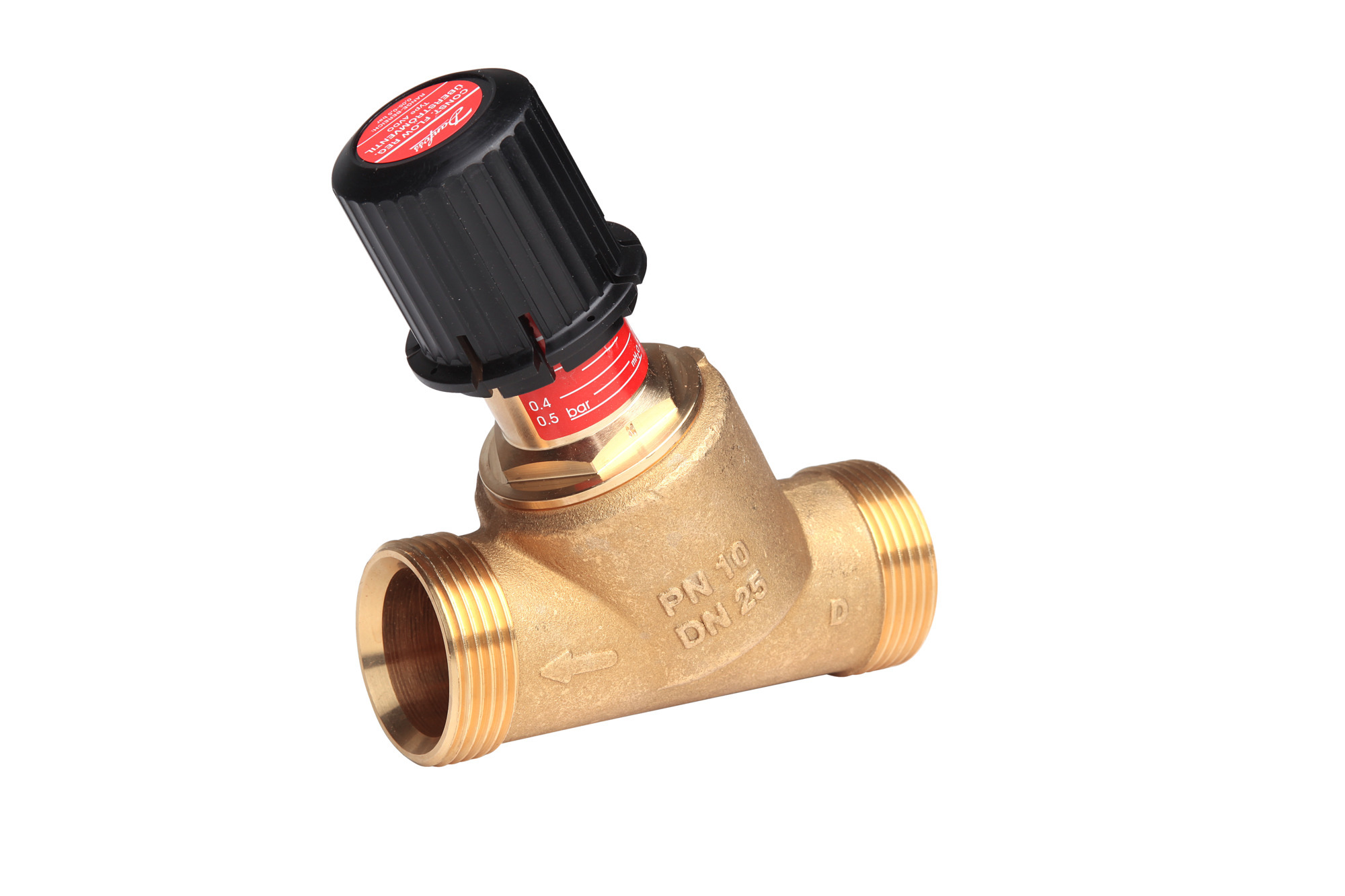

003L6030 Danfoss: Self-acting constant flow valve
Gross weight
0.948 Kilogram
Net weight
0.948 Kilogram
Volume
1.11 Liter
EAN
5702420018034
Connection size in
G 1ÂĽ A
Connection size out
G 1ÂĽ A
Connection types
Threaded
Connections
1"
Contain batteries
No
Description
Self-acting constant flow valve
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
Flow temperature [°C] [Max]
120 °C
Inlet connection type
External thread
Outlet connection type
External thread
Product group
Automatic Bypass Control
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
7b37c0d6-8f7d-4b5c-b1b0-5f93cc0ad594
SCIP dossier product name
AVDO COMMERCIAL 25
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 25
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO AVDO - Installation and Commissioning Guide Instructions for AVDO Automatic By-pass Valve AVDO AVDO Automatic Bypass Control Instructions AVDO / AVDO accessories / AVDO bypass control Danfoss MD VJLXA102.05 003L6030 Automatic Bypass Control 003L6030 AVDO 25 Automatic Bypass Control 003L6030 AVDO 25 AVDO_DN15-25_Straight_External_RFA AVDO_DN25_Straight_External_003L6030_IFC AVDO_Straight_DN25_003L6030_STEP AVDO_Straight_DN25_003L6030_3D AVDO_Straight_DN25_003L6030_2D
