003L6115
Part Number: 003L6115
Product Information
Extended Description

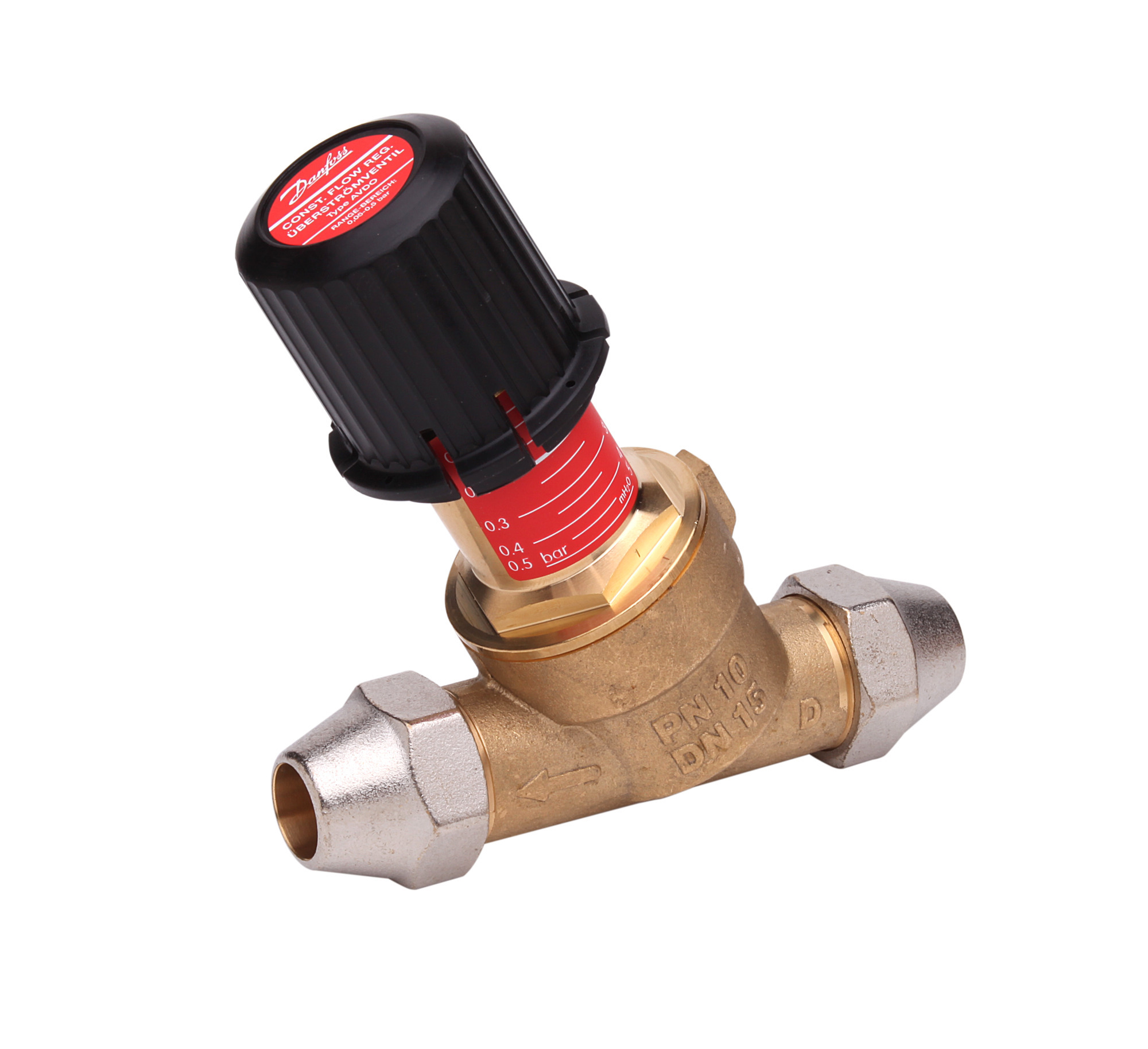

003L6115 Danfoss: Self-acting constant flow valve, with fittings
Gross weight
0.776 Kilogram
Net weight
0.775 Kilogram
Volume
1.13 Liter
EAN
5702420018119
Connection size in
15 mm
Connection size out
15 mm
Connection types
Threaded
Connections
1/2"
Contain batteries
No
Description
Self-acting constant flow valve, with fittings
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
Flow temperature [°C] [Max]
120 °C
Inlet connection type
External thread
Outlet connection type
External thread
Product group
Automatic Bypass Control
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 15
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO
AVDO - Installation and Commissioning Guide
Instructions for AVDO
Automatic By-pass Valve AVDO
AVDO Automatic Bypass Control Instructions
AVDO / AVDO accessories / AVDO bypass control
Danfoss MD VJLXA102.05
003L6115 Automatic Bypass Control, L
003L6115 Automatic Bypass Control, R
003L6115 Automatic Bypass Control, F
AVDO_Straight_DN15_003L6115_STEP
AVDO_Straight_DN15_003L6115_2D
AVDO_Straight_DN15_003L6115_3D
