003L6122
Part Number: 003L6122
Product Information
Extended Description

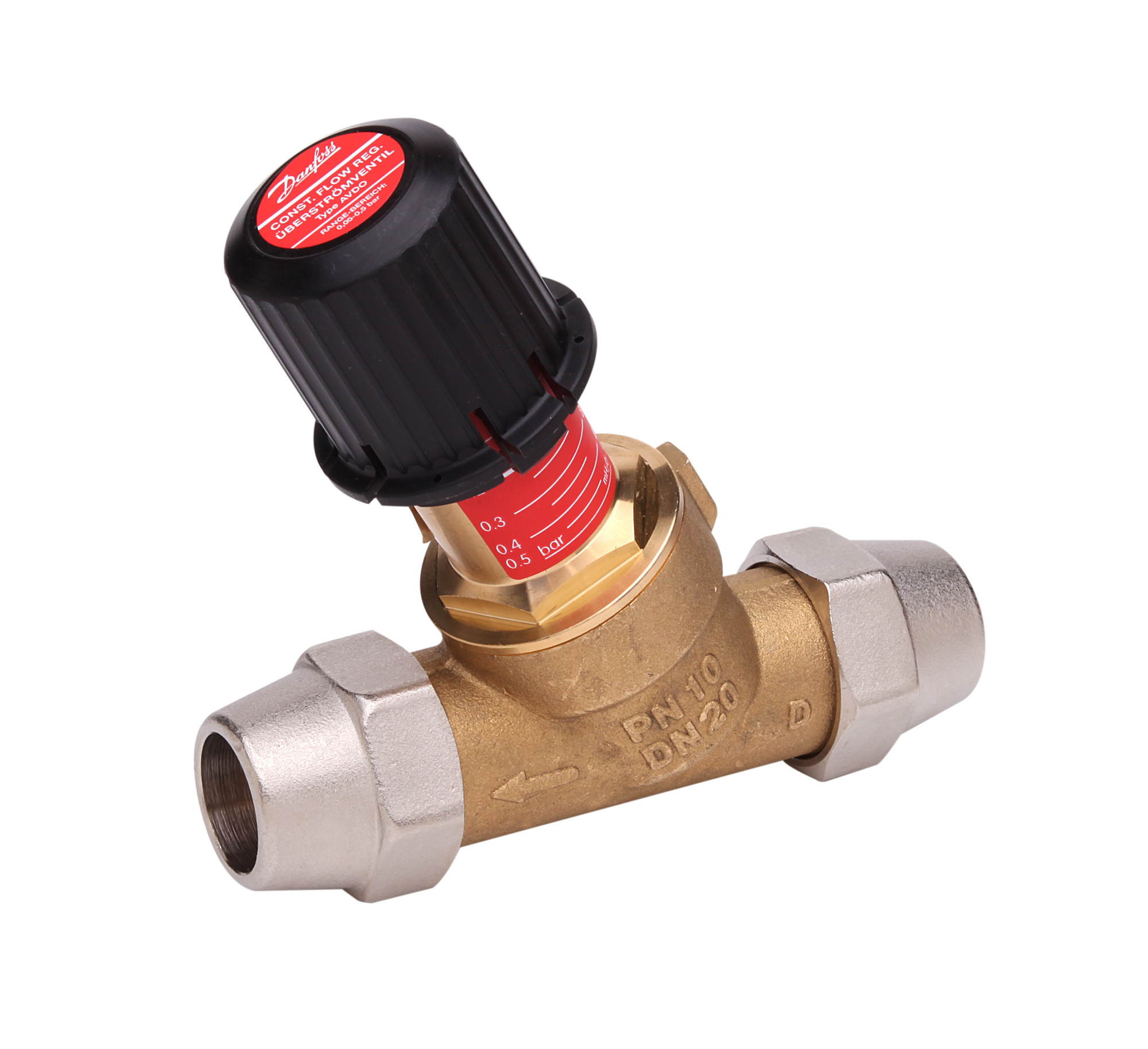

003L6122 Danfoss: Self-acting constant flow valve, with fittings
Gross weight
0.972 Kilogram
Net weight
0.972 Kilogram
Volume
1.11 Liter
EAN
5702420018072
Connection size in
22 mm
Connection size out
22 mm
Connection types
Threaded
Connections
3/4"
Contain batteries
No
Description
Self-acting constant flow valve, with fittings
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
Flow temperature [°C] [Max]
120 °C
Inlet connection type
External thread
Outlet connection type
External thread
Product group
Automatic Bypass Control
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 20
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO
AVDO - Installation and Commissioning Guide
Instructions for AVDO
Automatic By-pass Valve AVDO
AVDO Automatic Bypass Control Instructions
AVDO / AVDO accessories / AVDO bypass control
Danfoss MD VJLXA102.05
003L6122 Automatic Bypass Control, L
003L6122 Automatic Bypass Control, F
003L6122 Automatic Bypass Control, R
AVDO_Straight_DN20_003L6122_STEP
AVDO_Straight_DN20_003L6122_3D
AVDO_Straight_DN20_003L6122_2D
