003L6128
Part Number: 003L6128
Product Information
Extended Description

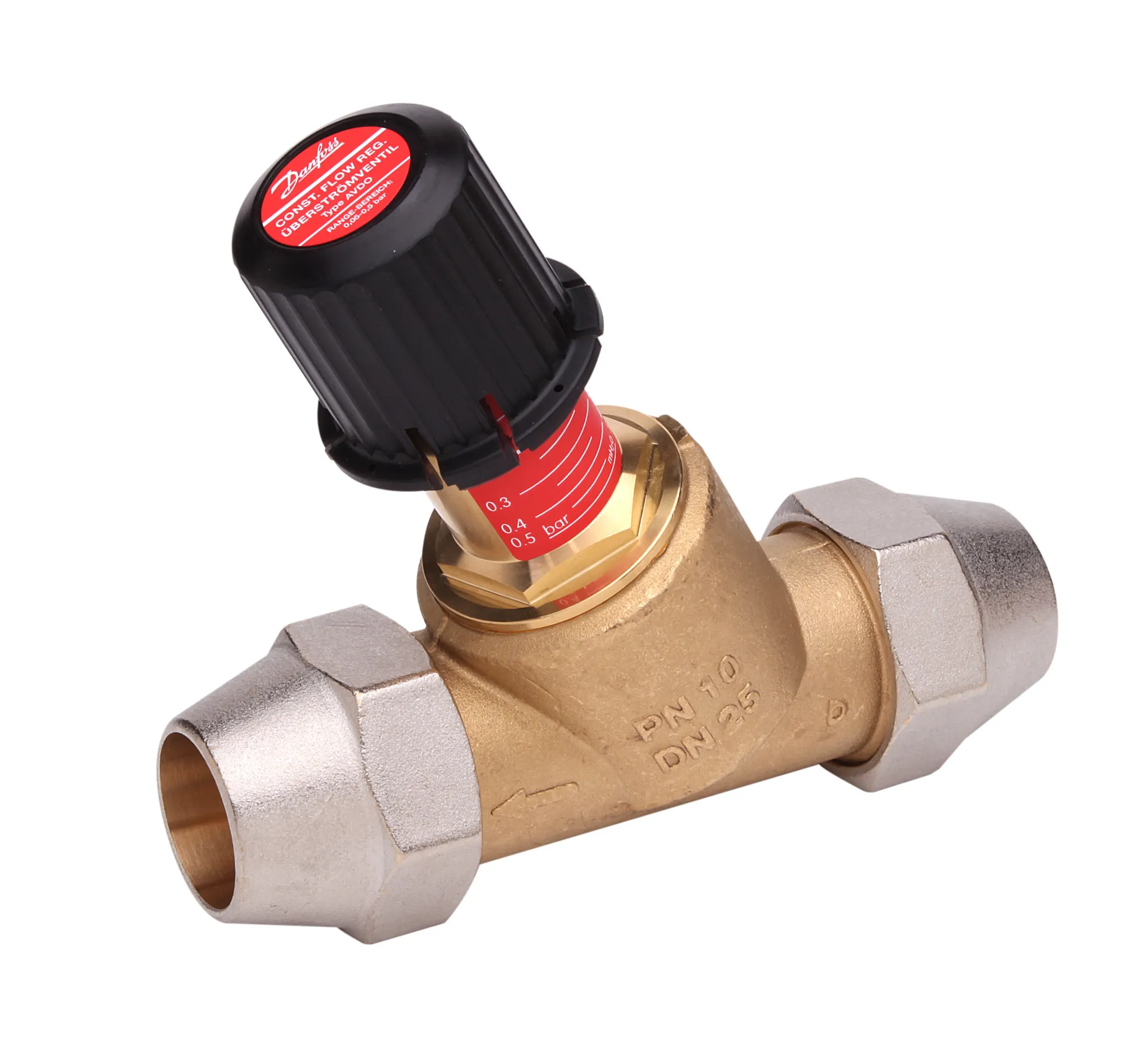

003L6128 Danfoss: Self-acting constant flow valve, with fittings
Gross weight
1.342 Kilogram
Net weight
1.342 Kilogram
Volume
1.11 Liter
EAN
5702420018102
Connection size in
28 mm
Connection size out
28 mm
Connection types
Threaded
Connections
1"
Contain batteries
No
Description
Self-acting constant flow valve, with fittings
Design
Straight
Differential pressure range [bar] [Max]
0.5 bar
Flow temperature [°C] [Max]
120 °C
Inlet connection type
External thread
Outlet connection type
External thread
Product group
Automatic Bypass Control
Setting [bar] [Max]
0.5 bar
Setting [bar] [Min]
0.05 bar
Type
AVDO
Valve size
DN 25
Working pressure [bar] [Max]
10 bar
Automatic bypass control AVDO
AVDO - Installation and Commissioning Guide
Instructions for AVDO
Automatic By-pass Valve AVDO
AVDO Automatic Bypass Control Instructions
AVDO / AVDO accessories / AVDO bypass control
Danfoss MD VJLXA102.05
003L6128 Automatic Bypass Control, L
003L6128 Automatic Bypass Control, R
003L6128 Automatic Bypass Control, F
AVDO_Straight_DN25_003L6128_STEP
AVDO_Straight_DN25_003L6128_3D
AVDO_Straight_DN25_003L6128_2D
