003L7641

Part Number: 003L7641
003L7641
Manufacturer
Danfoss
Part number
003L7641
Category

Product Information

Extended Description

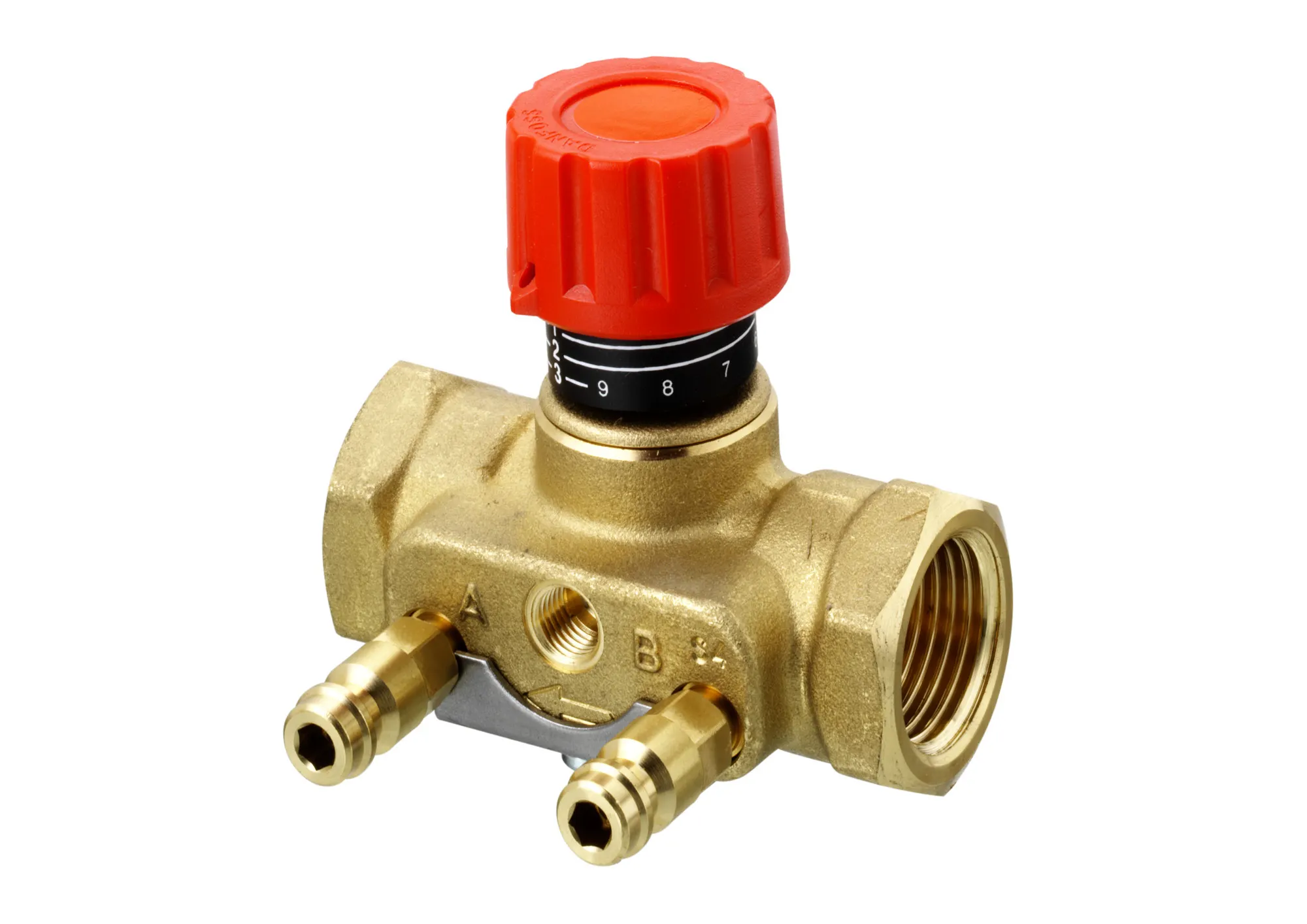

003L7641 Danfoss: ASV-I DN 15, internal thread, adjustment valve
Gross weight
0.348 Kilogram
Net weight
0.33 Kilogram
Volume
1.756 Liter
EAN
5702421527917
China RoHS compliance
Out of scope
Connection types
Internal thread
Contain batteries
No
Description
ASV-I DN 15, internal thread, adjustment valve
Differential pressure over the valve [kPa] [Max]
150 KPa
Drain function
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow limitation
Yes
Kvs values [m=C2=B3/h]
1.6 m=C2=B3/h
Media temperature [=C2=B0C] [Max]
120 =C2=B0C
Media temperature [=C2=B0C] [Min]
-20 =C2=B0C
Mounting position
Supply pipe
Pressure class
PN 16
Product group
Automatic balancing
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
4567dfbb-3fcc-4ed0-933d-1de3340929b3
SCIP dossier product name
"ASV-I/M"
Setting scale
Yes
Shut-off function
Yes
Type
ASV-I
UK RoHS compliance
Out of scope
Valve body material
Brass
Valve size
DN 15
003L8145
Two test plugs and one locking plate
003L8174
Plug for impulse tube connection (10 pcs.)
003L8155
Shut-off knob for ASV-I DN 15 (black)
