003N0038

Part Number: 003N0038
003N0038
Manufacturer
Danfoss
Part number
003N0038
Category

Product Information

Extended Description

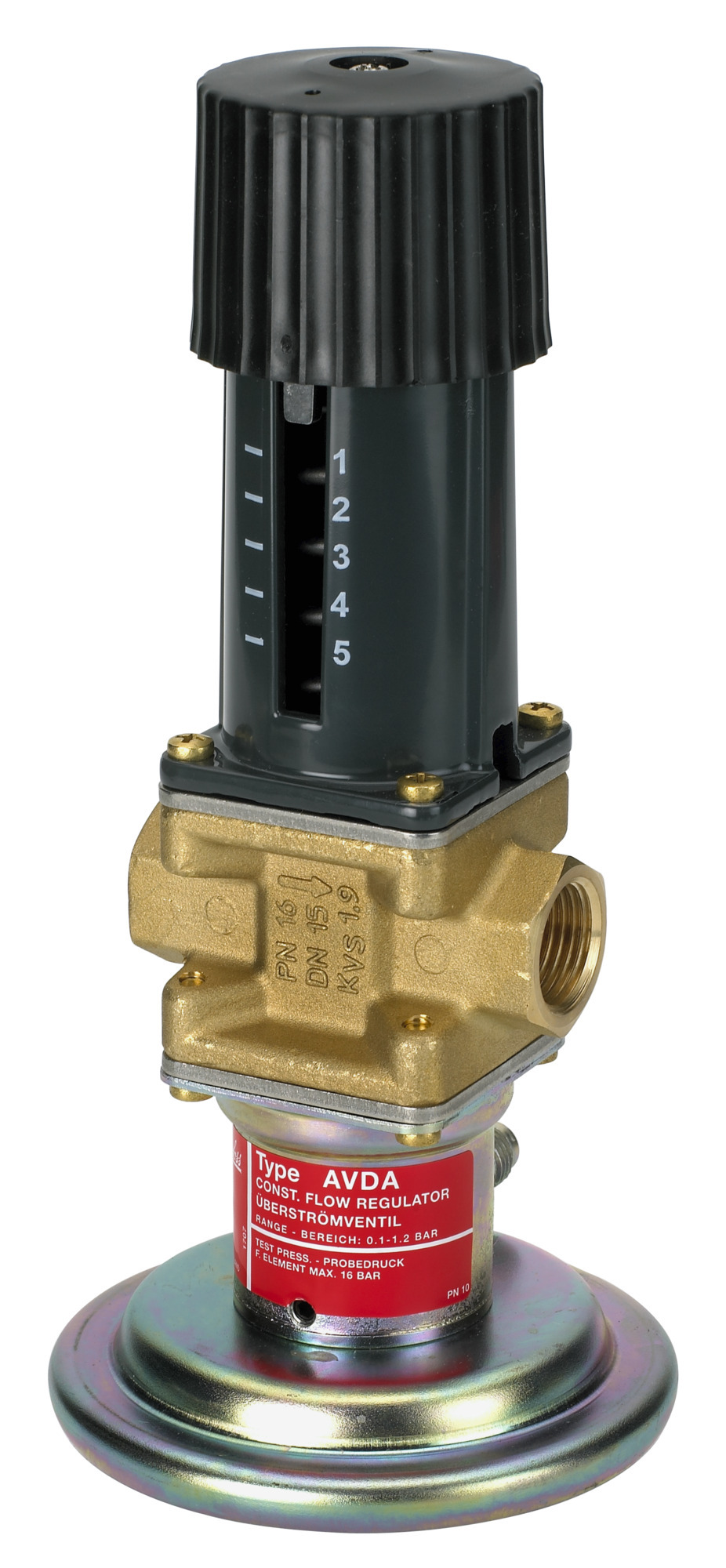

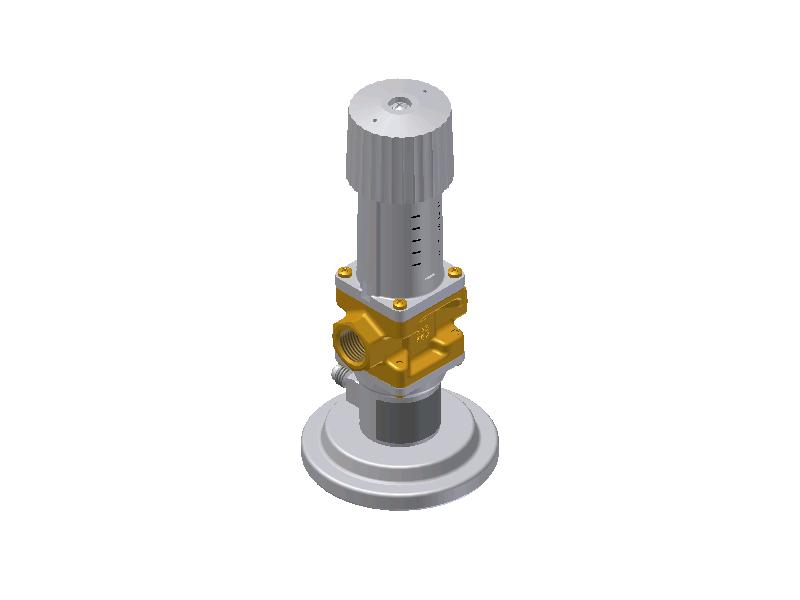

003N0038 Danfoss: AVDA 15 Pressure regulator 0.1-1.2 bar
Gross weight
2.176 Kilogram
Net weight
2.111 Kilogram
Volume
4.59 Liter
EAN
5702421100011
Application
District Heating
Cavitation factor
0.4
China RoHS compliance
Out of scope
Connection size
Rp 1/2
Connection types
Internal thread
Contain batteries
No
Description
AVDA 15 Pressure regulator 0.1-1.2 bar
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
7 bar
Differential pressure setting [bar] [Max]
1.2 bar
Differential pressure setting [bar] [Min]
0.1 bar
EU RoHS compliance
Out of scope
Flow control
No
Flow limitation
No
Function
Diff. press. relief controller
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
1.9 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
10 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Bypass
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 10
Pressure controller
Differential pressure relief controller
Pressure nominal [bar]
10 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Setting Type
Adjustable
Stem position
Normally closed
Type
AVDA
UK RoHS compliance
Out of scope
Valve body material
Hot pressed brass, mat. No. 2.0402 (Ms 58)
Valve cone DP material
NBR-rubber
Valve size
DN 15
003N0065
Diaphragms, EPDM, Water (AGFW FW510)
003N2030
AVTB, FJV, AVD(S)A Valve DN15 i.thr, I-p
003N4006
AVTB, FJV, AVD(S)A Repair set DN15
065F0006
Valve st.boxRAV,VMT/A/V,KOVM,AVD(S)A I-p
