003N0051

Part Number: 003N0051
003N0051
Manufacturer
Danfoss
Part number
003N0051
Category

Product Information

Extended Description

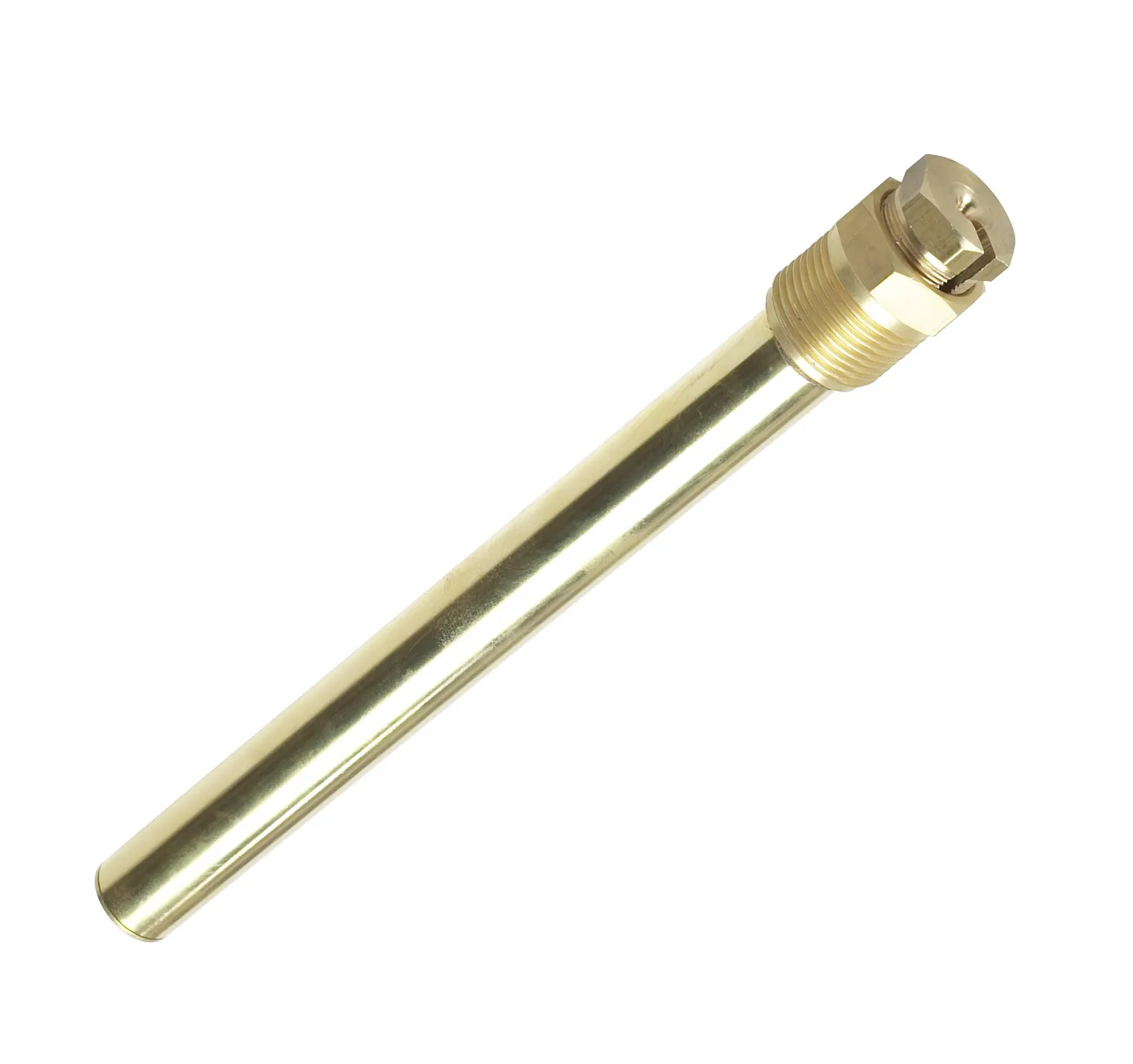

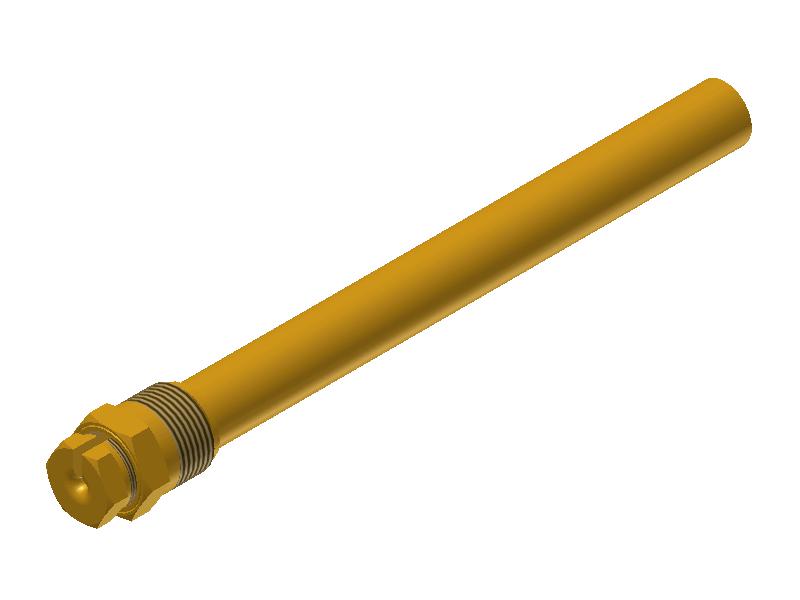

003N0051 Danfoss: Accessory Sensor Pocket 3/4" NPT, Packing format: Multi pack, Quantity per packing format: 72
Gross weight
0.21 Kilogram
Net weight
0.198 Kilogram
Volume
0.221 Liter
EAN
5702423008070
China RoHS compliance
Yes
Connection Internal/External
External
Connection size [in]
3/4 - 14
Connection standard
ANSI/ASME B1.20.1
Connection type
NPT
Contain batteries
No
EU RoHS compliance
Out of scope
Material Spec.
Brass
Packing format
Multi pack
Product group
Water valves accessories
Product Name Description
Sensor pocket
Quantity per packing format
72 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
d0092edb-0ce7-409a-9808-fda08274cc60

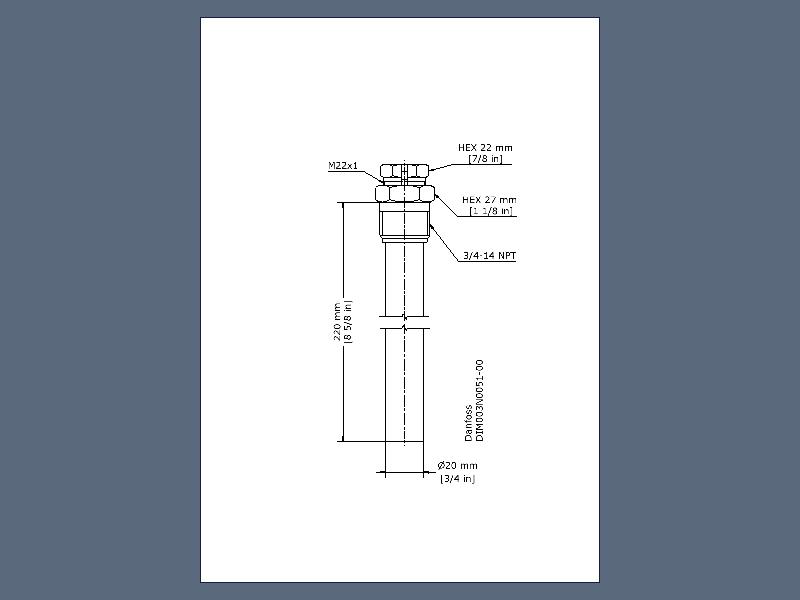

Sensor pocket length min. [in]
8 11/16 in
Sensor pocket length min. [mm]
220 mm
Sensor size (Ø x L) [in]
23/32 x 8 1/4 in
Sensor size (Ø x L) [mm]
18 x 210 mm
Type
Accessory
Type designation
Sensor pocket
UK RoHS compliance
Out of scope
Used for product
AVTA,AVTB
Thermostatic operated water valve type AVTA Sensor pocket AVTA Immersion sensor Accessory Sensor Pocket Accessory Sensor Pocket
