003N0130
Part Number: 003N0130
Product Information
Extended Description

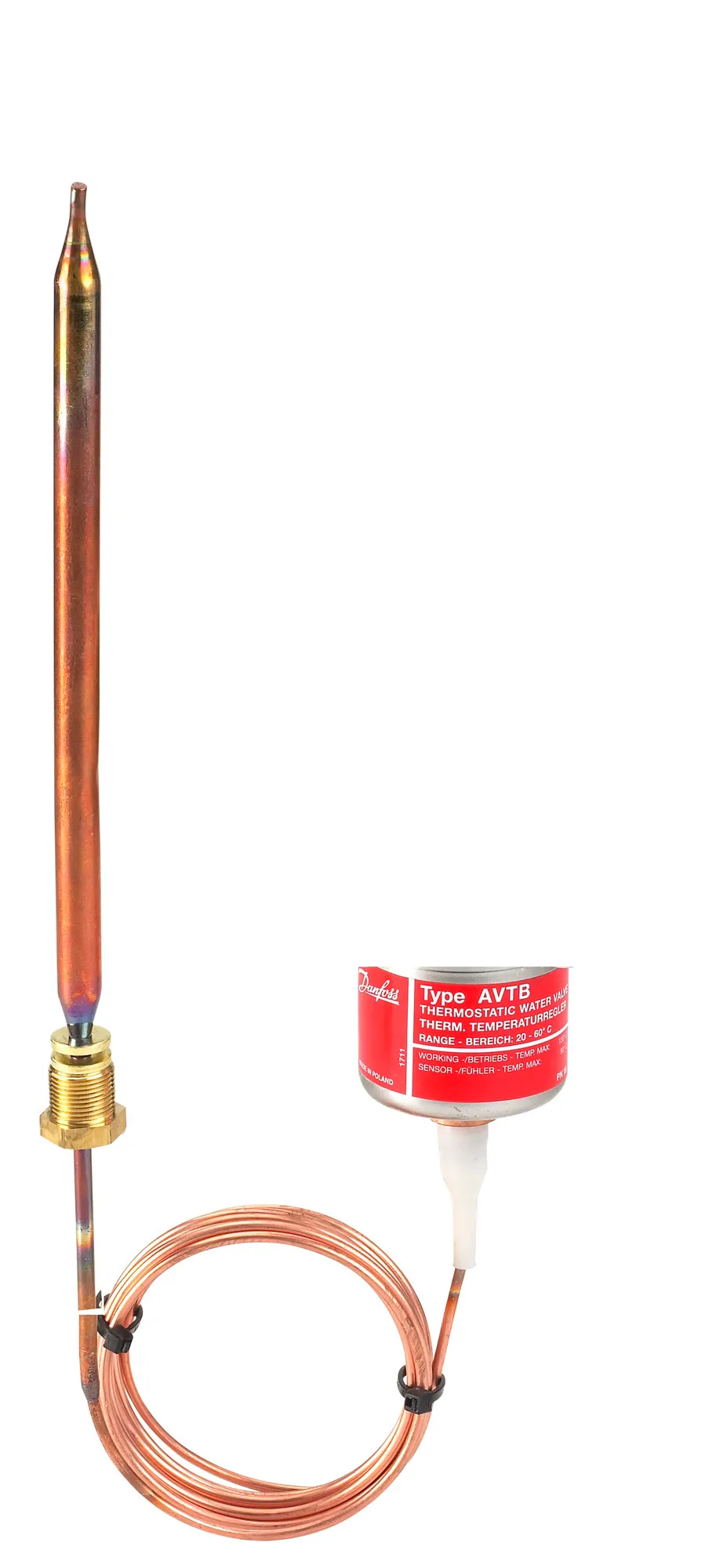

003N0130 Danfoss: AVTB Thermost.act. 20-60 2m 9,5x180mm
Gross weight
0.428 Kilogram
Net weight
0.409 Kilogram
Volume
1.954 Liter
EAN
5702421100066
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Capillary tube length [m]
2 m
China RoHS compliance
Out of scope
Contain batteries
No
Description
AVTB Thermost.act. 20-60 2m 9,5x180mm
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Function
Temp. controller
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
90 °C
Product group
Actuators - Temperature
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
180 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
60 °C
Temperature setting range [°C] [Min]
20 °C
Time constant [sec]
3 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AVTB
UK RoHS compliance
Out of scope
