003N5117
Part Number: 003N5117
Product Information
Extended Description

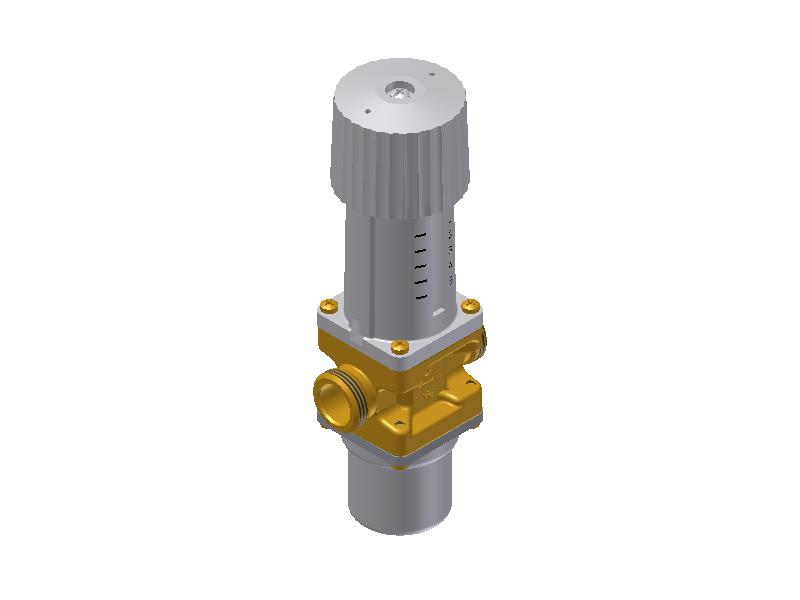

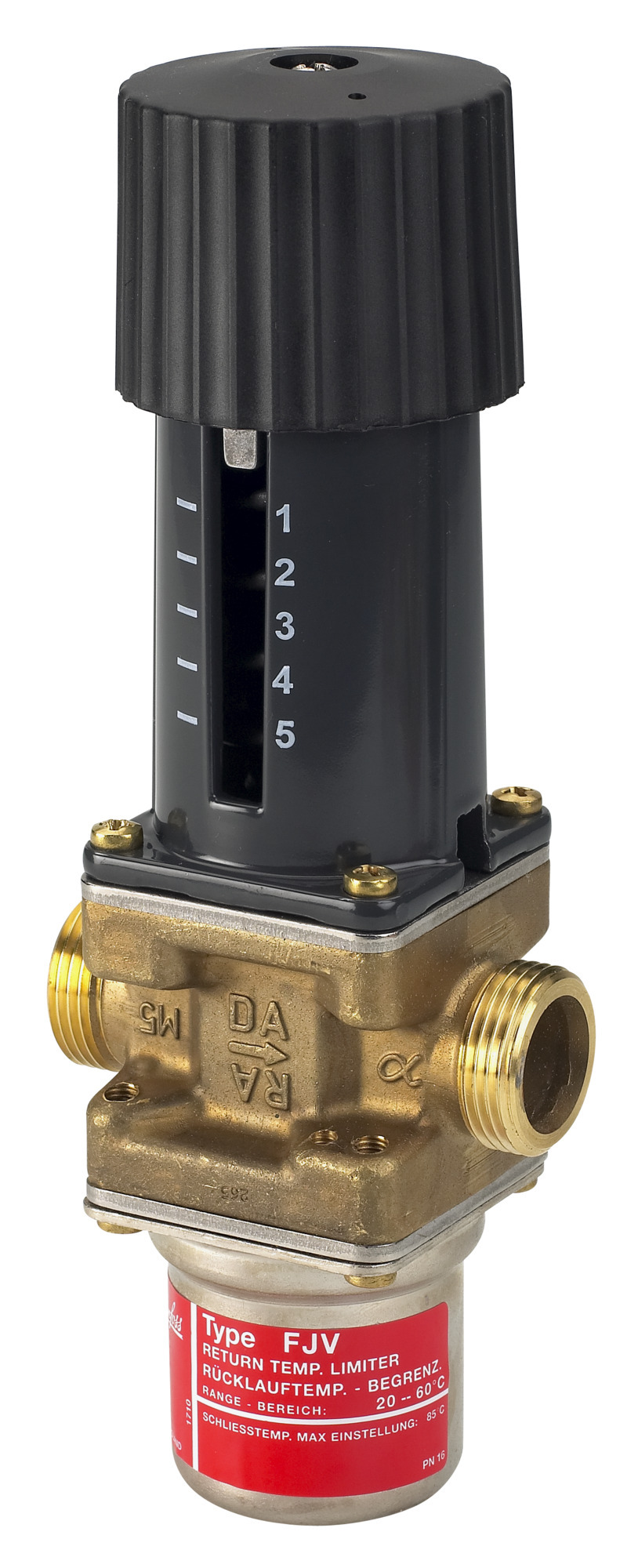

003N5117 Danfoss: FJV 15 Thermostatic valve 20-60#C
Gross weight
1.334 Kilogram
Net weight
1.267 Kilogram
Volume
5.012 Liter
EAN
5702421100523
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
ETA VA 1.54/18952
Capillary tube length [m]
0 m
Cavitation factor
0.4
Cone /seat sealing material
NBR / DZR brass BS 2872 / CZ132
Connection size
G 3/4 A
Connection standard
ISO 228/1
Connection types
External Thread
Contain batteries
No
Description
FJV 15 Thermostatic valve 20-60#C
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Yes with exemptions
Flow characteristic
Linear
Flow control
No
Function
Temp. limiter
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
Yes
Kvs values [mÂł/h]
1.9 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Return
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Temperature controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Return limiter function
Yes
Temperature control
No
Temperature setting range [°C] [Max]
60 °C
Temperature setting range [°C] [Min]
20 °C
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
FJV
UK RoHS compliance
Out of scope
Valve body material
DZR brass BS 2872/CZ132
Valve cone material
NBR rubber
Valve seat material
Cr Ni steel W.no 1.4301
Valve size
DN 15
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
003N0084
FJV Thermostatic actuator 20-60
003N4006
AVTB, FJV, AVD(S)A Repair set DN15
