003N7032

Part Number: 003N7032
003N7032
Manufacturer
Danfoss
Part number
003N7032
Category

Product Information

Extended Description

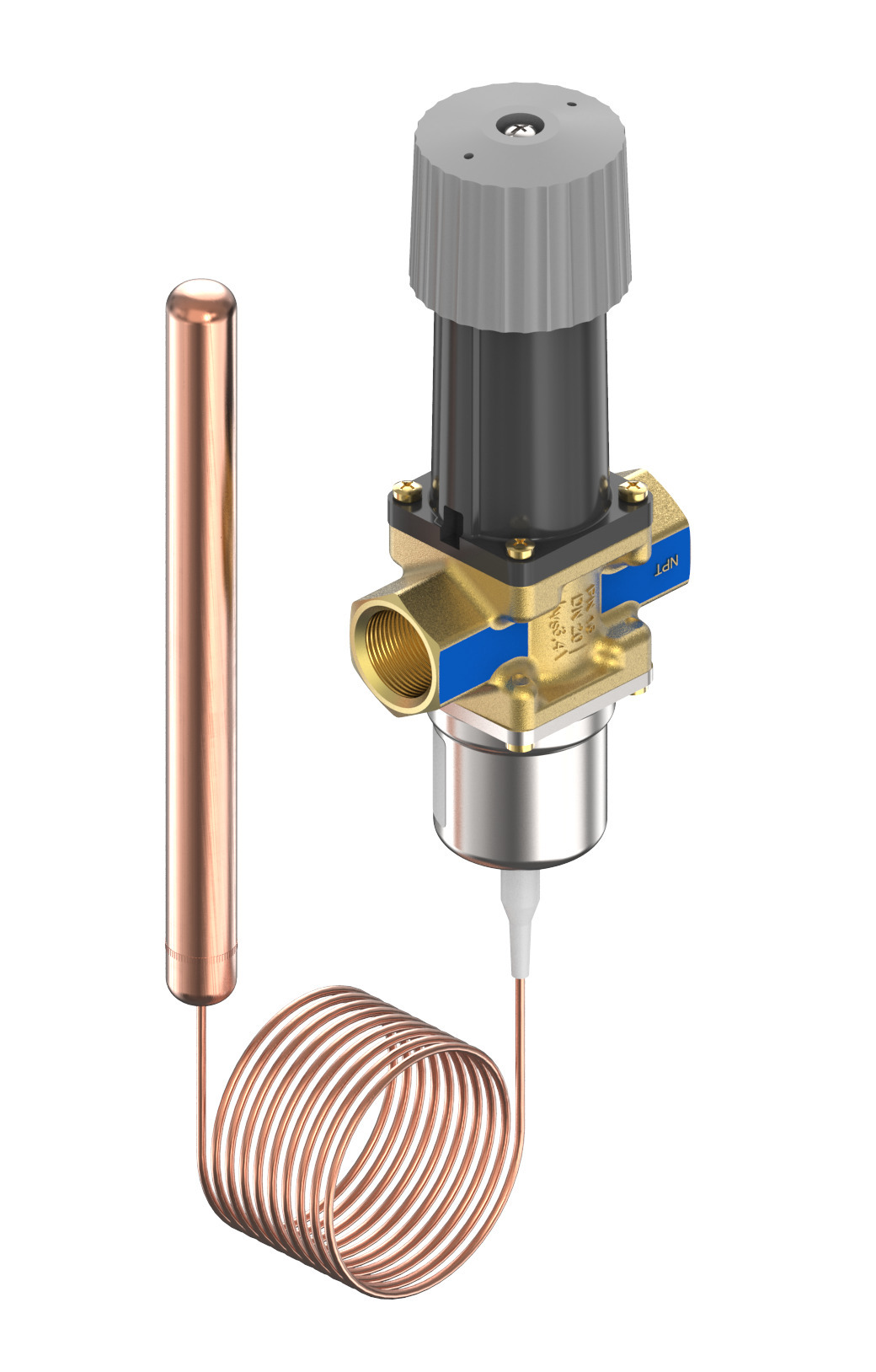

003N7032 Danfoss: AVTB 20 Thermostatic valve 0-30#C
Gross weight
1.739 Kilogram
Net weight
1.652 Kilogram
Volume
3.949 Liter
EAN
5702421101384
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
ETA VA 1.54/18952
Capillary tube length [m]
2 m
Cavitation factor
0.4
China RoHS compliance
Out of scope
Cone /seat sealing material
NBR / Brass W. No 2.0402
Connection size
NPT 3/4
Connection types
Internal thread
Contain batteries
No
Description
AVTB 20 Thermostatic valve 0-30#C
Diameter [mm]
20 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Flow control
No
Function
Temp. controller
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Impulse tube material
Copper mat. No 2.0090
Kvs values [mÂł/h]
3.4 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
2 °C
Media temperature at sensor [°C] [Max]
55 °C
Medium alternative
Glycolic water up to 30%
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Temperature controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rection time close [sec]
15 "
Rection time open [sec]
3 "
Return limiter function
No
Sensor connection
M22x1 / R3/4 ext thread acc. DIN 2999
Temperature control
Yes
Temperature sensor diameter [mm]
18 mm
Temperature sensor length [mm]
210 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
30 °C
Temperature setting range [°C] [Min]
0 °C
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AVTB
UK RoHS compliance
Out of scope
Valve body material
Brass CuZn40Pb2 W. no 2.0402
Valve cone material
NBR rubber
Valve seat material
Cr Ni steel W.no 1.4301
Valve size
DN 20
003N4007
AVTB, FJV, AVD(S)A Repair set DN20
003N0075
Spare part, AVTB; AVTA, Thermostatic element
003N0520
Spare part, AVTB; FJVA; AVTA, Plastic hand knob
003N7100
Thermo. operated water valve, AVTA 20, NPT, 3/4
003N0053
Water valves accessories, Accessory Sensor Pocket 3/4" NPT S.Steel
003N0056
Water valves accessories, Accessory Cap. Tube Gland 3/4" NPT

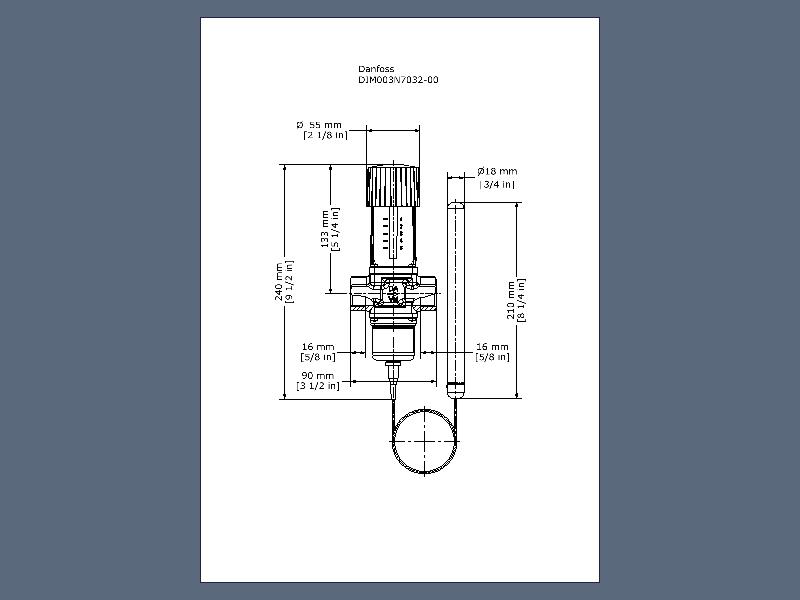

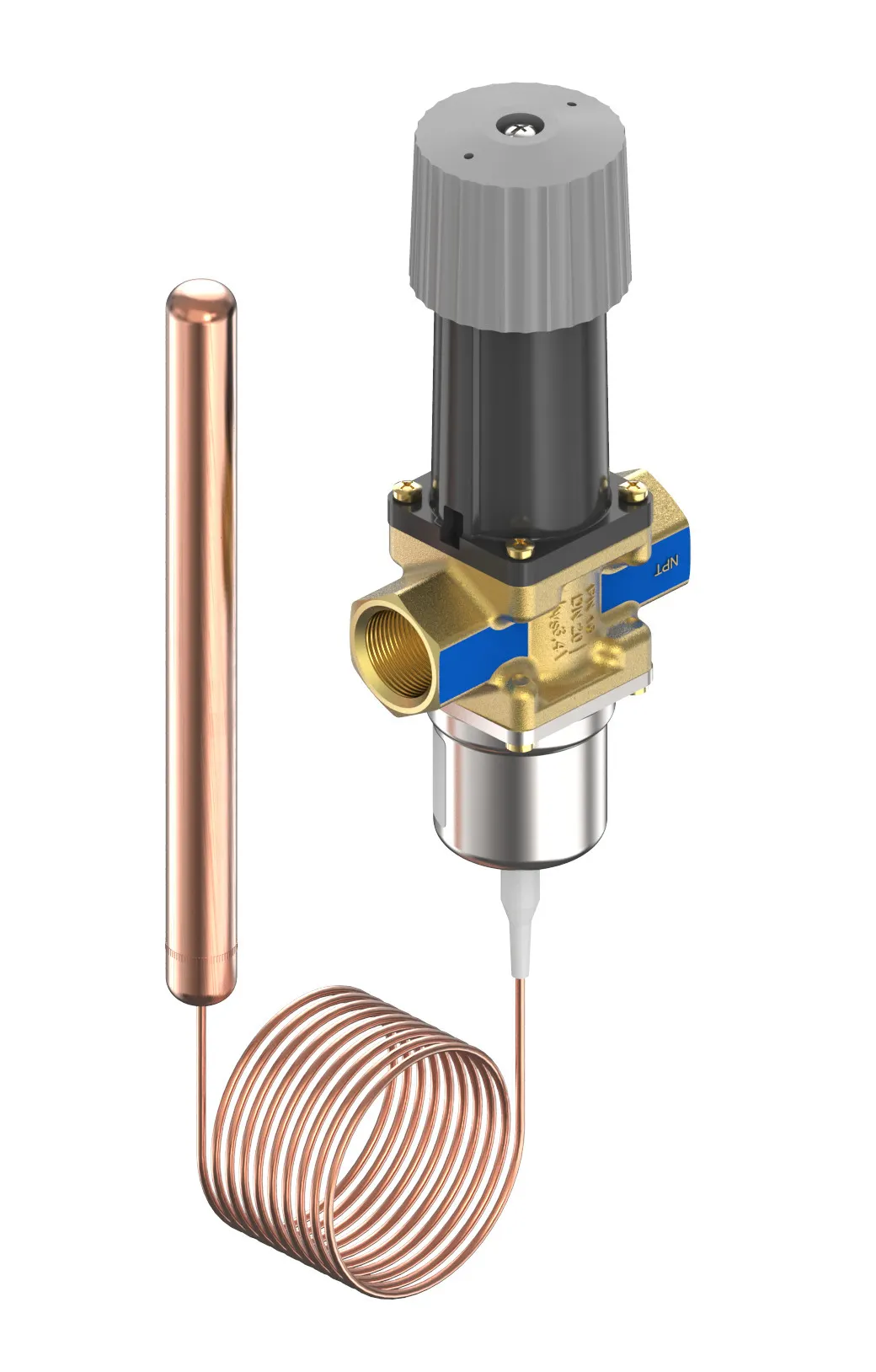

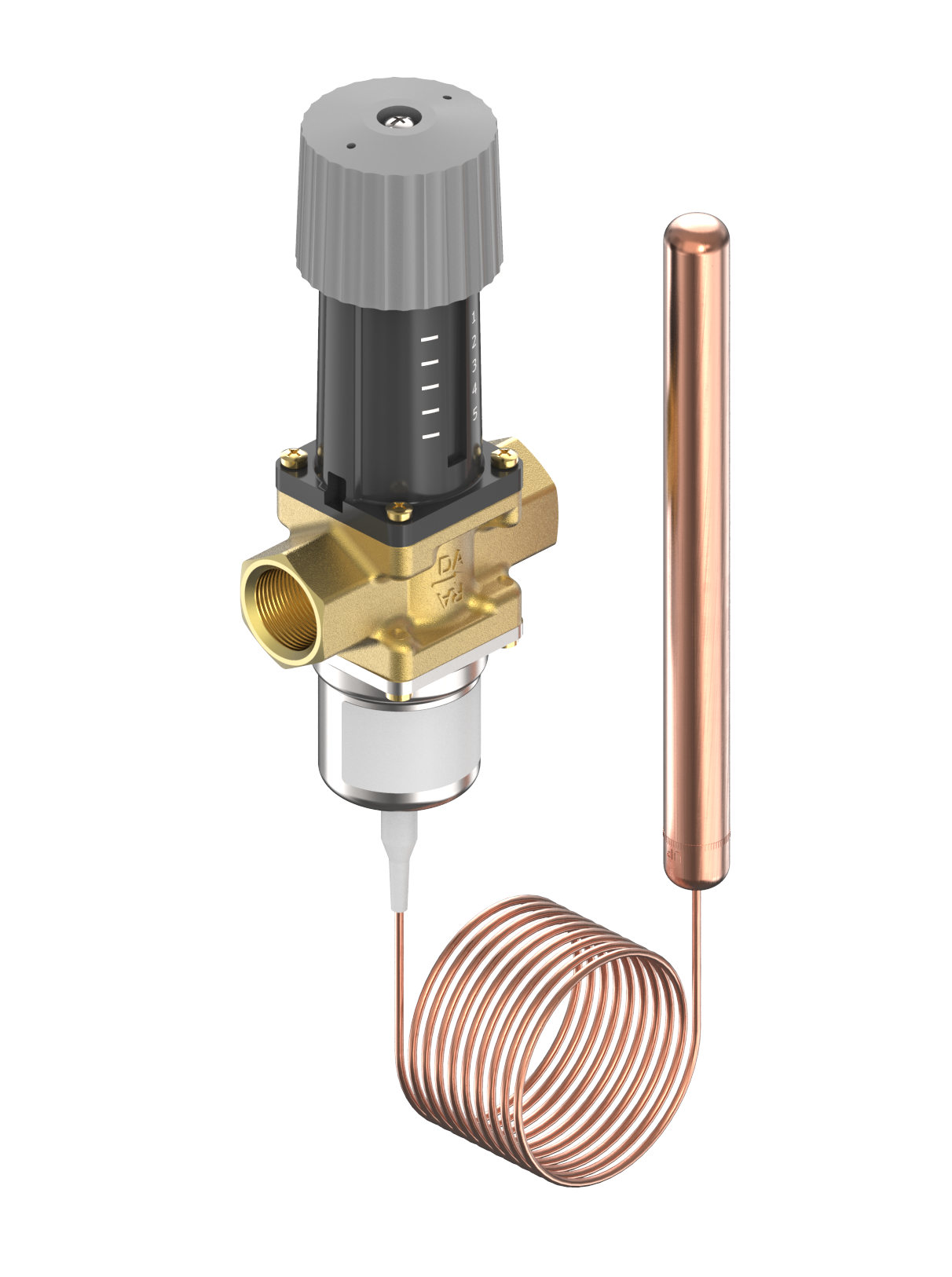

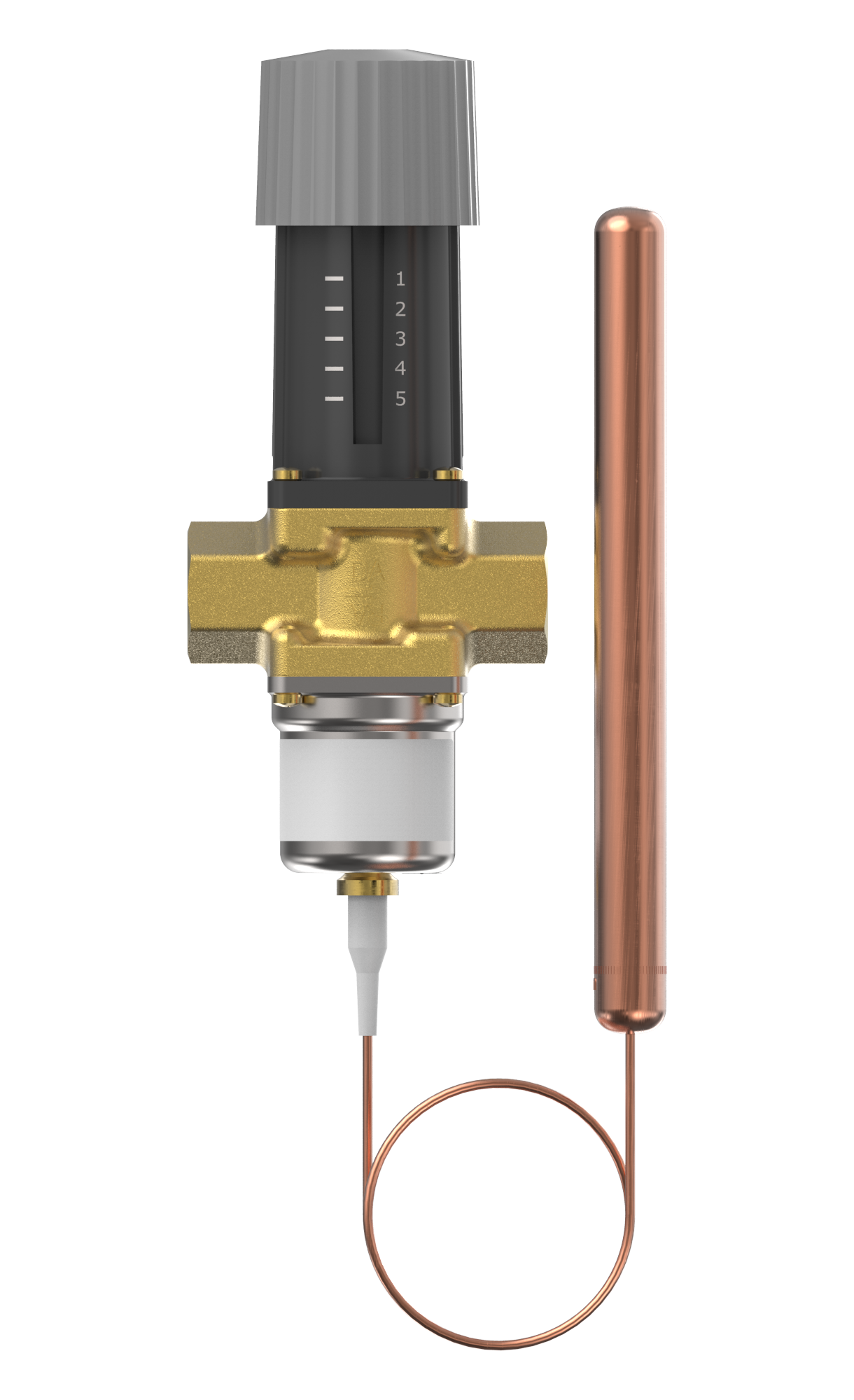

Hydronic Specialties Controls Catalog and Application Guide AVTB AVTB Thermostatic Controller AVTB AVTB Actuators pressure flow and temperature Danfoss MD 003N9613.AB Danfoss MD 003N9614.AA Danfoss MD 090922EN0808101.01 AVTB, PN 16, 3.40 m/h, 0 °C - 30 °C, 2.0 m, Internal thread 003N7032, Left AVTB, PN 16, 3.40 m/h, 0 °C - 30 °C, 2.0 m, Internal thread 003N7032, Right AVTB, PN 16, 3.40 m/h, 0 °C - 30 °C, 2.0 m, Internal thread 003N7032, Front WEB AVTB 20 AVTB 20 THERMOSTATIC VALVE 0-30°C
