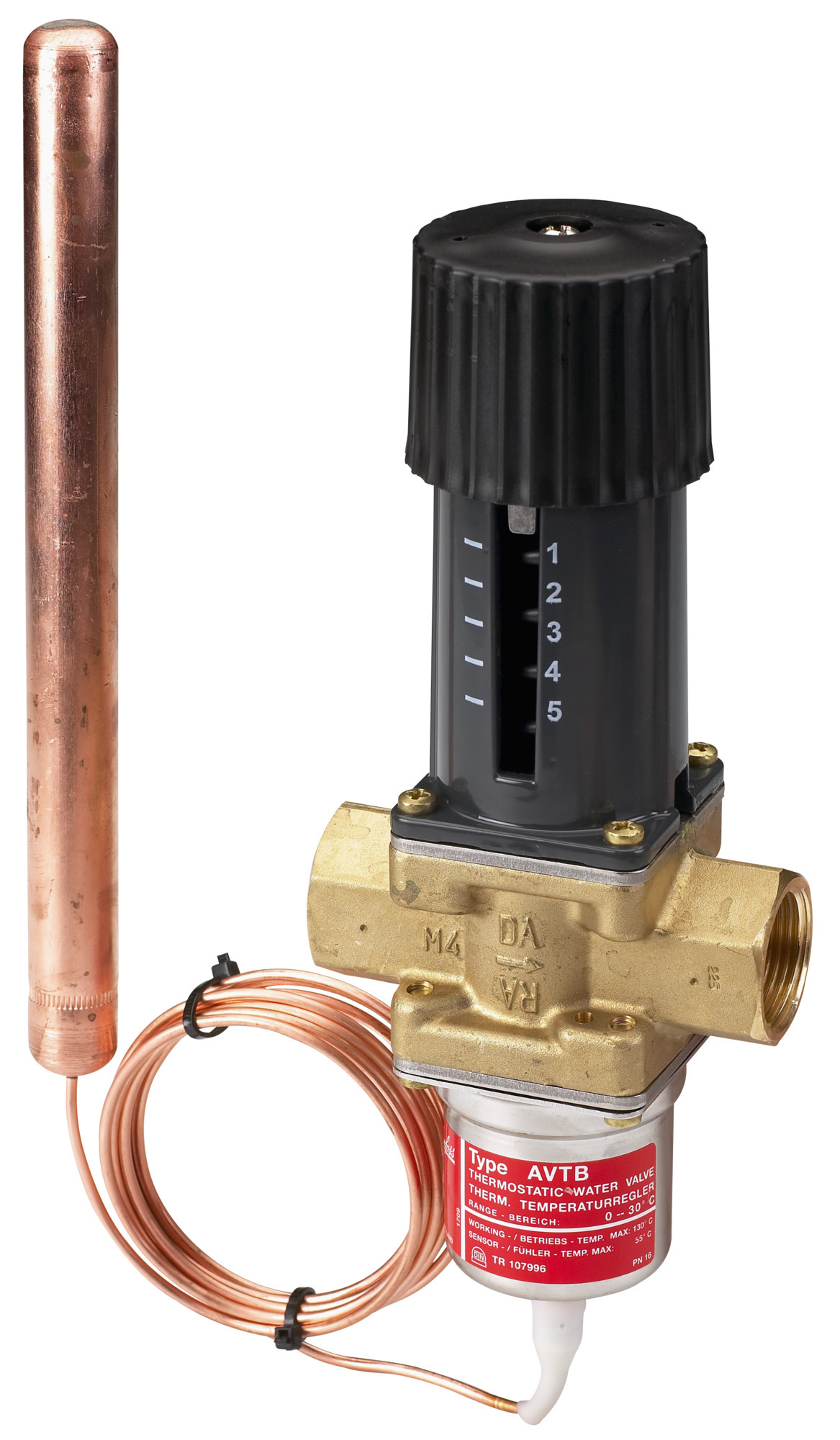

003N7252RA

Part Number: 003N7252RA
003N7252RA
Manufacturer
Danfoss
Part number
003N7252RA
Category

Product Information

Extended Description

003N7252RA Danfoss: 3/4# NPT. BRASS TEMP. REG.COOLING, 77-
Gross weight
1.739 Kilogram
Net weight
1.739 Kilogram
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
ETA VA 1.54/18952
Capillary tube length [m]
0 m
Cavitation factor
0.4
Cone /seat sealing material
NBR / DZR brass BS 2872 / CZ132
Connection size
NPT 3/4
Connection types
Internal thread
Contain batteries
No
Description
3/4# NPT. BRASS TEMP. REG.COOLING, 77-
Diameter [mm]
20 mm
Differential pressure range [bar] [Max]
10 bar
Flow characteristic
Linear
Function
Temp. controller
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Impulse tube material
Copper mat. No 2.0090
Kvs values [mÂł/h]
3.4 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
2 °C
Media temperature at sensor [°C] [Max]
90 °C
Medium alternative
Glycolic water up to 30%
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
16 bar
Product group
Temperature controllers
Rection time close [sec]
3 "
Rection time open [sec]
3 "
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
180 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature sensor mounting
Colder
Temperature setting range [°C] [Max]
60 °C
Temperature setting range [°C] [Min]
0 °C
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AVTB-RA
Valve body material
Brass CuZn40Pb2 W. no 2.0402
Valve cone material
NBR rubber
Valve seat material
Cr Ni steel W.no 1.4301
003N4007
AVTB, FJV, AVD(S)A Repair set DN20
003N0078
Spare part, AVTB; AVTA, Thermostatic element
003N0520
Spare part, AVTB; FJVA; AVTA, Plastic hand knob
003N7100
Thermo. operated water valve, AVTA 20, NPT, 3/4
003N0053
Water valves accessories, Accessory Sensor Pocket 3/4" NPT S.Steel
003N0056
Water valves accessories, Accessory Cap. Tube Gland 3/4" NPT
