003N8141
Part Number: 003N8141
Product Information
Extended Description

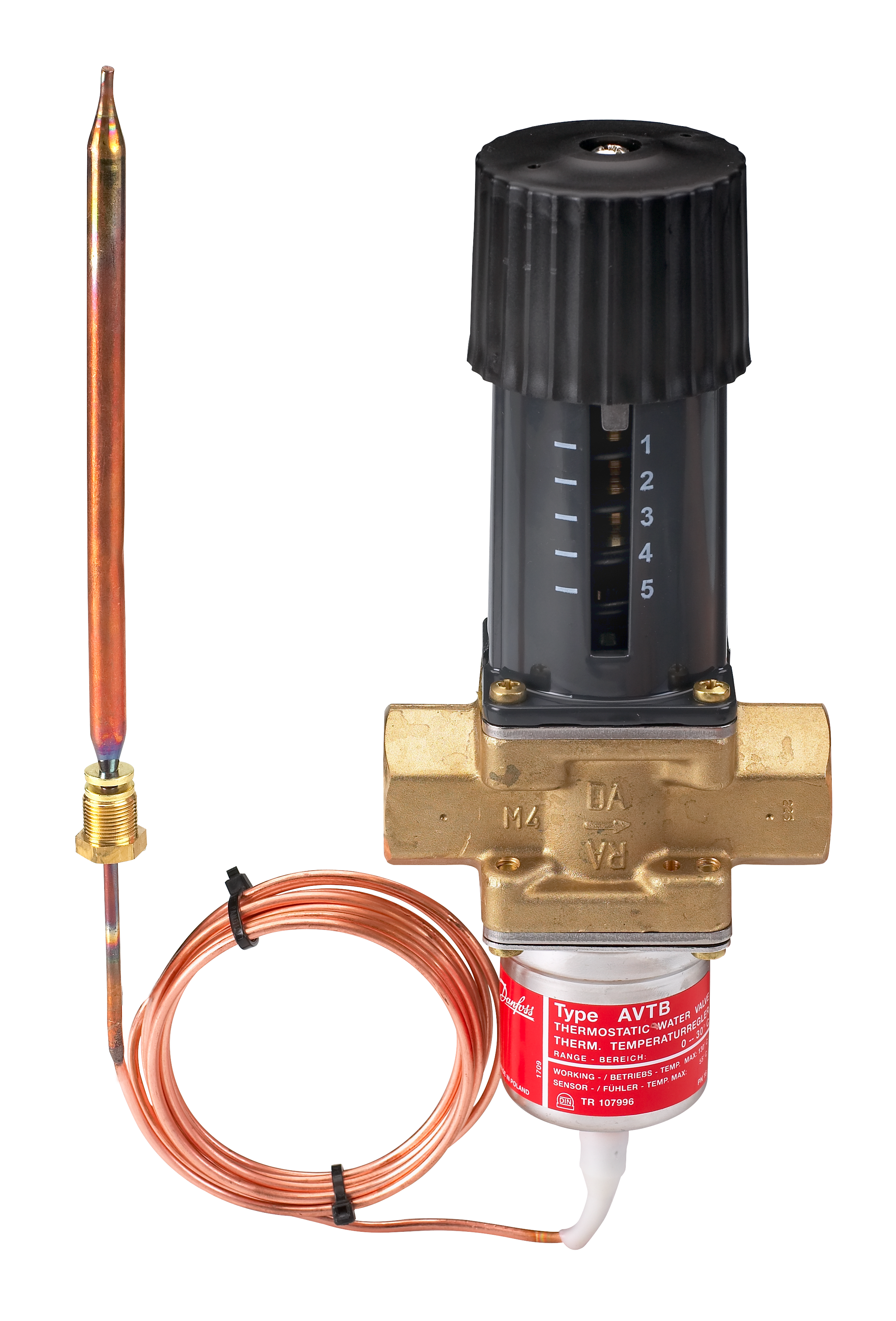

003N8141 Danfoss: AVTB 15 Thermostatic valve 30-100#C
Gross weight
1.578 Kilogram
Net weight
1.329 Kilogram
Volume
4.059 Liter
EAN
5702421100738
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
ETA VA 1.54/18952
Capillary tube length [m]
2.3 m
Cavitation factor
0.4
China RoHS compliance
Out of scope
Cone /seat sealing material
NBR / Brass W. No 2.0402
Connection size
Rp 1/2
Connection standard
ISO 7/1
Connection types
Internal thread
Contain batteries
No
Description
AVTB 15 Thermostatic valve 30-100#C
Diameter [mm]
15 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Linear
Flow control
No
Function
Temp. controller
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
Yes
Impulse tube material
Copper mat. No 2.0090
Kvs values [mÂł/h]
1.9 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
2 °C
Media temperature at sensor [°C] [Max]
130 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Temperature controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rection time close [sec]
25 "
Rection time open [sec]
25 "
Return limiter function
No
Sensor connection
M14x1 / R1/2 ext thread acc. DIN 2999
Temperature control
Yes
Temperature sensor diameter [mm]
9.5 mm
Temperature sensor length [mm]
150 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
100 °C
Temperature setting range [°C] [Min]
30 °C
Time constant [sec]
25 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AVTB
UK RoHS compliance
Out of scope
Valve body material
Brass CuZn40Pb2 W. no 2.0402
Valve cone material
NBR rubber
Valve seat material
Cr Ni steel W.no 1.4301
Valve size
DN 15
003N0131
AVTB, 30 °C - 100 °C, 150 mm, 2.3 m
003N4006
AVTB, FJV, AVD(S)A Repair set DN15
013U8102
AVTB RAVI/K Adapt. R1/2 M14x1 Gasket fi12.6/4 x 6
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
003N4022
AVTB Insulating disk
013U0290
Immersion pockets, For product type: AVTB, RAVI, 182 mm, Rp ½ / M14 x 1mm, Brass
003N0196
Water valves accessories, Accessory Sensor Pocket R 1/2" S.Steel
