003N8210
Part Number: 003N8210
Product Information
Extended Description

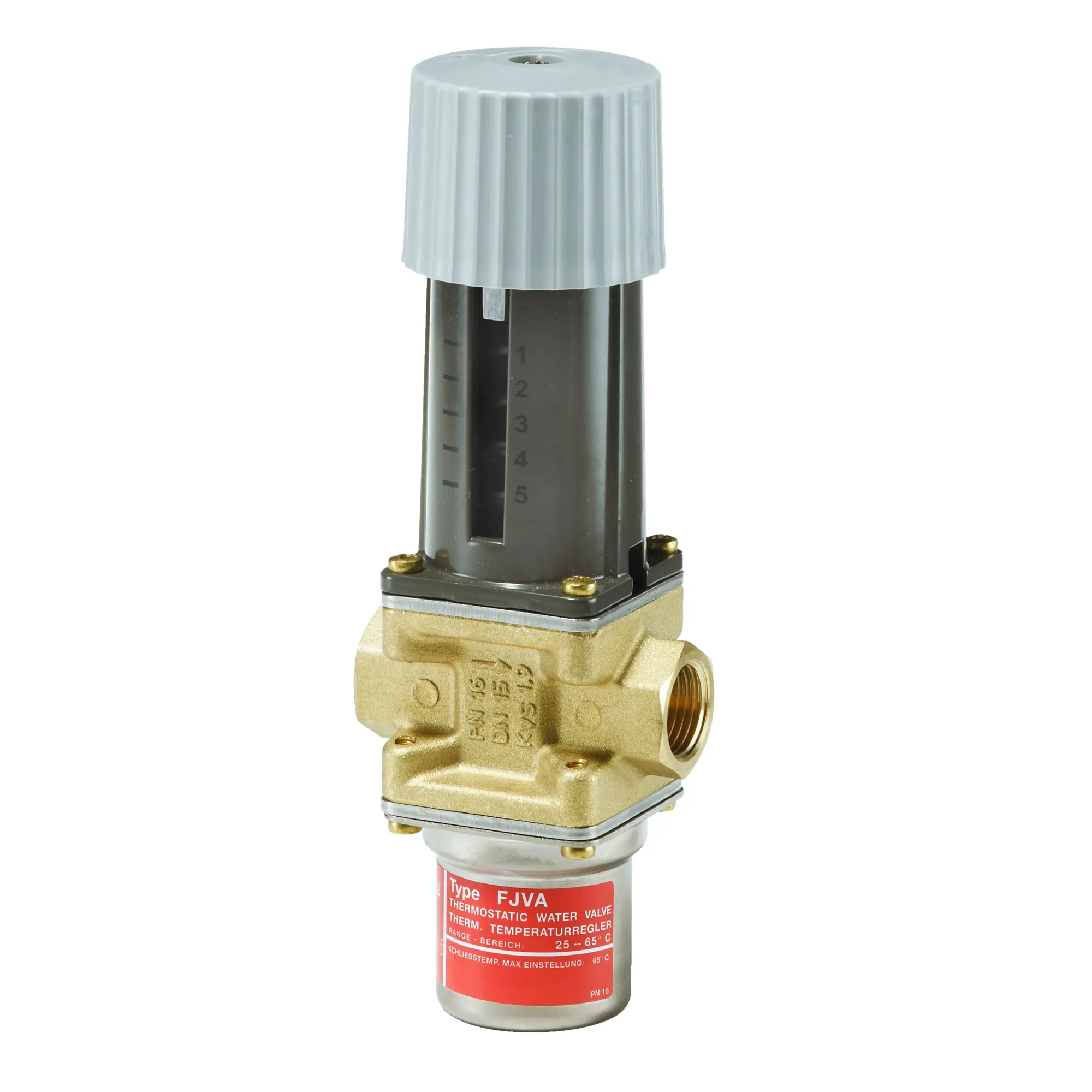

003N8210 Danfoss: Body material: Brass, Opening configuration: Opens on rising sensor temp.
Gross weight
1.372 Kilogram
Net weight
1.177 Kilogram
Volume
4.082 Liter
EAN
5702423004973
Approval
EAC,LLC CDC TYSK,PED,RoHS,RoHS China
Body material
Brass
Bypass (=C3=98) [in]
5/64 in
Bypass (=C3=98) [mm]
2 mm
China RoHS compliance
Yes
Connection Internal/External
Internal
Connection size [in]
1/2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
2.2 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
0 psi
EU RoHS compliance
Out of scope
Kv value [m=C2=B3/h]
1.9 m=C2=B3/h
Max. Working Pressure [bar]
16 bar
Max. Working Pressure [psig]
232 psig
Media
Neutral media
Medium temperature range [=C2=B0C] [max]
130 =C2=B0C
Medium temperature range [=C2=B0C] [min]
-25 =C2=B0C
Medium temperature range [=C2=B0F] [max]
266 =C2=B0F
Medium temperature range [=C2=B0F] [min]
-13 =C2=B0F
Opening configuration
Opens on rising sensor temp.
Orifice size [mm]
15 mm
Orifice size fraction [in]
3/5 in
Packing format
Multi pack
Product group
Water regulating valves
Product Name Description
Thermo. operated water valve
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
a698bb81-6c39-4d14-a29f-0fc686728af9
SCIP dossier product name
AVTA FJVA
Temperature range [=C2=B0C] [max]
30 =C2=B0C
Temperature range [=C2=B0C] [min]
0 =C2=B0C
Temperature range [=C2=B0F] [max]
86 =C2=B0F
Temperature range [=C2=B0F] [min]
32 =C2=B0F
Type
FJVA 15
UK RoHS compliance
Out of scope
