003N8218
Part Number: 003N8218
Product Information
Extended Description

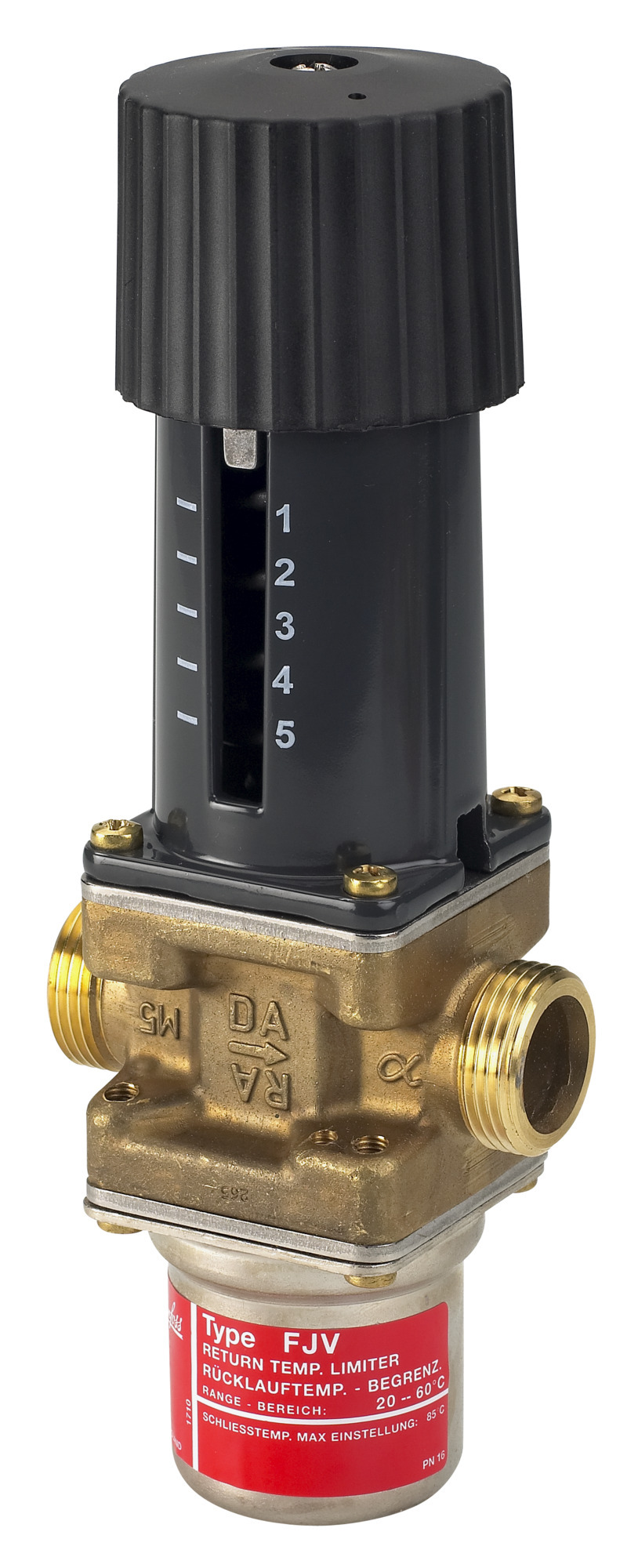

003N8218 Danfoss: FJV PN16 20/3,4 50-90 int Rp return
Gross weight
1.372 Kilogram
Net weight
1.303 Kilogram
Volume
4.12 Liter
EAN
5702421100875
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
ETA VA 1.54/18952
Capillary tube length [m]
0 m
Cavitation factor
0.4
Cone /seat sealing material
NBR / Brass W. No 2.0402
Connection size
Rp 3/4
Connection standard
ISO 7/1
Connection types
Internal thread
Contain batteries
No
Description
FJV PN16 20/3,4 50-90 int Rp return
Diameter [mm]
20 mm
Differential pressure range [bar] [Max]
10 bar
EU RoHS compliance
Yes with exemptions
Flow characteristic
Linear
Function
Temp. limiter
Function VSP - P
No
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
3.4 mÂł/h
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Number of ports
2
Permissible media
District heating/cooling circulation water
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Temperature controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Temperature setting range [°C] [Max]
90 °C
Temperature setting range [°C] [Min]
50 °C
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
FJV
UK RoHS compliance
Out of scope
Valve body material
Brass CuZn40Pb2 W. no 2.0402
Valve cone material
NBR rubber
Valve seat material
Cr Ni steel W.no 1.4301
Valve size
DN 20
