003Z4041

Part Number: 003Z4041
003Z4041
Manufacturer
Danfoss
Part number
003Z4041
Category

Product Information

Extended Description

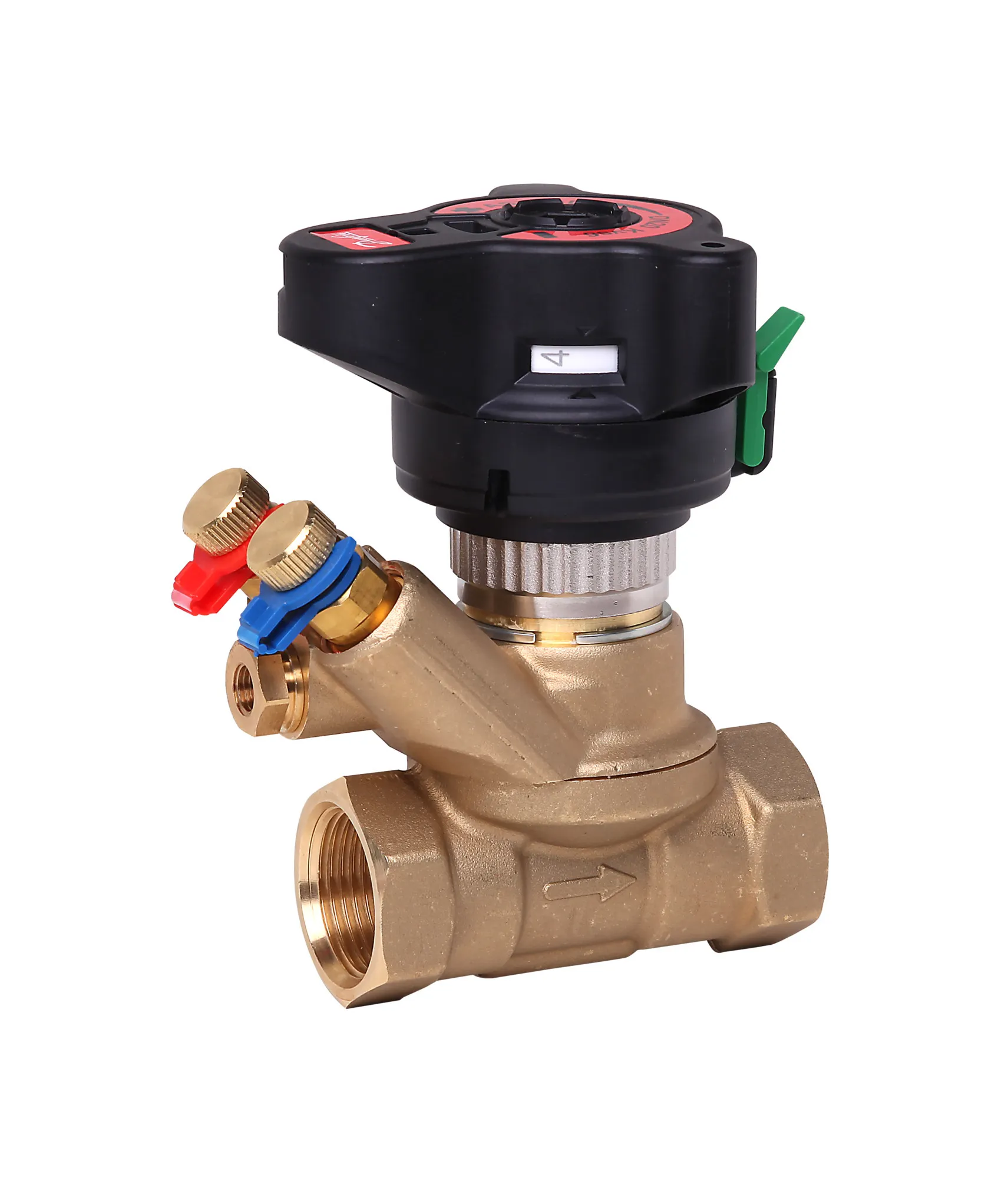

003Z4041 Danfoss: ASV-BD DN 15, Internal thread, shut-off valve
Gross weight
0.818 Kilogram
Net weight
0.806 Kilogram
Volume
2.189 Liter
EAN
5702420114620
China RoHS compliance
Out of scope
Connection types
Internal thread
Contain batteries
No
Description
ASV-BD DN 15, Internal thread, shut-off valve
Differential pressure over the valve [kPa] [Min]
10 KPa
Drain function
Optional via accessory
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow limitation
Yes
Kvs values [m=C2=B3/h]
3 m=C2=B3/h
Media temperature [=C2=B0C] [Max]
120 =C2=B0C
Media temperature [=C2=B0C] [Min]
-20 =C2=B0C
Mounting position
Supply pipe
Pressure class
PN 20
Product group
Automatic balancing
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
714d857a-c2dc-49c1-8985-18c8bb0d1890
SCIP dossier product name
"ASV-BD"
Setting scale
Yes
Shut-off function
Yes
Type
ASV-BD
UK RoHS compliance
Out of scope
Valve body material
DZR brass
Valve size
DN 15
003L8152
Impulse tube with O-rings, 1,5 m
003L8153
Impulse tube with O-rings, 5 m
003L8174
Plug for impulse tube connection (10 pcs.)
003L8175
O-ring for impulse tube (10 pcs.)
003Z0690
Impulse tube with O-rings, 2,5 m
003Z4652
Operating handle DN 15 - 50
003Z4781
Insulation cap MSV / ASV-BD DN 15
003Z4660
Identification tag and strips (10 pcs.)
