003Z5401
Part Number: 003Z5401
Product Information
Extended Description

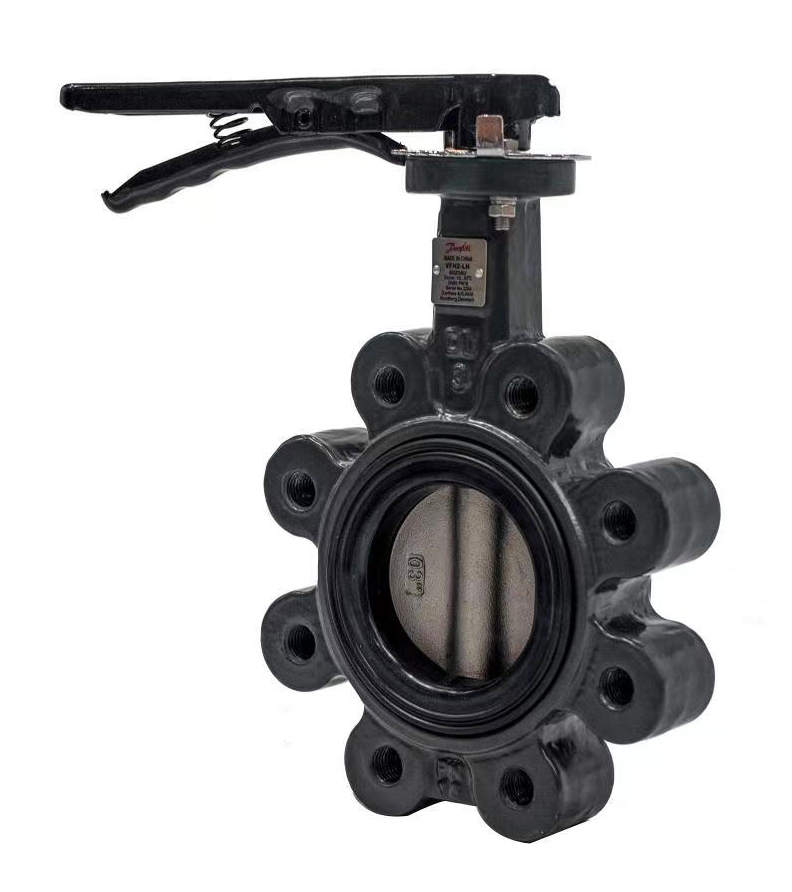

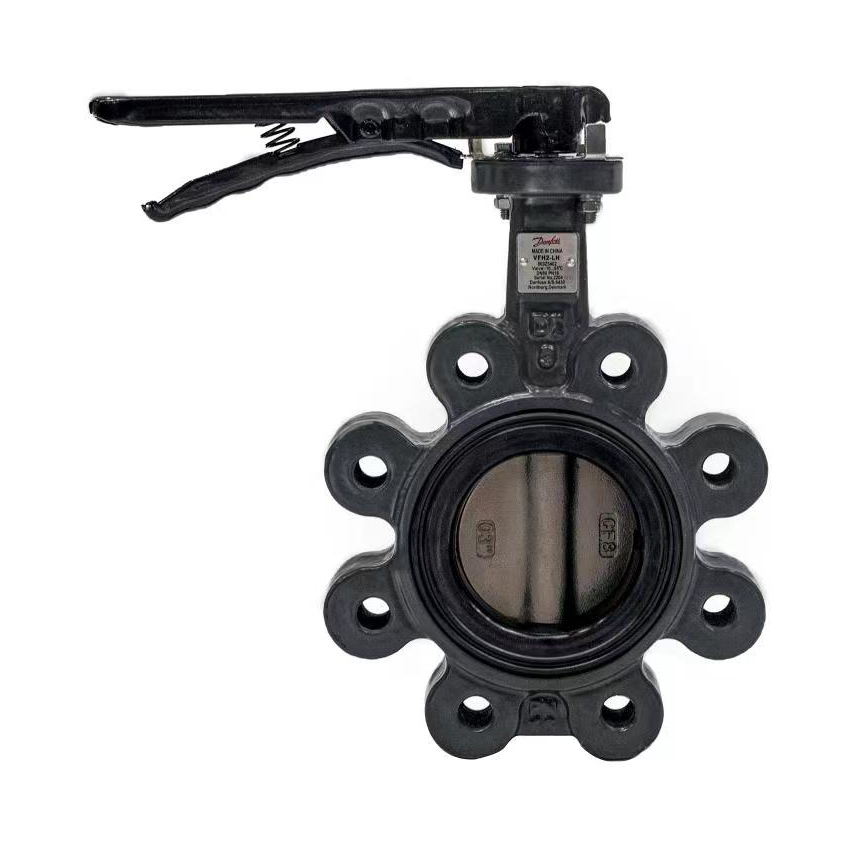

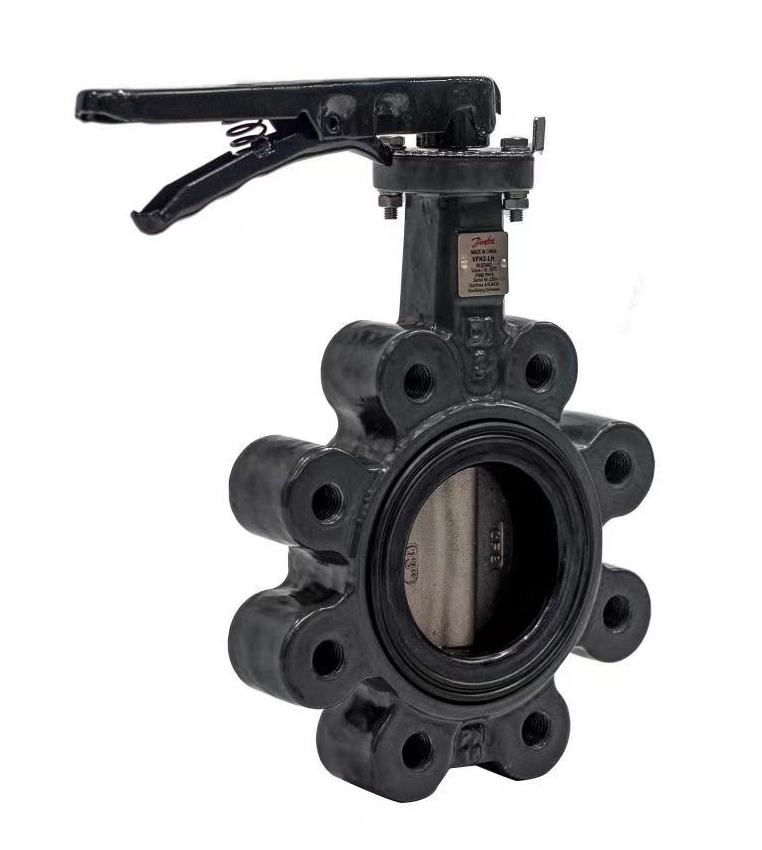

003Z5401 Danfoss: VFH2 -LH DN 65, Butterfly valve, Manual - handle, PN16
Gross weight
3.74 Kilogram
Net weight
3.74 Kilogram
EAN
5715162466506
Application
Heating and cooling
Connection types
Lug
Contain batteries
No
Description
VFH2 -LH DN 65, Butterfly valve, Manual - handle, PN16
Differential pressure [bar] [max]
16 bar
Kvs values [m=C2=B3/h]
207 m=C2=B3/h
Leakage rate [% Kvs]
Leakage rate A
Media temperature [=C2=B0C] [Max]
95 =C2=B0C
Media temperature [=C2=B0C] [Min]
-10 =C2=B0C
Medium alternative
Glycolic water up to 50%
Operating torque [Nm]
50 N-m
Operation type
Handle
Position indicator
Yes
Pressure class
PN 16
Product group
Butterfly valves
Rotation angle [=C2=B0]
90 =C2=B0
Type
VFH2-LH
Valve body material
Ductile iron (DIN GGG40)
Valve disc material
Stainless Steel
Valve size
DN 65
Valve type
Manual butterfly valve
