004B1012

Part Number: 004B1012
004B1012
Manufacturer
Danfoss
Part number
004B1012
Category

Product Information

Extended Description

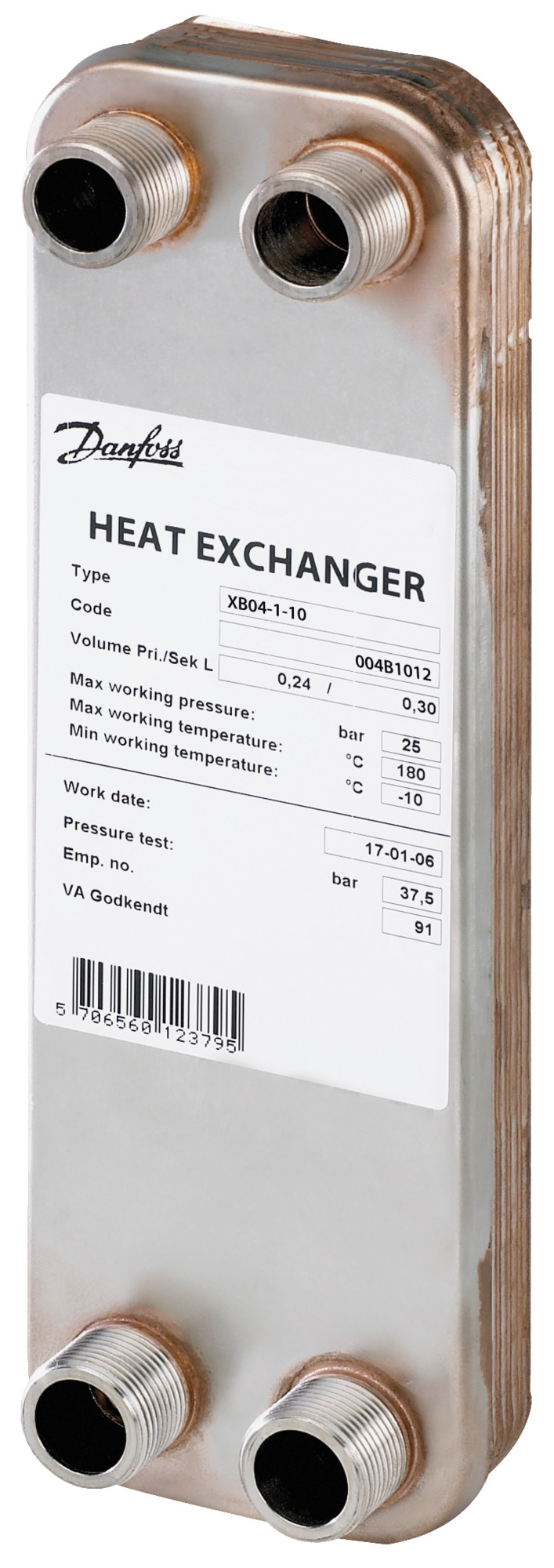

004B1012 Danfoss: 16 bar, Brazing material: Copper
Gross weight
1.76 Kilogram
Net weight
1.373 Kilogram
Volume
5.628 Liter
EAN
5706560368943
Approval
PED
Brazing material
Copper
China RoHS compliance
Yes
Connection length 1 [mm]
20 mm
Connection length 2 [mm]
20 mm
Connection length side 1 [mm]
20 mm
Connection length side 2 [mm]
20 mm
Connection size 1
3/4
Connection size 2
3/4
Connection standard
DIN ISO 228/1
Connection type 1
G
Connection type 2
G
Contain batteries
No
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
2
Horizontal center porthole[mm]
45 mm
In scope of WEEE
No
Manufacturer's name
DANFOSS A/S
Material Description (Short Te
XB04-1 10 G 3/4Ax20mm
Max working pressure 1 [bar]
16 bar
Max working pressure 2 [bar]
16 bar
Number of passes
1
Number of plates
10
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
1.4404
Product group
Heat exchangers
Product Name Description
Brazed plate heat exchanger
Quantity per packing format
1 pc
REACH Candidate List substances
No
Temperature range [=C2=B0C] [max]
180 =C2=B0C
Temperature range [=C2=B0C] [min]
-10 =C2=B0C
Total height without feet [mm]
296 mm
Total width [mm]
93 mm
Type
XB04-1
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS exemption clause
No
Vertical center porthole 1[mm]
248 mm
Vertical center porthole 2[mm]
248 mm
Vertical center porthole side 1 [mm]
248 mm
Volume per channel 1 [l]
0.06 L
Volume per channel 2 [l]
0.06 L
Making applications future proof, all our knowledge =E2=80=93 is now yours EnFusion brazed plate heat exchanger BPHE Brazed plate heat exchangers Guidelines for water quality in Danfoss brazed heat exchangers with plates of EN 1.4404 Ultra-efficient brazed heat exchangers for your district energy applications E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Braze Plate Heat Exchangers - Not Dual Use Micro Plate Heat Exchangers - Not dual use Kiwa K 48268-11 SVGW 0409-4877 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 BV CE-0062-PED-H-DAF 001-24-DNK Danfoss UK BF248486516865en.000101.03223 Brazed heat exchanger type XB 04-1-10 Brazed heat exchanger type XB 04-1-10 Brazed heat exchanger type XB 04-1-10
