004B6207

Part Number: 004B6207
004B6207
Manufacturer
Danfoss
Part number
004B6207
Category

Product Information

Extended Description

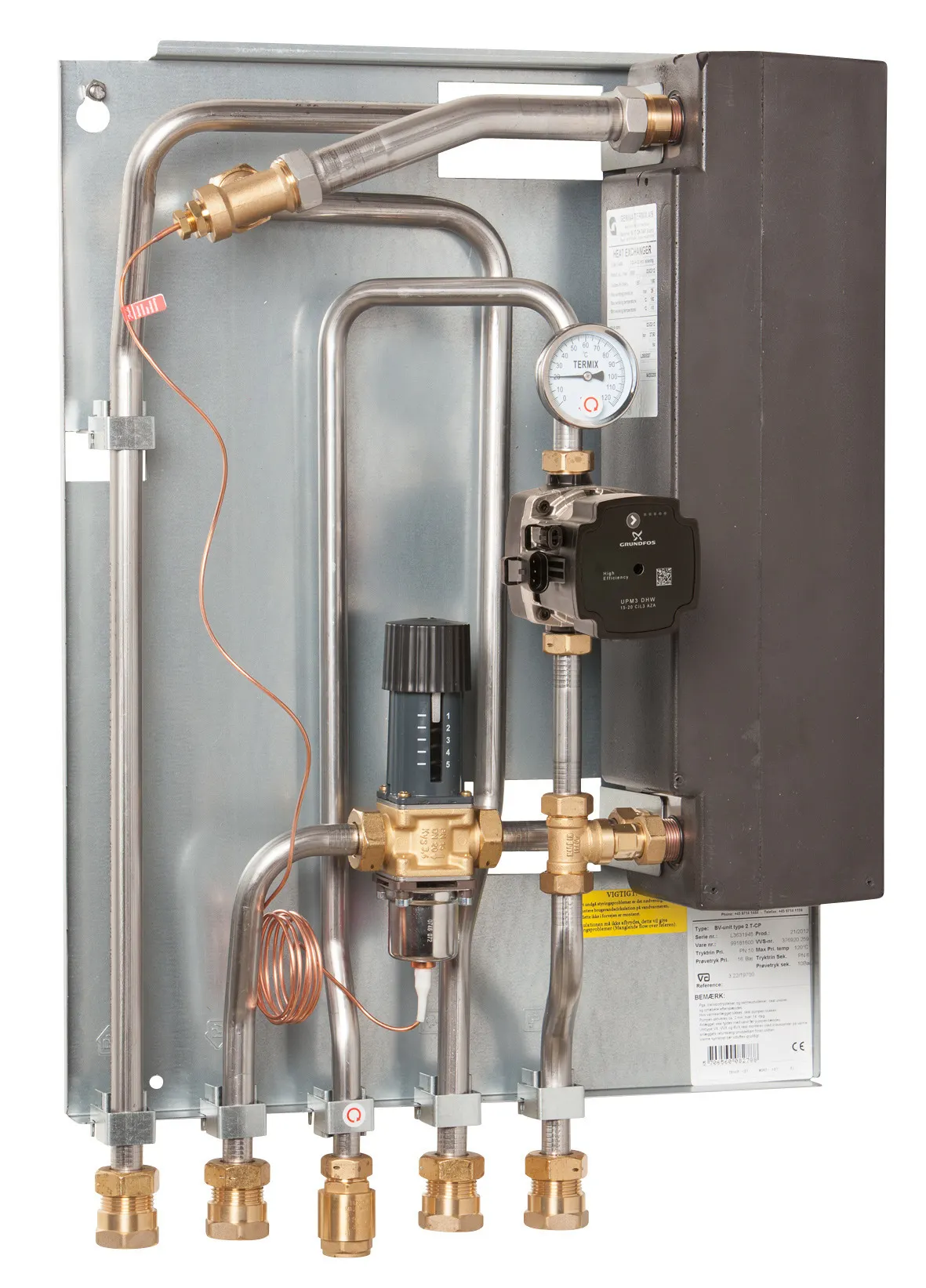

004B6207 Danfoss: Product Type: Termix BV T, Type 3 T-CP, 16 bar, 110 °C, AVTB
Gross weight
27 Kilogram
Net weight
25 Kilogram
EAN
5706560673009
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
360 mm
Depth without cover [mm]
240 mm
Description
Termix BV, type 3, T-CP
DH connection size
1"
DH connection type
G int. Thread
DH pipe size
Ø20
DHW circulation
Included
DHW connection size
1"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø20
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
800 mm
Height without cover [mm]
660 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
fd2fcee9-ccec-429d-80e5-bcbfc02a20da
Station size type
Type 3 T-CP
Supply temperature construction [˚C]
110 °C
Type
Termix BV T
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
540 mm
Width without cover [mm]
510 mm
144B3371
Circulation set
144B3941
Cover BL 7-8
144B3951
Cover for Termix BV/BL, Type 6
144B3952
Cover for Termix BV/BL, Type 2-5
144B3370
Safety valve
144B3950
Thermostatic circulation set
