004F4838

Part Number: 004F4838
004F4838
Manufacturer
Danfoss
Part number
004F4838
Category

Product Information

Extended Description

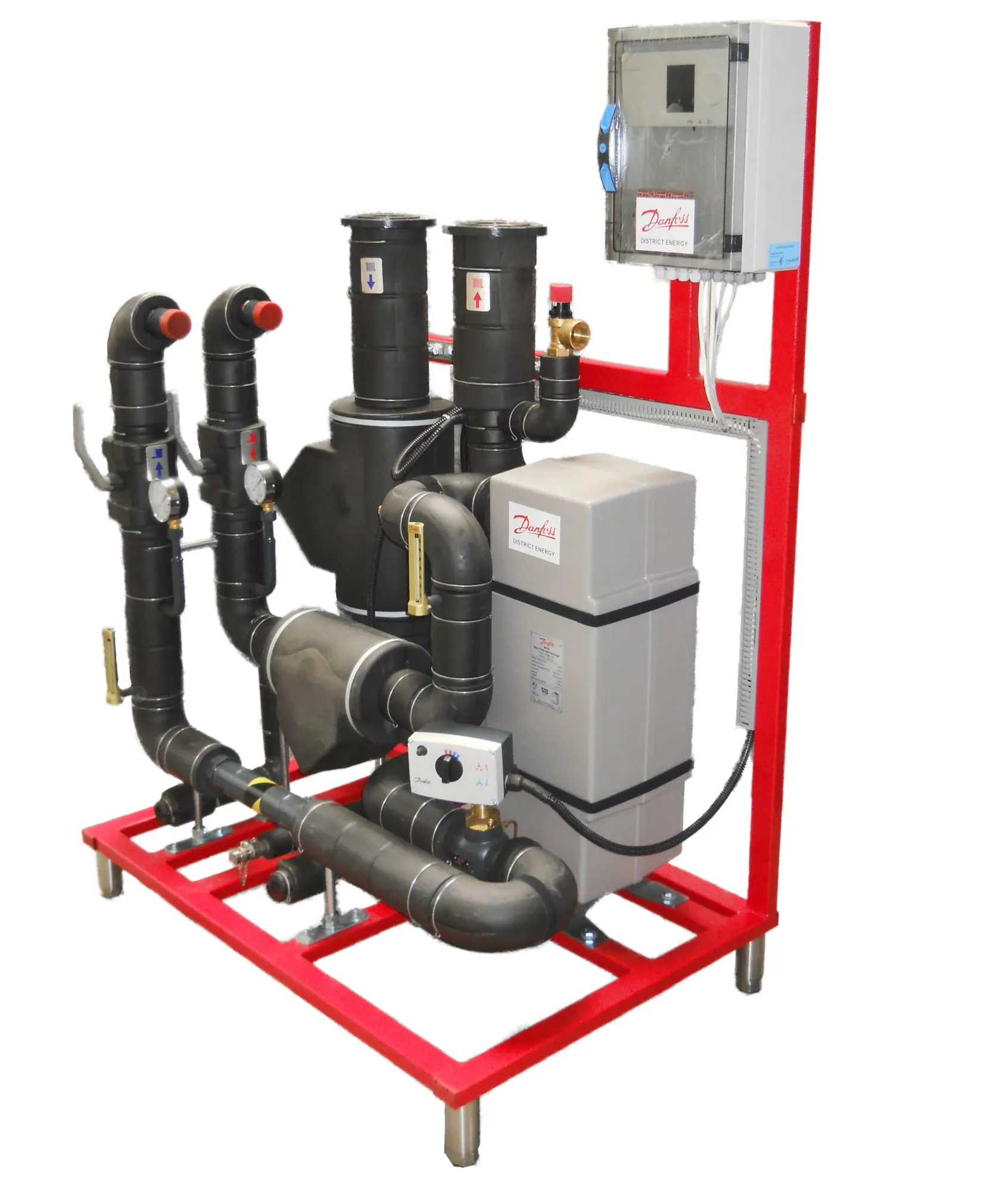

004F4838 Danfoss: DSP1 MAXI-PD-22 HT I300
Gross weight
147 Kilogram
Net weight
147 Kilogram
EAN
5715162746684
Allowed temperature [˚C] [Min]
2 °C
Application type
Indirect heating
Approval
CE
Category name
Indirect heating substations
CE evaluated
Yes
Connection direction primary and secondary
Up
Contain batteries
No
Cover material
Sheet Metal
Cover option
Yes
Delta P primary without heat meter [bar] [Min]
0.63 bar
Delta P secondary [bar] [Max]
0.22 bar
Depth with cover [mm]
1150 mm
Depth without cover [mm]
1150 mm
Description
DSP1 MAXI-PD-22 HT I300
Design
standing
DH connection size
48,3 mm
DH connection type
welded
DH pipe size
DN40
Differential pressure primary [bar] [Max]
16 bar
Fitting Piece
Insert primary return
Flow primary [m3/h] [Max]
8.2 m³/h
Flow secondary [m3/h] [Max]
15.8 m³/h
HE connection size
DN65
HE connection type
flange
HE pipe size
DN65
Heating control type
Electronic
Heating controller name
ECL310
Height with cover [mm]
1670 mm
Height without cover [mm]
1670 mm
HEX heating alloy
1.4404
HEX heating brazed/gasketed material
Brazed copper
Insulation material
PU Hard Foam
Manufacturer's name
Danfoss
Number of floor heating manifold connections
1
Number of heating manifold connections [loops] [Max]
1
Package depth [mm]
800 mm
Package height [mm]
1900 mm
Package width [mm]
1200 mm
PED category
II
Pressure nominal primary [bar]
25 bar
Pressure nominal secondary [bar]
6 bar
Pressure primary [bar] [Max]
22 bar
Pressure secondary [bar] [Max]
3 bar
Product group
Substations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor type heatmeter
muff 1/2"
Substation version
22 HT I300
Supply temperature construction [˚C]
140 °C
Supply voltage [V] AC
230 V
Type
DSP1 MAXI
Width with cover [mm]
750 mm
Width without cover [mm]
750 mm
