004F4865
Part Number: 004F4865
Product Information
Extended Description

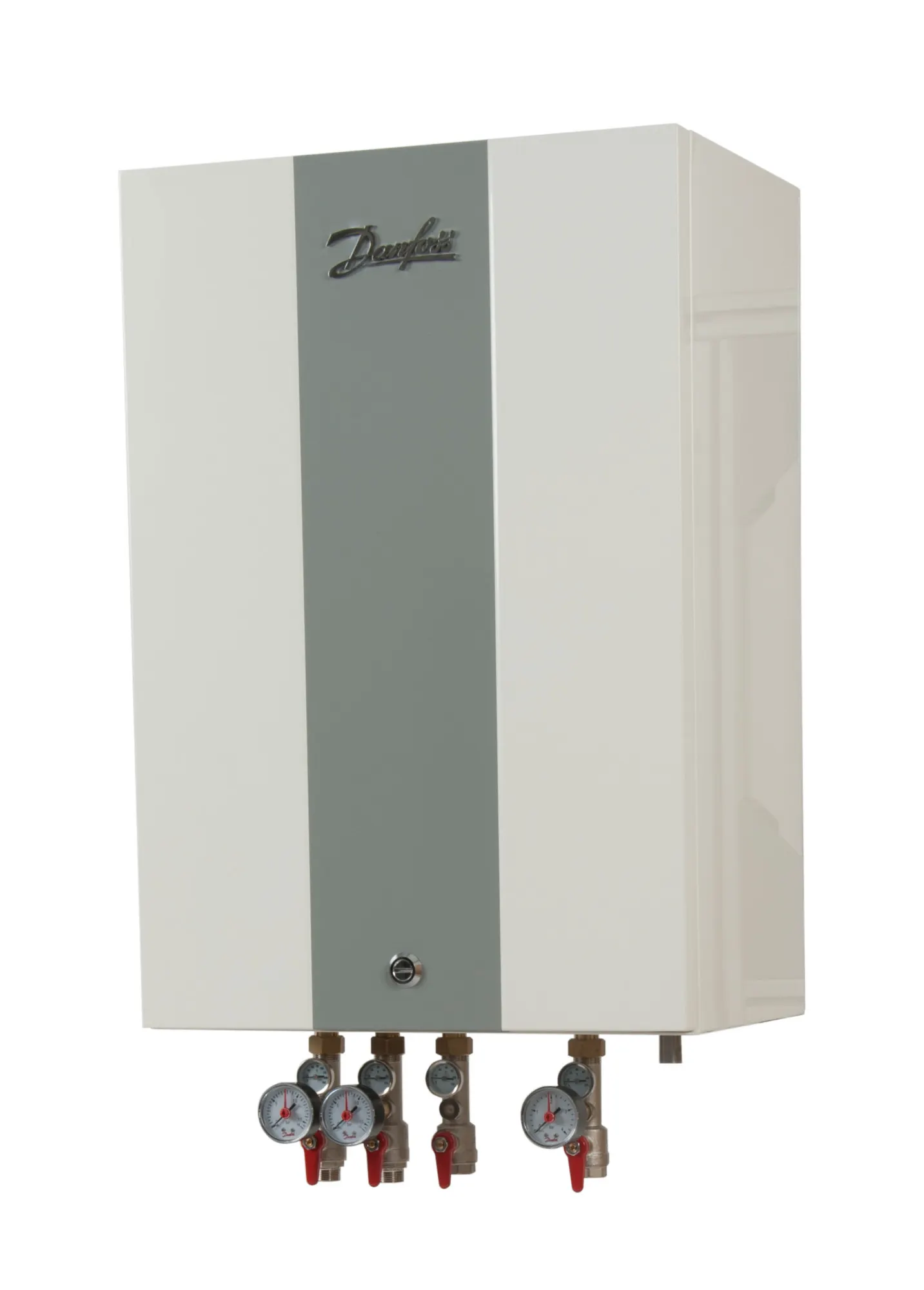

004F4865 Danfoss: Product Type: Unistat 1016 A, Type 2, 16 bar, 95 °C, ECL 310 / AVQM / AMV
Gross weight
60 Kilogram
Net weight
40 Kilogram
EAN
5715162745687
Application type
Indirect heating
Capacity [kW]
30 kW
Connection direction
Bottom
Contain batteries
No
Description
Danfoss Station Unistat 1016 A PN16 30KW LT ECL310 incl. fitting piece
DH connection size
3/4"
Differential pressure controller
Integrated
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW]
30 kW
Heating circuit - control
ECL 310 / AVQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV10
Heating HEX type
XB06H-1 36
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
Unistat 1016 A
