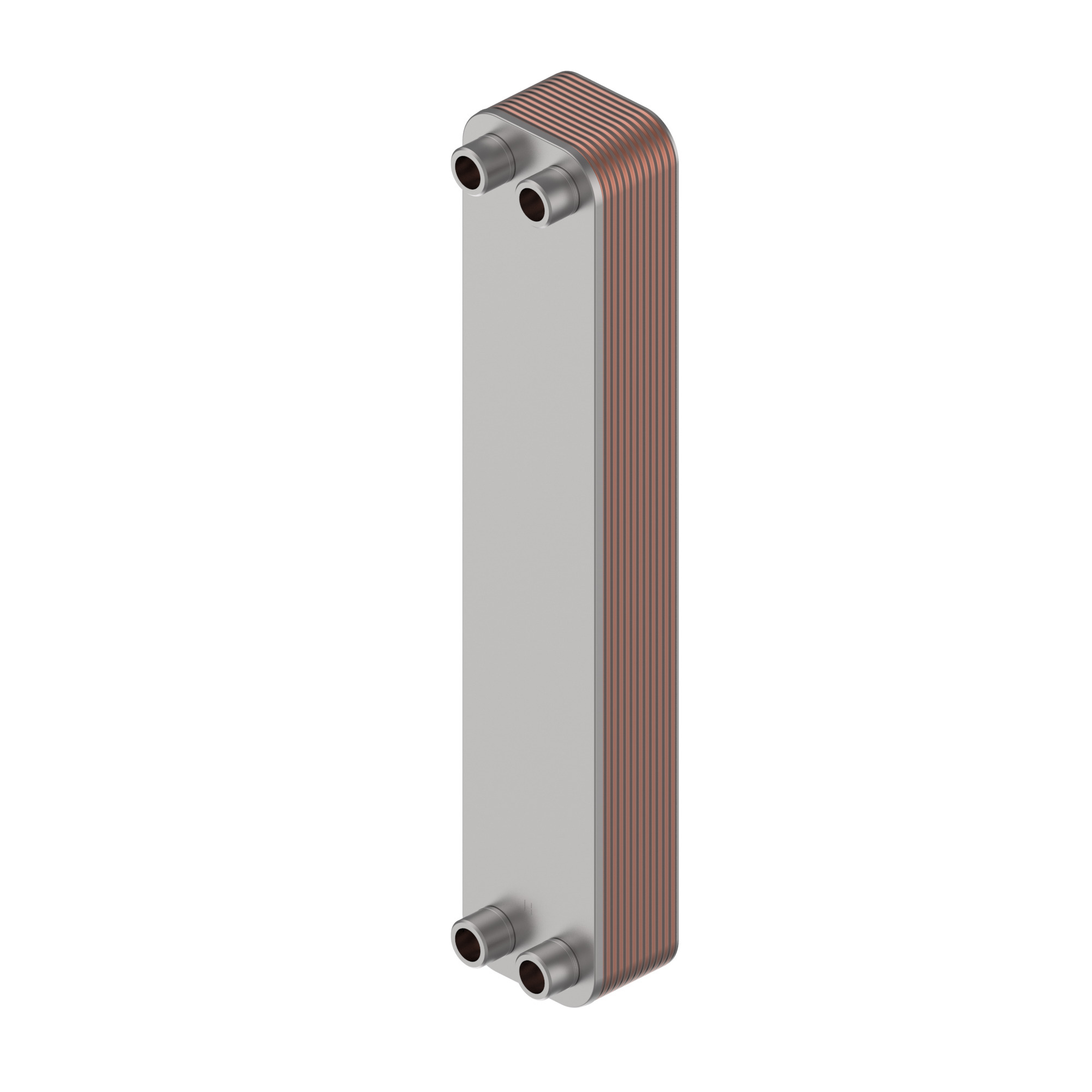

004H4324
Part Number: 004H4324
Product Information
Extended Description
004H4324 Danfoss: 25 bar, Brazing material: Copper
Gross weight
1.981 Kilogram
Net weight
1.78 Kilogram
Volume
7.9 Liter
EAN
5702425134135
Approval
PED
Brazing material
Copper
China RoHS compliance
Yes
Connection length 1 [mm]
20 mm
Connection length 2 [mm]
20 mm
Connection size 1
3/4
Connection size 2
3/4
Connection standard
ISO 228/1
Connection type 1
G
Connection type 2
G
Contain batteries
No
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
2
Horizontal center porthole[mm]
45 mm
In scope of WEEE
No
Material Description (Short Te
XB25H-1-8_2Cu_25_S1_2G3/4
Max working pressure 1 [bar]
25 bar
Max working pressure 2 [bar]
25 bar
Number of passes
1
Number of plates
8
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
1.4404
Plate pattern
H
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Quantity per packing format
1 pc
REACH Candidate List substances
No
Temperature range [=C2=B0C] [max]
180 =C2=B0C
Temperature range [=C2=B0C] [min]
-196 =C2=B0C
Total height without feet [mm]
491 mm
Total width [mm]
95 mm
Type
XB25H
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Vertical center porthole 1[mm]
442 mm
Vertical center porthole 2[mm]
442 mm
Volume per channel 1 [l]
0.059 L
Volume per channel 2 [l]
0.059 L
