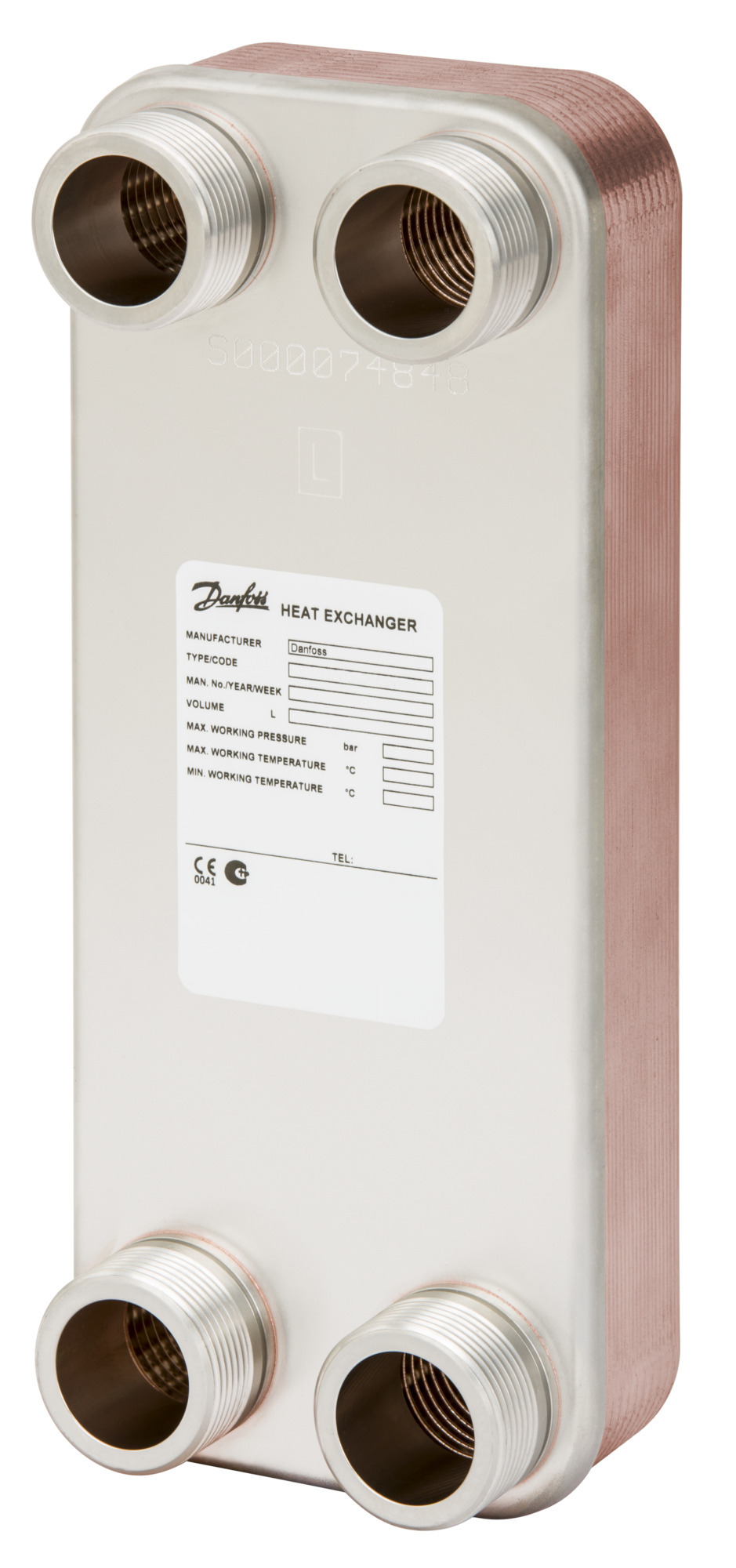

004H7550

Part Number: 004H7550
004H7550
Manufacturer
Danfoss
Part number
004H7550
Category

Product Information

Extended Description

004H7550 Danfoss: 25 bar, Brazing material: Copper
Gross weight
7.973 Kilogram
Net weight
7.6 Kilogram
Volume
4.94 Liter
EAN
5702425108853
Approval
PED
Brazing material
Copper
China RoHS compliance
Yes
Connection length 1 [mm]
25 mm
Connection length 2 [mm]
25 mm
Connection length side 1 [mm]
25 mm
Connection length side 2 [mm]
25 mm
Connection size 1
5/4
Connection size 2
5/4
Connection standard
ISO 228/1
Connection type 1
G
Connection type 2
G
Contain batteries
No
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
2
Horizontal center porthole[mm]
63 mm
In scope of WEEE
No
Manufacturer's name
Danfoss
Material Description (Short Te
XB12M-1-80_2Cu_25_S1_7G5/4
Max working pressure 1 [bar]
25 bar
Max working pressure 2 [bar]
25 bar
Number of passes
1
Number of plates
80
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
1.4404
Plate pattern
M
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Quantity per packing format
1 pc
REACH Candidate List substances
No
Temperature range [=C2=B0C] [max]
180 =C2=B0C
Temperature range [=C2=B0C] [min]
-196 =C2=B0C
Total height without feet [mm]
289 mm
Total width [mm]
118 mm
Type
XB12M-1
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Vertical center porthole 1[mm]
234 mm
Vertical center porthole 2[mm]
234 mm
Vertical center porthole side 1 [mm]
234 mm
Volume per channel 1 [l]
0.035 L
Volume per channel 2 [l]
0.035 L
003H6910
Weld-on tailpieces, PN 25, DN 25, G 1 1/4
004B1358
Tailpieces
004H4203
Insulation set
004H4205
Tailpieces
004H4206
Tailpieces
004H4211
Insulation set
004H4200
Mounting brackets
