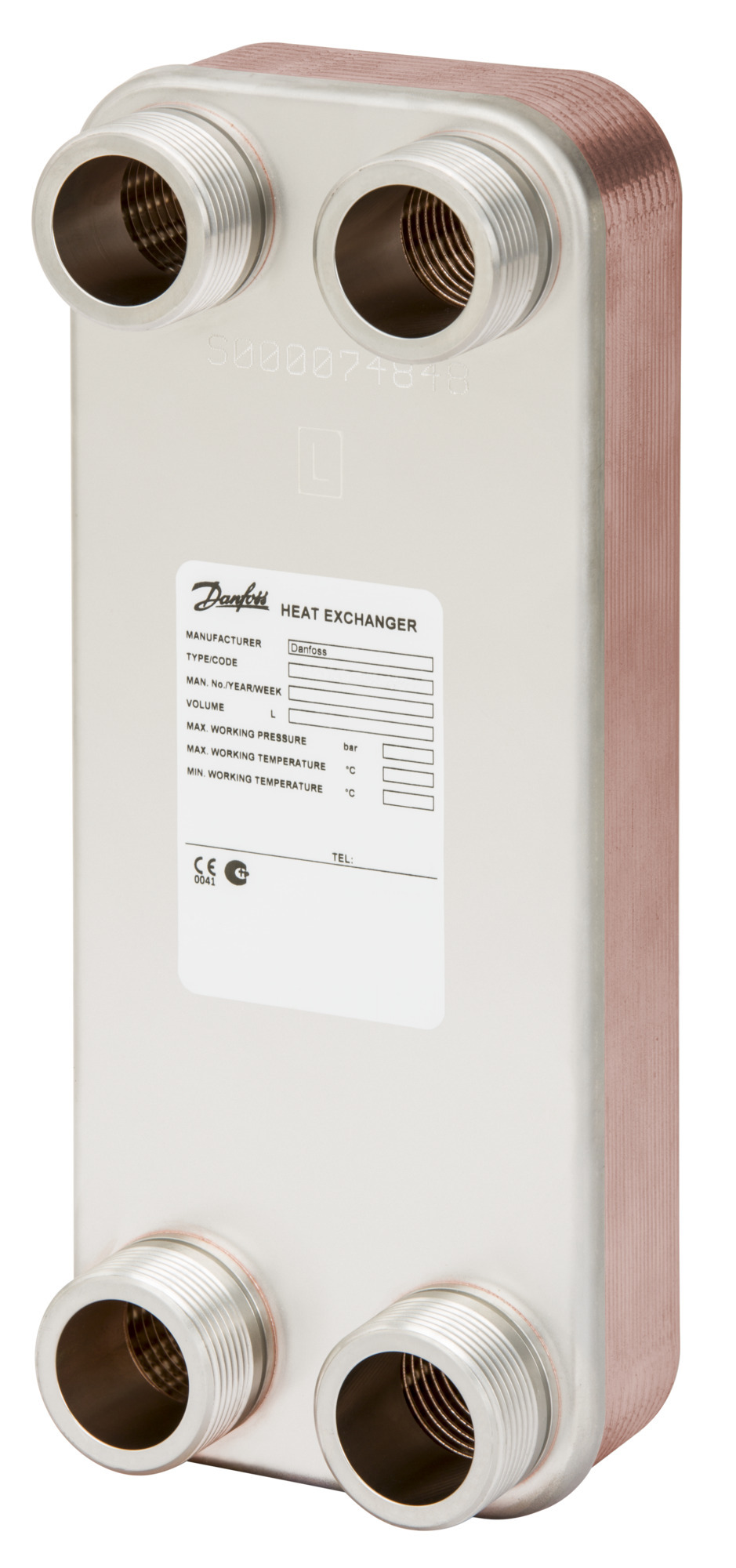

004H7682

Part Number: 004H7682
004H7682
Manufacturer
Danfoss
Part number
004H7682
Category

Product Information

Extended Description

004H7682 Danfoss: 25 bar, Brazing material: Copper
Gross weight
6.958 Kilogram
Net weight
6.75 Kilogram
Volume
4.94 Liter
EAN
5702425109850
Approval
PED
Brazing material
Copper
China RoHS compliance
Yes
Connection length 1 [mm]
20 mm
Connection length 2 [mm]
20 mm
Connection length side 1 [mm]
20 mm
Connection length side 2 [mm]
20 mm
Connection size 1
1
Connection size 2
1
Connection standard
ISO 228/1
Connection type 1
G
Connection type 2
G
Contain batteries
No
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
2
Horizontal center porthole[mm]
65 mm
In scope of WEEE
No
Manufacturer's name
Danfoss
Material Description (Short Te
XB12M-1-70_2Cu_25_S1_7G1
Max working pressure 1 [bar]
25 bar
Max working pressure 2 [bar]
25 bar
Number of passes
1
Number of plates
70
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
1.4404
Plate pattern
M
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Quantity per packing format
1 pc
REACH Candidate List substances
No
Temperature range [=C2=B0C] [max]
180 =C2=B0C
Temperature range [=C2=B0C] [min]
-196 =C2=B0C
Total height without feet [mm]
289 mm
Total width [mm]
118 mm
Type
XB12M-1
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Vertical center porthole 1[mm]
235 mm
Vertical center porthole 2[mm]
235 mm
Vertical center porthole side 1 [mm]
235 mm
Volume per channel 1 [l]
0.035 L
Volume per channel 2 [l]
0.035 L
003H6909
Weld-on tailpieces, PN 25, DN 20, G 1
004B2901
Tailpieces
004B2904
Tailpieces
004B2905
Tailpieces
004B2906
Tailpieces
004B2913
Tailpieces
004B2919
Mounting brackets
004H4202
Insulation set
004H4211
Insulation set
