004U3046
Part Number: 004U3046
Product Information
Extended Description

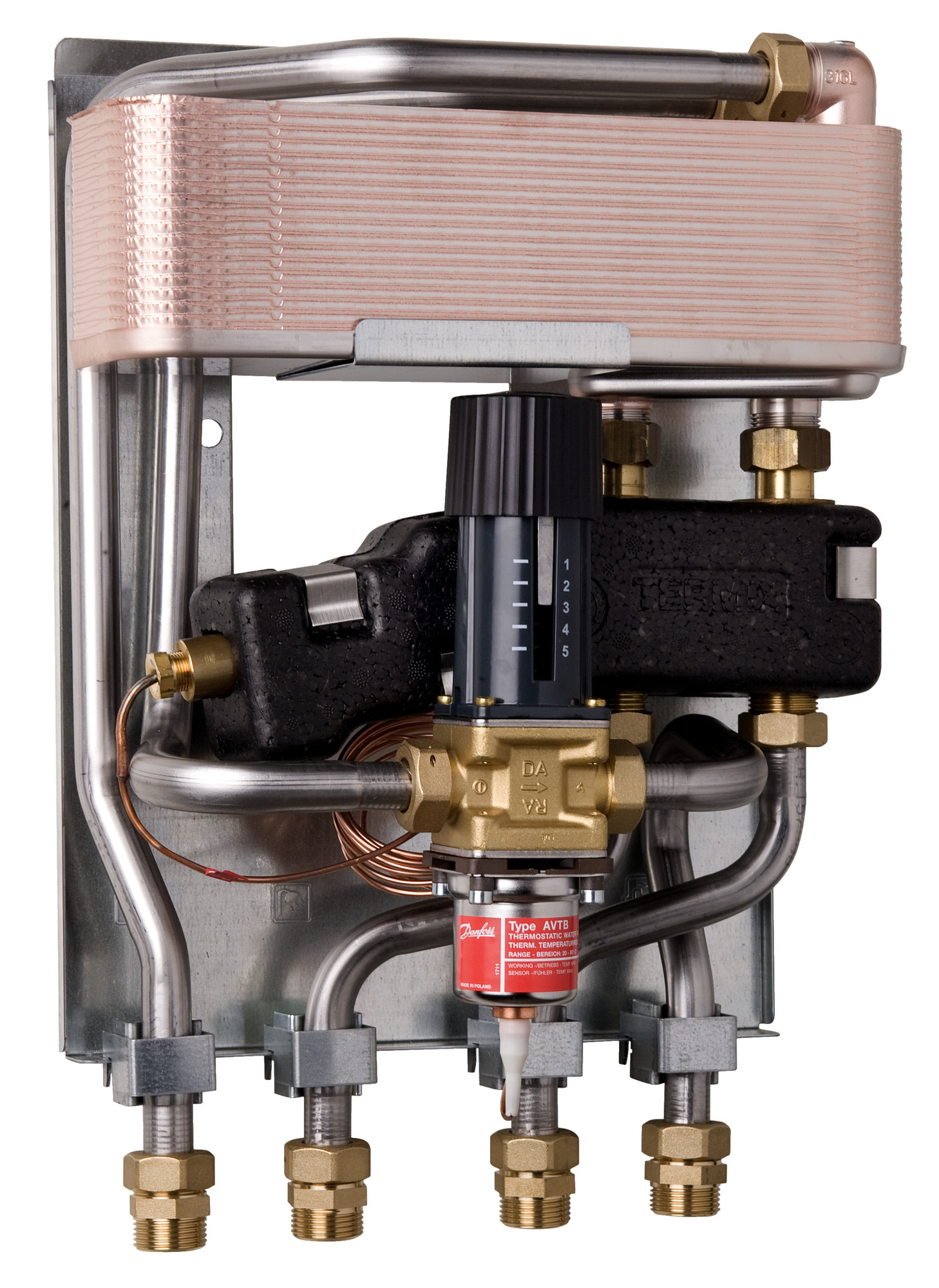

004U3046 Danfoss: Product Type: Termix One-B, Type 1, 16 bar, 100 °C, AVTB
Gross weight
10 Kilogram
Net weight
10 Kilogram
Volume
0.021 Cubic meter
EAN
5706560237164
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
Gray-lacquered steel sheet
Cover option
Included
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
165 mm
Depth without cover [mm]
155 mm
Description
Termix One, Type 1 with Cover
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G ext. thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
430 mm
Height without cover [mm]
428 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f3191fbd-6474-40a9-8fdd-5a8d8a107427
Station size type
Type 1
Supply temperature construction [˚C]
100 °C
Type
Termix One-B
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
315 mm
Width without cover [mm]
312 mm
