004U8281
Part Number: 004U8281
Product Information
Extended Description

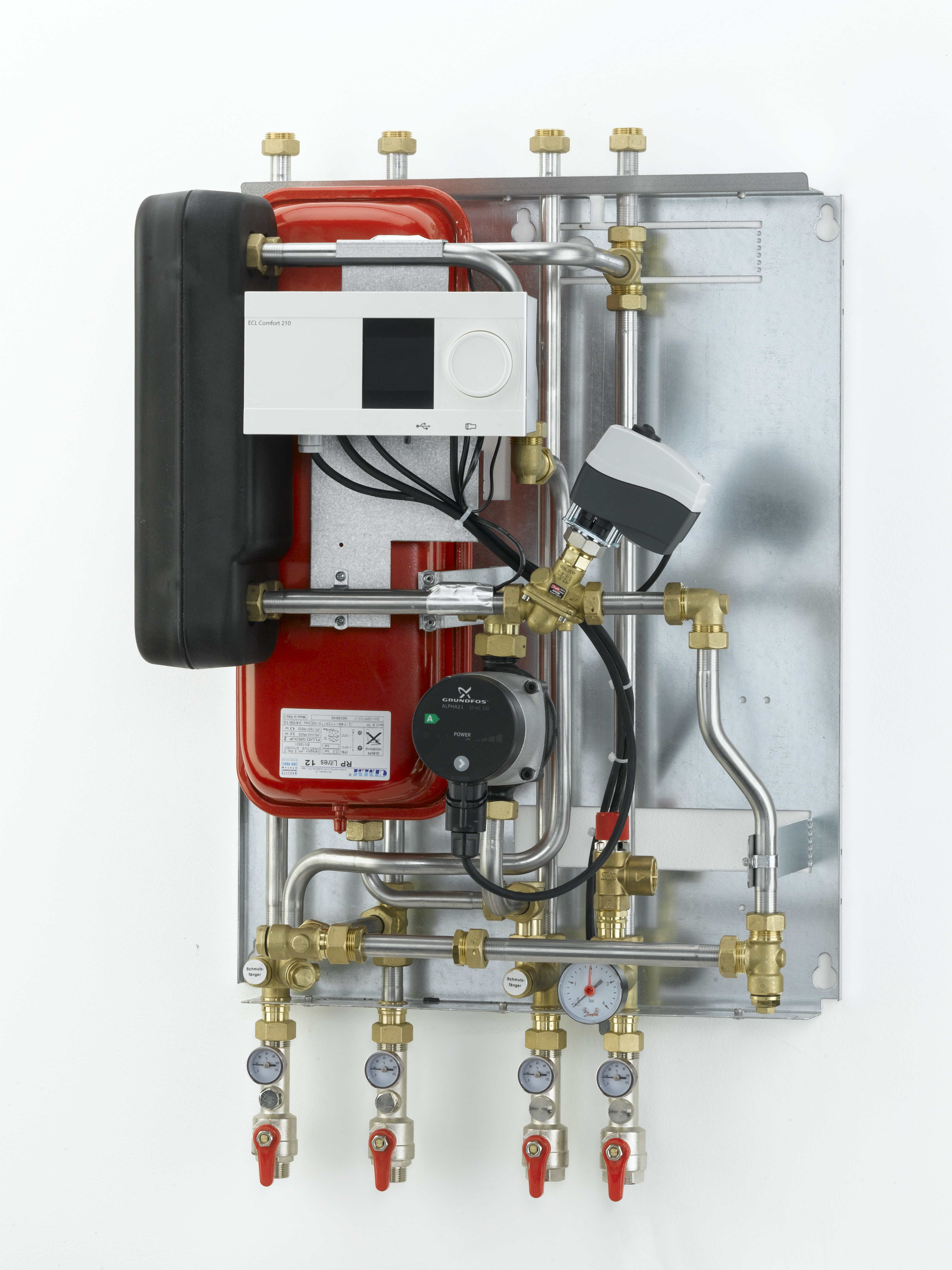

004U8281 Danfoss: Product Type: VX Solo II H, 1 HE circuit, Type 2, 16 bar, 110 °C, ECL 210 / AHQM / AMV
Gross weight
40 Kilogram
Net weight
38 Kilogram
EAN
5715162510438
Additional information
Cover,Safety function
Application type
Indirect heating
Capacity [kW]
30 kW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Included
Depth with cover [mm]
380 mm
Depth without cover [mm]
365 mm
Description
VX Solo II H type 2 with safety function
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fitting Piece
Energy meter return
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating circuit - control
ECL 210 / AHQM / AMV
Heating control type
Electronic
Heating controller name
ECL210
Heating HEX type
XB06H-1 40
Heating pump brand
Grundfos
Heating pump type
UPM3
Height with cover [mm]
861 mm
Height without cover [mm]
861 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Insulation material
Without
Number of households [Max]
1
Number of households [Min]
1
Package depth [mm]
620 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Remarks
Indir. HE, ECL210/A230, w. safety function
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
VX Solo II H, 1 HE circuit
Width with cover [mm]
550 mm
Width without cover [mm]
510 mm
