004U8285
Part Number: 004U8285
Product Information
Extended Description

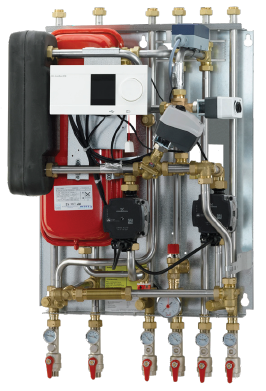

004U8285 Danfoss: Product Type: VX Solo II H2, 2 HE circuits, Type 2, 16 bar, 110 °C, ECL 210 / AHQM / AMV
Gross weight
45 Kilogram
Net weight
43 Kilogram
EAN
5715162510452
Additional information
Cover,Pipe insulation,Safety function
Application type
Indirect heating
Capacity [kW]
30 kW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Included
Depth with cover [mm]
380 mm
Depth without cover [mm]
365 mm
Description
VX Solo II H2 type 2 with insulated pipes
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW pipe size
Ø18
Fitting Piece
Energy meter return
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating circuit - control
ECL 210 / AHQM / AMV
Heating control type
Electronic
Heating controller name
ECL210
Heating HEX type
XB06H-1 40
Heating pump brand
Grundfos
Heating pump type
UPM3
Height with cover [mm]
861 mm
Height without cover [mm]
861 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Insulation material
Pipe insulation
Number of households [Max]
1
Number of households [Min]
1
Package depth [mm]
620 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
Remarks
Indir. HE, ECL210/260, safety function for FH and pipe insul.
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
VX Solo II H2, 2 HE circuits
Width with cover [mm]
550 mm
Width without cover [mm]
510 mm
003L3594
AHQM, PN 16, DN 15, Flow rate [m³/h]: 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8603
Kappe f/Akva Lux VX2
004U8634
Gasket 1" EDPM 282 (10 pcs)
065F6015
VMV M30, PN 16, DN 15, 2.50 m³/h, G 3/4 A, M30
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
082G3093
Electrical actuators, AMV 150, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3020
ECL Comfort 210, LCD dot matrix, Supply voltage [V] AC: 207 - 244
