004U8320

Part Number: 004U8320
004U8320
Manufacturer
Danfoss
Part number
004U8320
Category

Product Information

Extended Description

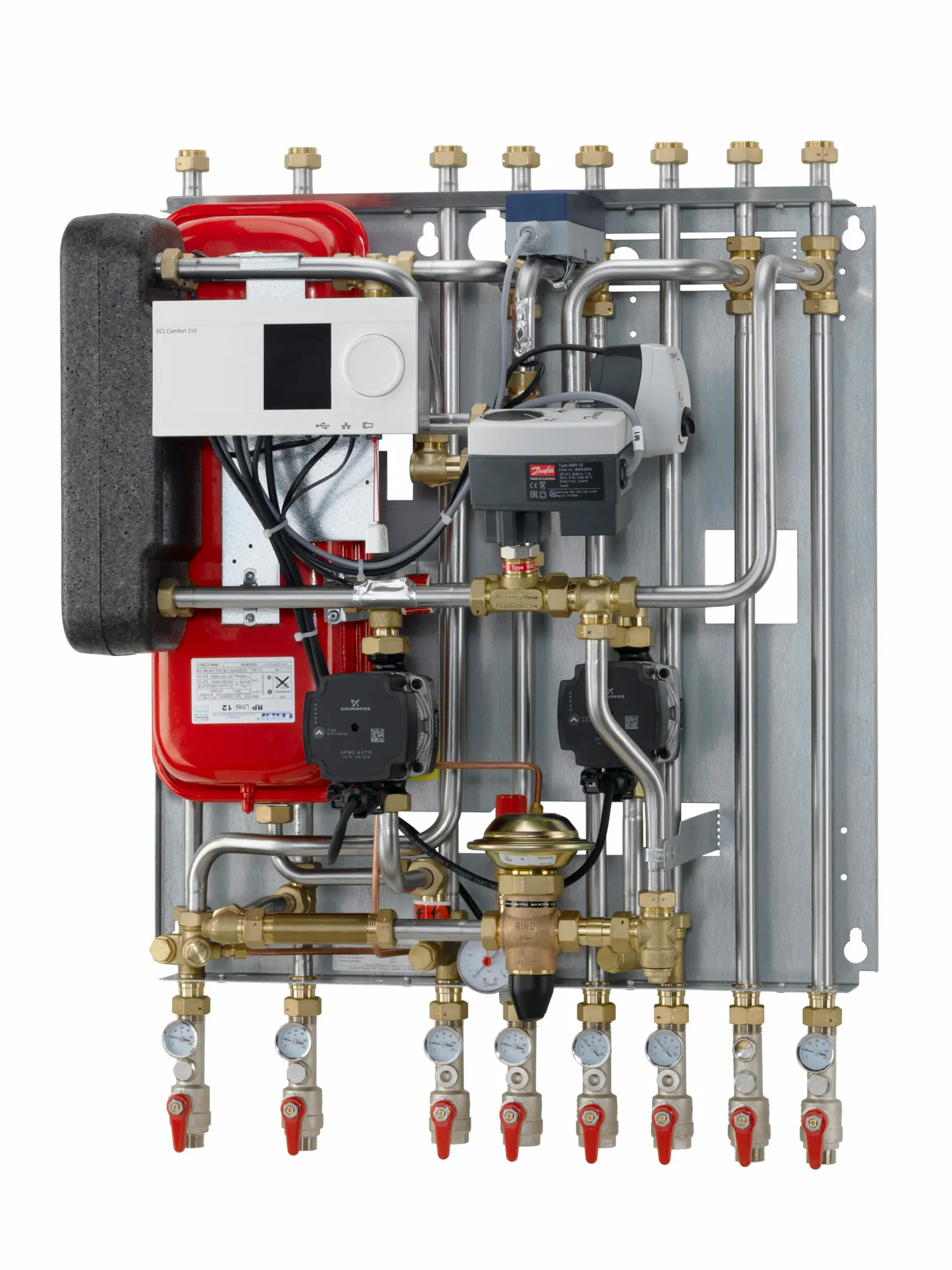

004U8320 Danfoss: Product Type: VX Solo II H2WS, 2 HE circ., sec. conn. f/cyl., Type 2, 16 bar, 110 °C, Motorized control valve, ECL310
Gross weight
45 Kilogram
Net weight
43 Kilogram
EAN
5715162510636
Additional information
Cover,Pipe insulation,Safety function
Application type
Indirect Heating & Secondary connections for DHW cylinder
Capacity [kW]
30 kW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Cover material
White-lacquered steel sheet
Depth with cover [mm]
380 mm
Depth without cover [mm]
365 mm
Description
VX Solo II H2WS, type 2 with insulated pipes
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW pipe size
Ø18
DHW pump brand
Grundfos
DHW pump type
UPM3
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fitting Piece
Energy meter return
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating circuit - control
Motorized control valve
Heating control type
Electronic
Heating controller name
ECL310
Heating HEX type
XB06H-1 40
Heating pump brand
Grundfos
Heating pump type
UPM3
Height with cover [mm]
861 mm
Height without cover [mm]
861 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Insulation material
Pipe insulation
Number of households [Max]
1
Number of households [Min]
1
Package depth [mm]
800 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Remarks
Indir.HE, sec. conn for cyl, ECL310/A367, 2 HE circ. Safety func.
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
VX Solo II H2WS, 2 HE circ., sec. conn. f/cyl.
Width with cover [mm]
700 mm
Width without cover [mm]
650 mm
